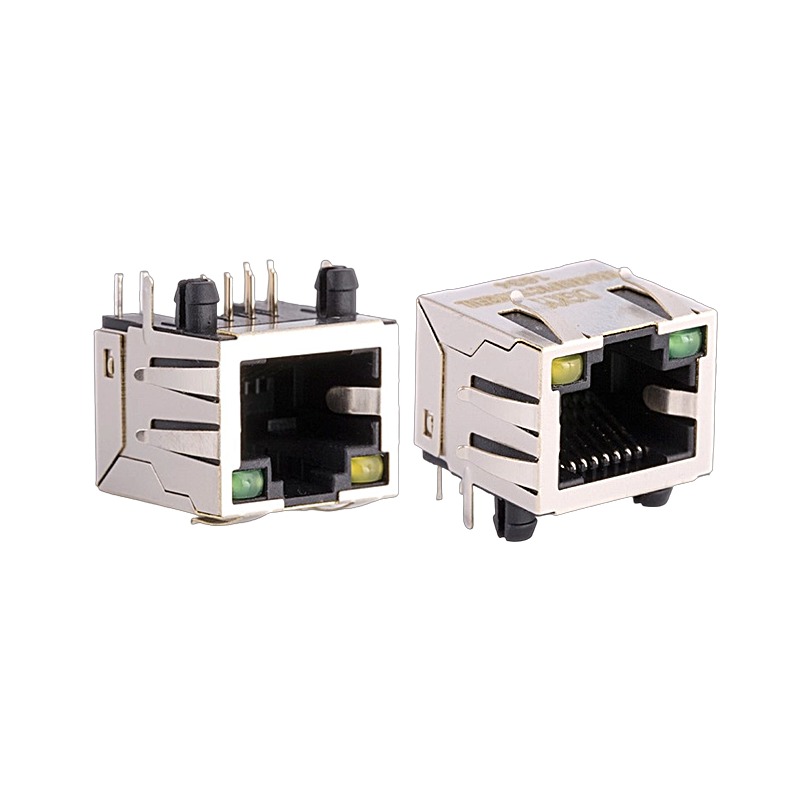

RJ45 Ethernet Connector 8P8C Single Port with LED 6u Gold Plating

الحد الأدنى لكمية :	1	الأسعار :	$0.19-0.32

مكان المنشأ:	قوانغدونغ ، الصين	رقم الموديل:	KRJ-56S8P8C1X1YGENL

معلومات تفصيلية
نوع الموصل:	RJ45	جنس:	أنثى
المواد السكنية:	PA46	الاتصال الطلاء:	الذهب 6u/15u/30u/50u
مادة الدرع:	سبائك النحاس مطلية مسبقًا بالنيكل	لون LED:	أخضر وأصفر
نمط مزلاج:	أعلى	عدد جهات الاتصال:	8
زاوية تثبيت PCB:	دخول جانبي	جبل ستايل:	من خلال ثقب
سرعة الأداء:	10/100/1000 Base-T	تكوين المنفذ:	أعزب
تكوين جاك:	1 × 1	محطات لكل ميناء:	8
اتصل بالمواد الأساسية:	الفوسفور البرونز
إبراز:	RJ45 Ethernet Connector 8P8C single port,RJ45 connector with LED indicator,gold plated RJ45 single port , RJ45 connector with LED indicator , gold plated RJ45 single port

منتوج وصف

High Quality 1x1 Single-Port 8P8C RJ45 Ethernet Connector LED Strip Shielding Plug & Jack Communication Interface with No Filter

Premium quality shielded RJ45 modular jack connector with LED indicators, designed for high-performance network applications. Features 8P8C configuration, panel grounding options, and gold-plated contacts for reliable connectivity.

Product Specifications

Part Number	KRJ-56S8P8C1X1YGENL
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China
Certification	IATF16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	Up
Filter	Without Filter
LED Option	With LED
LED Color	Green & Yellow
Panel Stops	With Panel Stops
Shielded	Yes
Applies To	Printed Circuit Board
Performance Speed	10/100/1000 BASE-T
Grounding Options	Panel Ground and PCB Ground
Port Configuration	Single
Number of Positions	8
Jack Configuration	1 x 1
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)

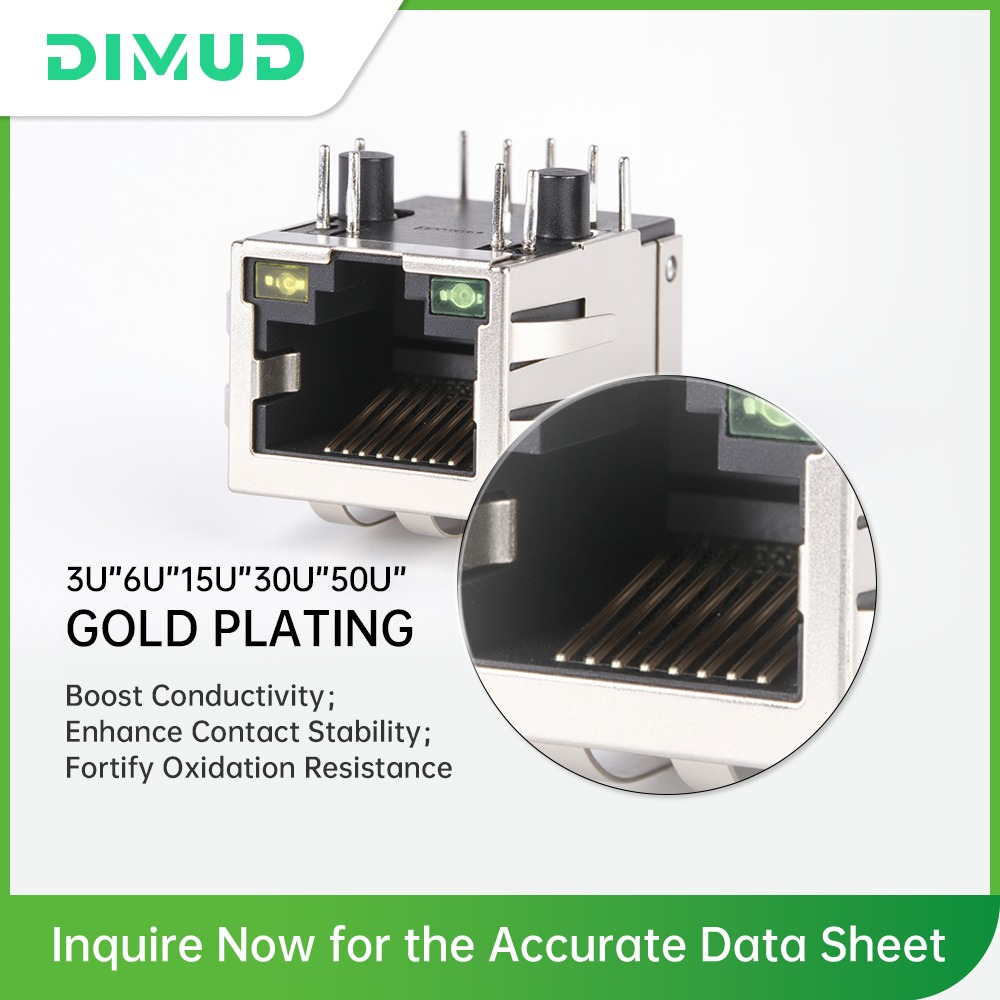

Contact Mating Area Plating Material	Gold 6u/15u/30u/50u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PA46
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0
