| الحد الأدنى لكمية : | قطعة واحدة | الأسعار : | Please contact us to get the latest price. |
|---|---|---|---|
| تفاصيل التغليف : | علبة كرتون | وقت التسليم : | 10 أيام |
| شروط الدفع : | T / T ، D / P ، D / A ، L / C ، ويسترن يونيون ، موني جرام | القدرة على العرض : | 100K جهاز كمبيوتر شخصى / يوم |
| مكان المنشأ: | دونغقوان الصين | اسم العلامة التجارية: | DGKYD |
|---|---|---|---|
| إصدار الشهادات: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | رقم الموديل: | DGKYD114Q070DB2A1D3 |
|
معلومات تفصيلية |
|||
| درع RJ45: | نعم.. | رقم المنفذ: | 4 ميناء |
|---|---|---|---|
| اسم المنتج: | RJ45 مع محول | النوع: | RJ45 أنثى |
| السكن: | الفينول ، PBT الأسود (UL94V-0) | لب من البلاستيك: | حشو الألياف الزجاجية PBT أسود (UL94V-0) ، بنفايات |
| درجة حرارة التخزين: | -40 درجة مئوية ~ + 85 درجة مئوية | عدد الغرز: | 8P10C |
| درجة حرارة العمل: | -40 درجة مئوية ~ +85 درجة مئوية | قادت: | أخضر / أصفر |
| إبراز: | RJ45 network connector With Transformer,quad port RJ45 network connector,RJ45 quad port network connector,quad port RJ45 network connector,RJ45 quad port network connector |
||
منتوج وصف

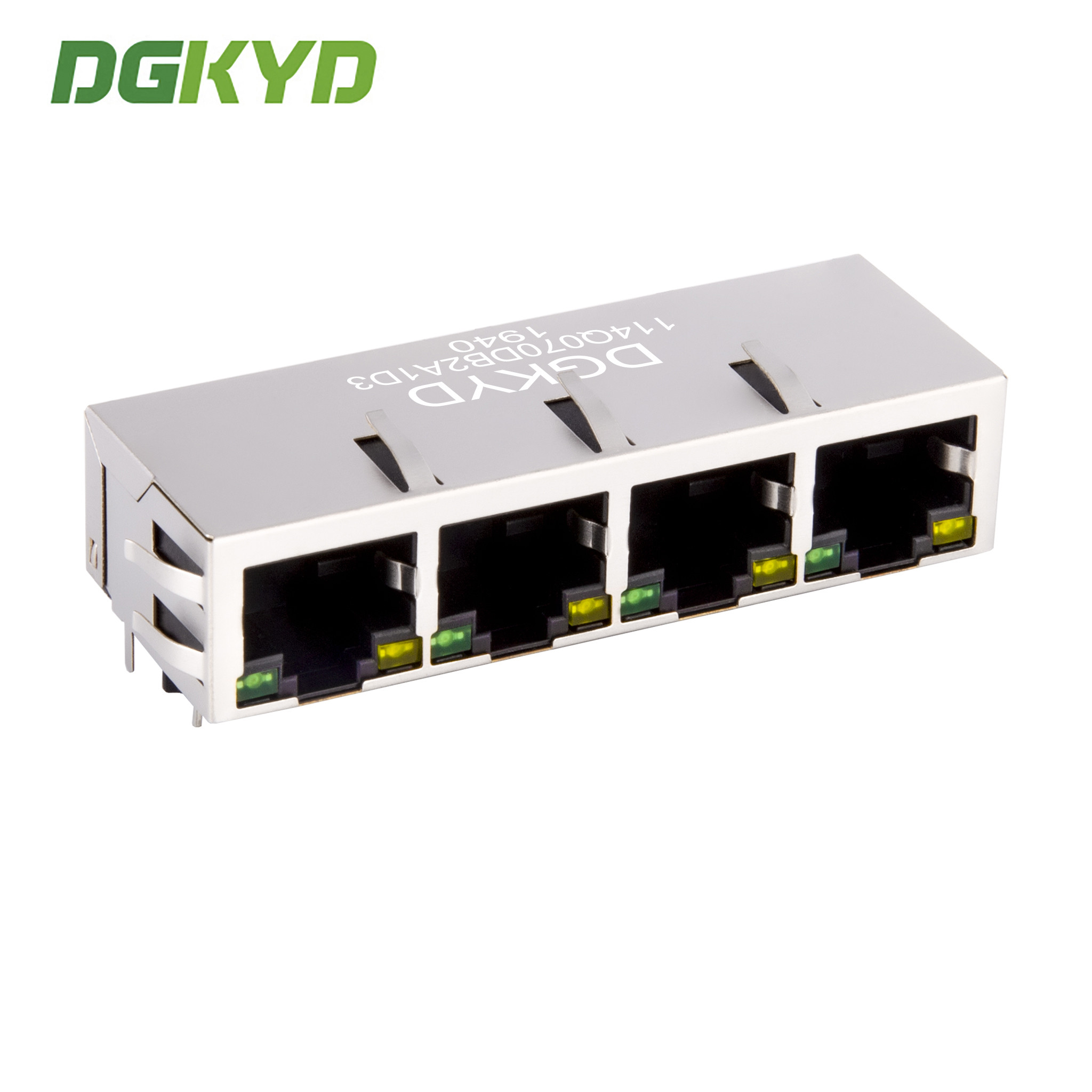

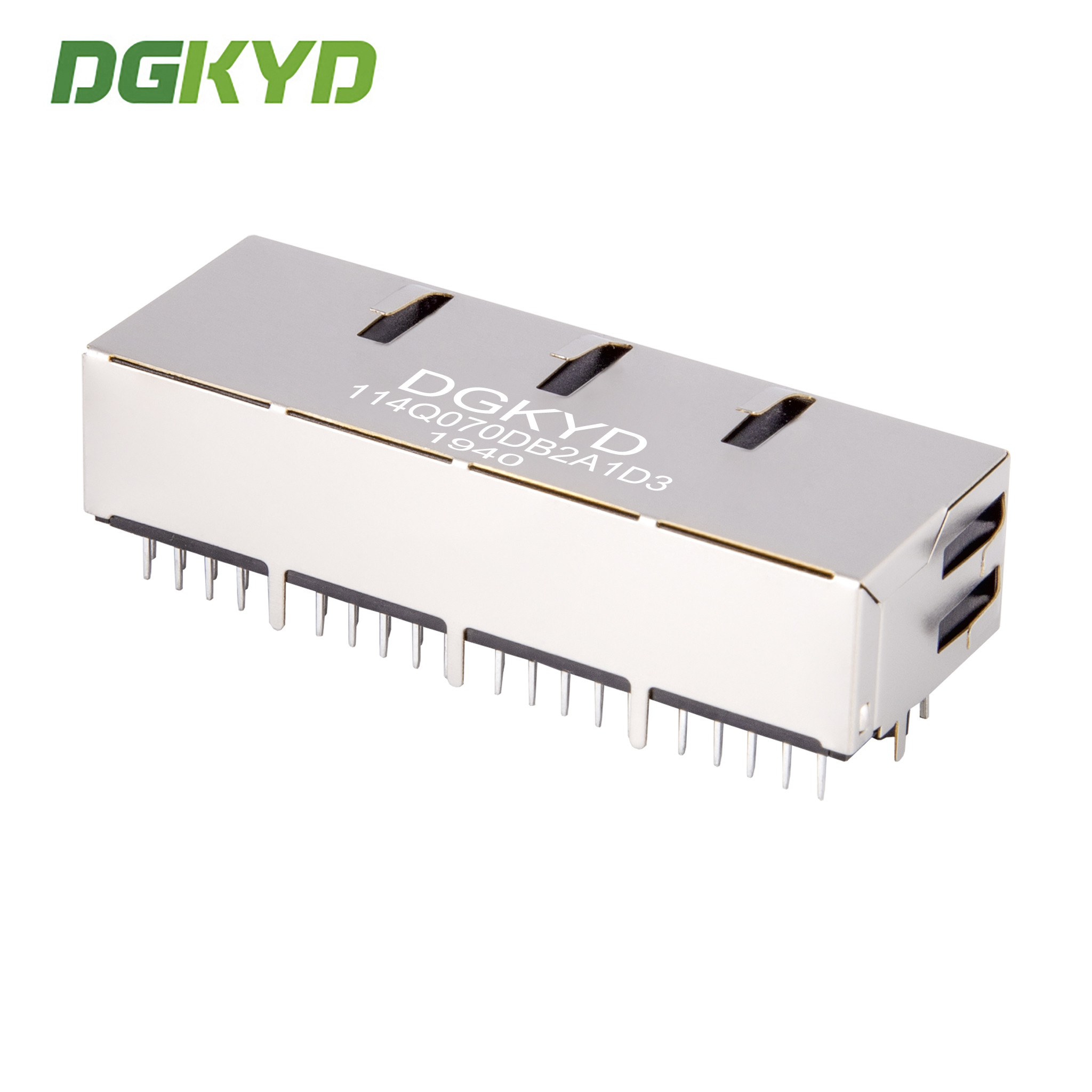

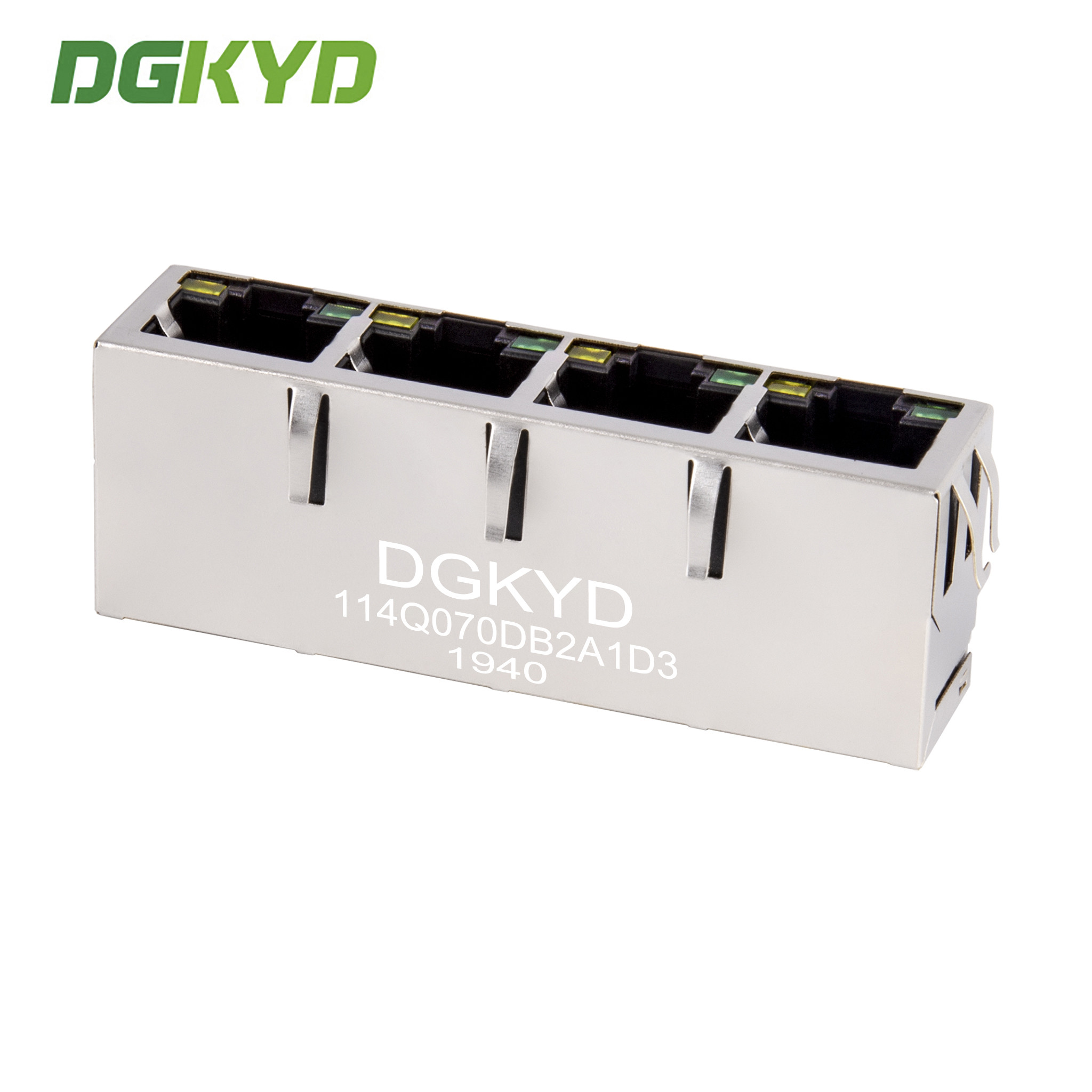

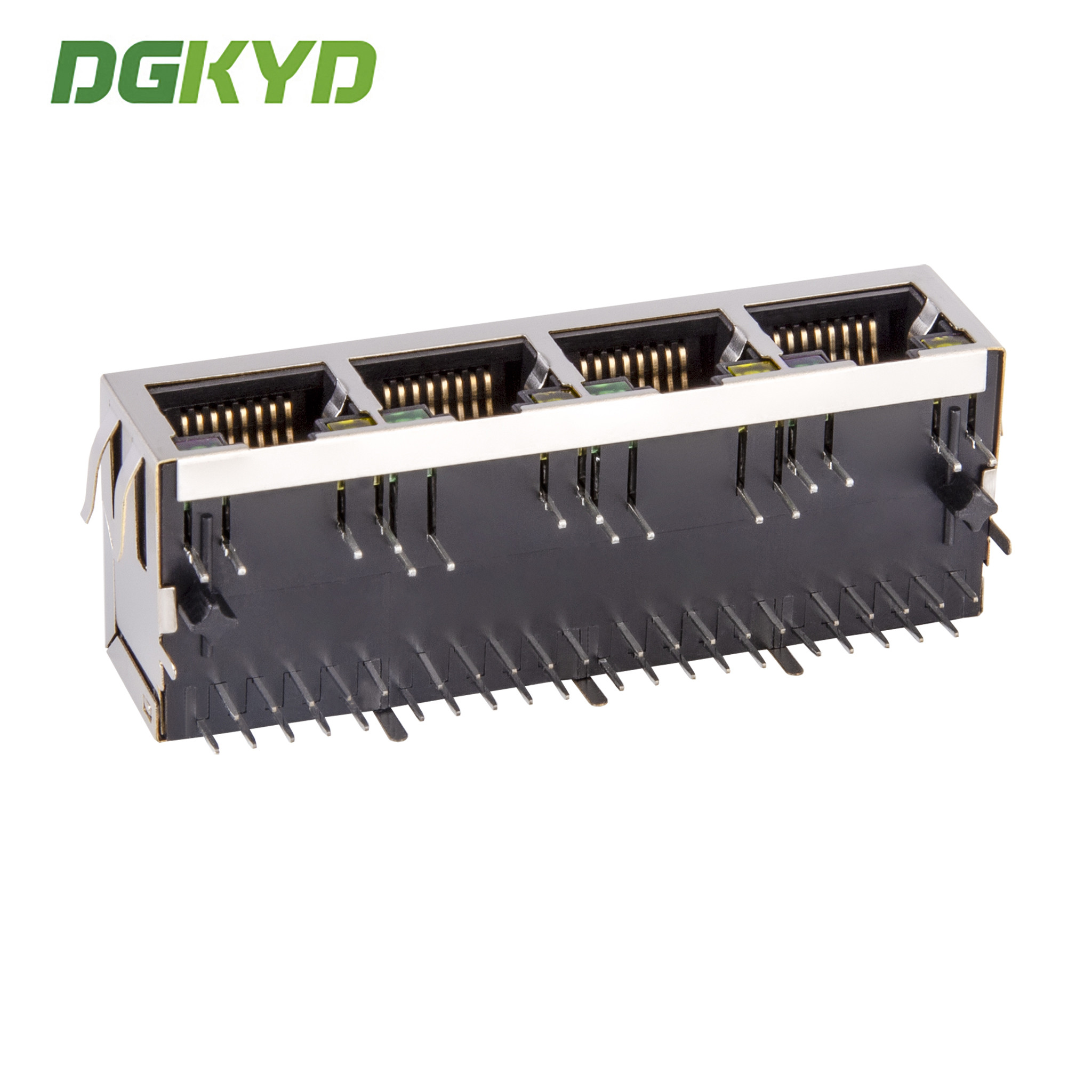

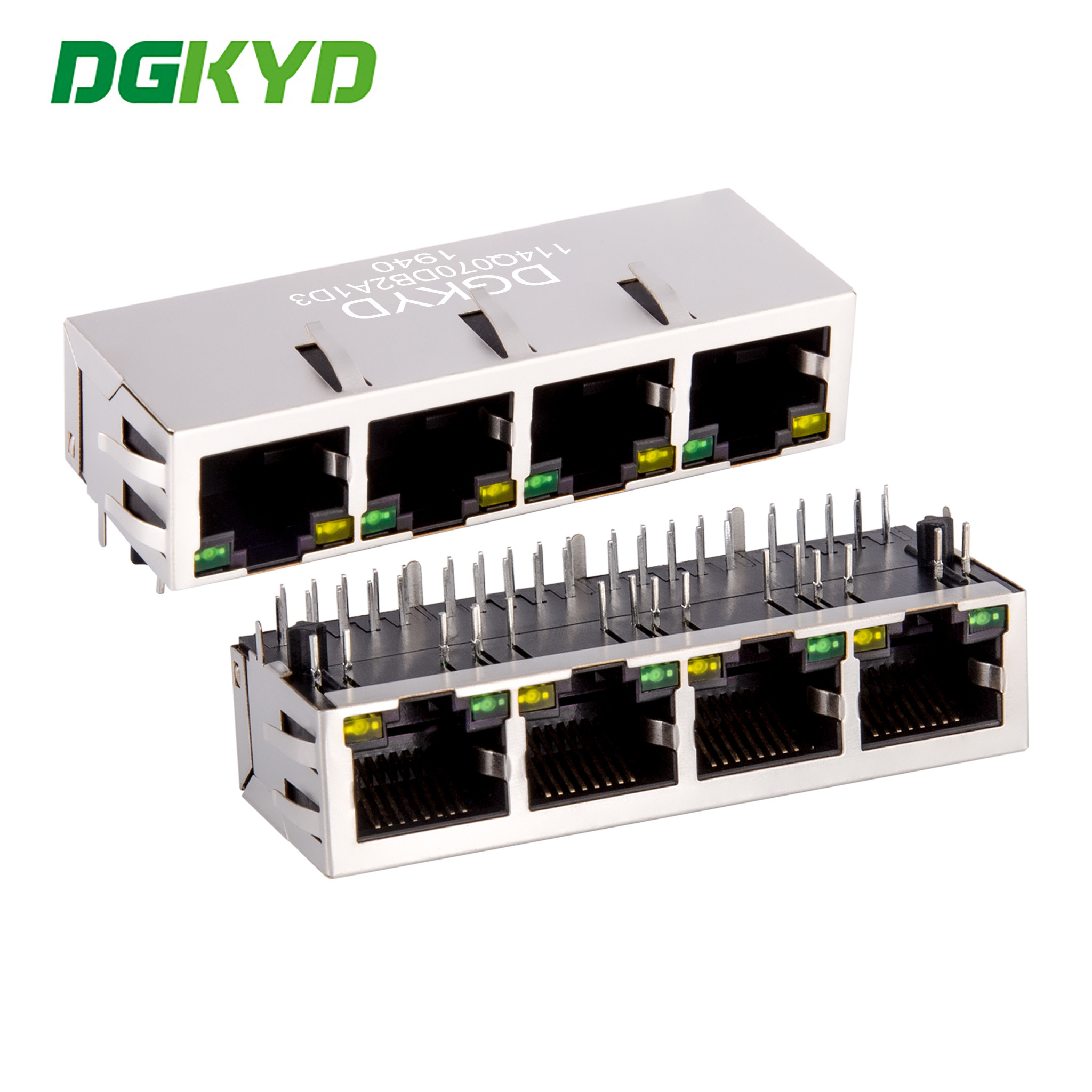

RJ45 quad port RJ45 network port integrated gigabit transformer network connector With Transformer For Ethernet Switc DGKYD114Q070DB2A1D3
Product Specification Document
| Part Number | DGKYD114Q070DB2A1D3 | Brand | DGKYD/OEM/ODM |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-DOWN |
| Filter | With Filter | LED Option | With LED |
| LED Color | Green/Yellow | Panel Stops | With Panel Stops |
| Shielded | With metal shield | Applies To | Printedout Circuit Board |
| Port Configuration | 1X4 Ports | Number of Positions | 10 |
| Jack Configuration | 1X4 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating | Gold 6u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
FAQ:
1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
