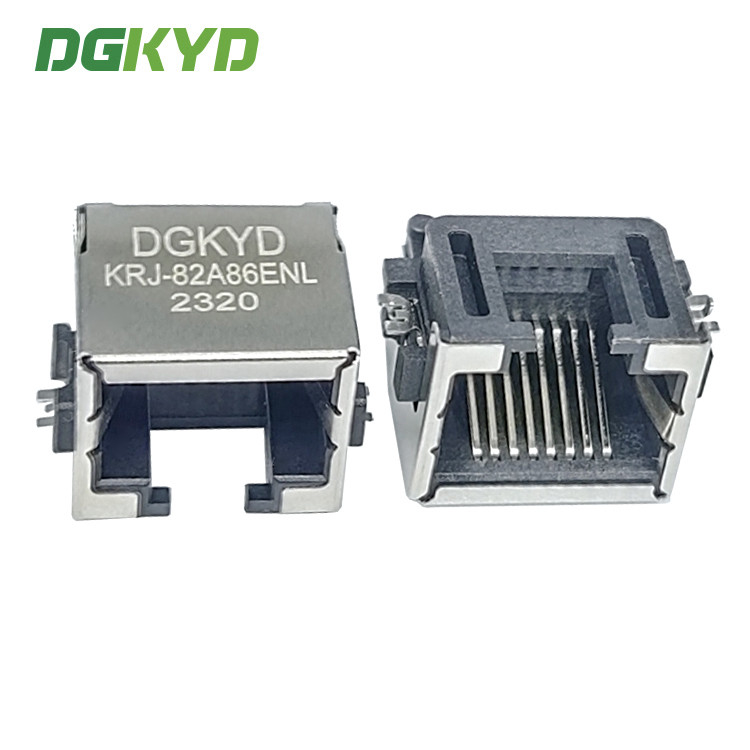

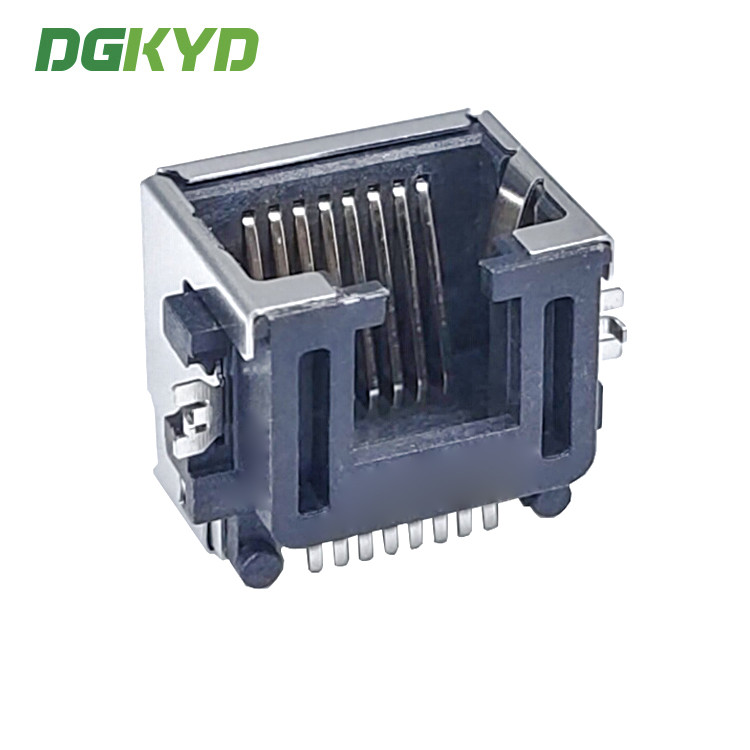

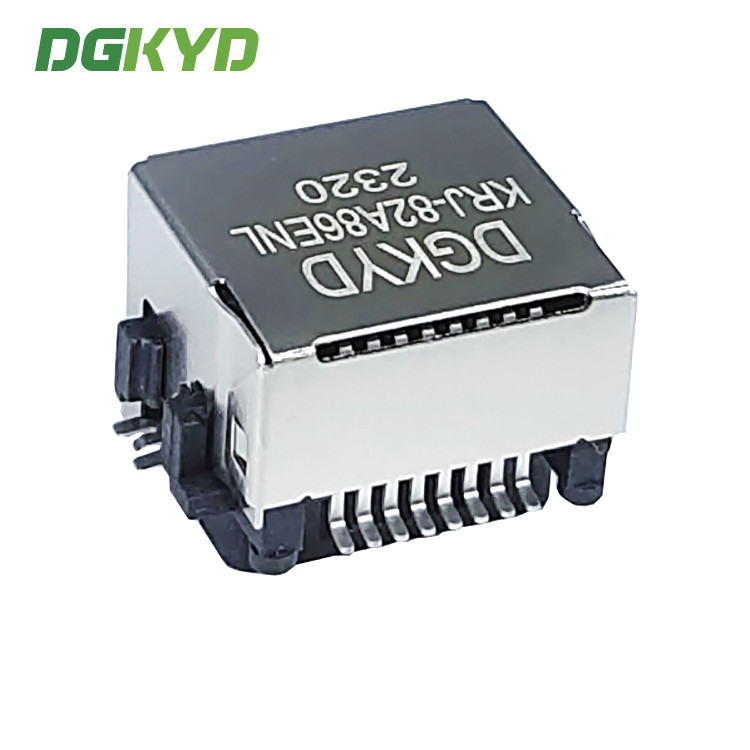

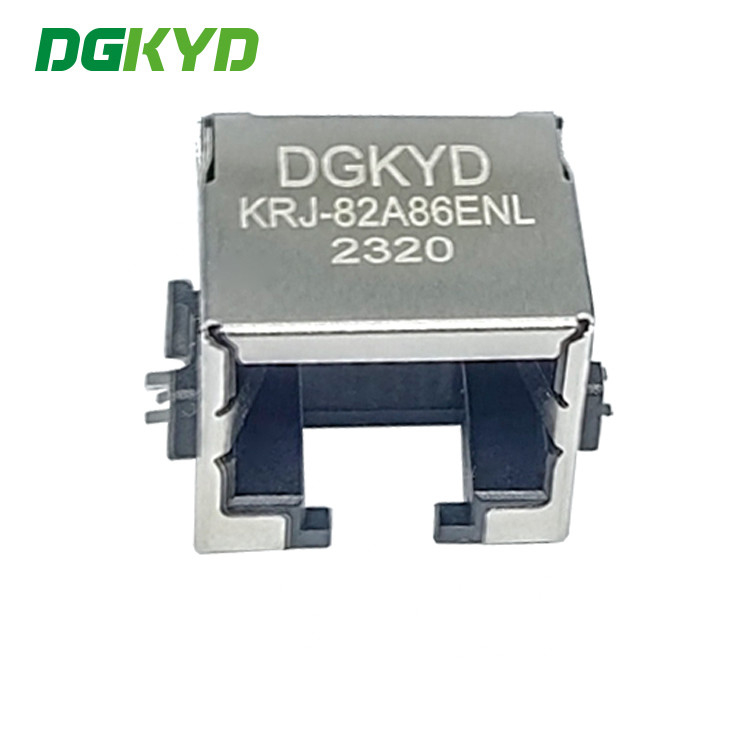

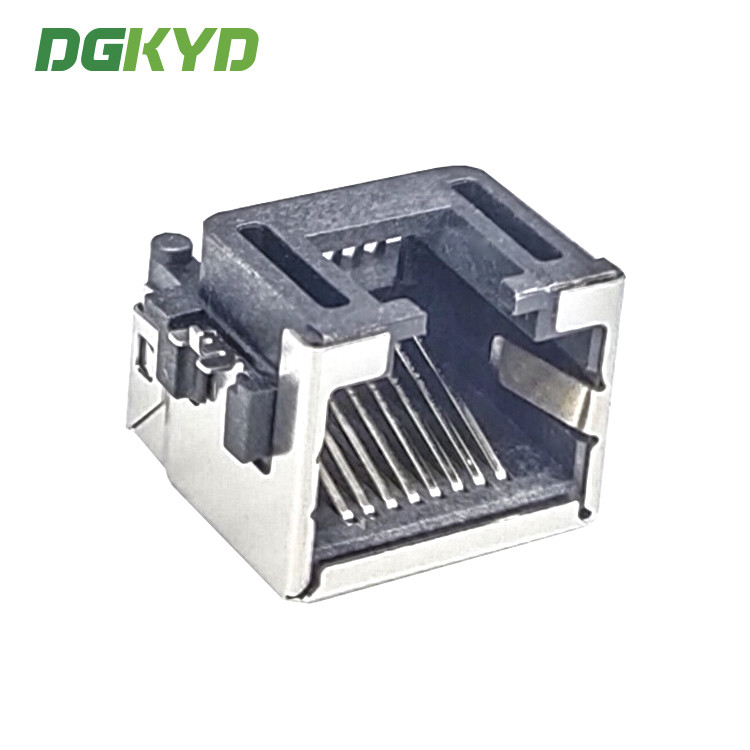

KRJ-82A86ENL RJ45 SMD Network Port Socket Without Filter Modular Block Interface

الحد الأدنى لكمية :	قطعة واحدة	الأسعار :	Please contact us to get the latest price.
تفاصيل التغليف :	علبة كرتون	وقت التسليم :	10 أيام
شروط الدفع :	T / T ، D / P ، D / A ، L / C ، ويسترن يونيون ، موني جرام	القدرة على العرض :	100K جهاز كمبيوتر شخصى / يوم

مكان المنشأ:	دونغقوان الصين	اسم العلامة التجارية:	DGKYD
إصدار الشهادات:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	رقم الموديل:	KRJ-82A86ENL

معلومات تفصيلية
نوع واجهة القابس والمقبس المعياري:	RJ45 بدون محول متكامل	نمط الموصل:	جاك
الجنس:	أنثى	محمي:	نعم..
ملف تعريف الارتفاع:	الانظار اضافية	فئة الأداء:	CAT3
إبراز:	RJ45 SMD Network Port Socket,RJ45 Socket Without Filter,Modular RJ45 Socket , RJ45 Socket Without Filter , Modular RJ45 Socket

منتوج وصف

KRJ-82A86ENL RJ45 SMD network port socket without filter modular block interface

Why Choose Us

Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature: - 40 ℃ - 85 ℃

Storage temperature: - 40 ℃ - 85 ℃

Lead free soldering: wave soldering height up to 265 ℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

Parameters

Part Number	KRJ-82A86ENL	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	With Filter	LED Option	Without LED
LED Color	No	Panel Stops	With Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100/1000BASE-T/TX	Suitable for welding type	Reflowsolding(Alternative).
Port Configuration	Single Ports	Number of Positions	8
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PA9T Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

FAQ:

1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.

2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
