| الحد الأدنى لكمية : | قابل للتفاوض | الأسعار : | قابل للتفاوض |
|---|---|---|---|
| تفاصيل التغليف : | علبة كرتون | وقت التسليم : | 7-14 يوم |
| شروط الدفع : | L/C، D/A، D/P، T/T، Western Union، MoneyGram | القدرة على العرض : | 60000 قطعة في اليوم |
| مكان المنشأ: | دونغقوان الصين | اسم العلامة التجارية: | DGKYD |
|---|---|---|---|
| إصدار الشهادات: | RoHS/CE/FCC/CE/ISO9001/ISO14001 | رقم الموديل: | DGKYDCB421188AB1W6SB |
|
معلومات تفصيلية |
|||
| اسم المنتج: | جاك موصل RJ45 مع درع | نوع الجهاز: | جاك |
|---|---|---|---|
| التطبيق: | جهاز كمبيوتر وجهاز توجيه وشبكة محور USB rj45 إلخ. | الجنس: | أنثى |
| محول: | RJ45 بدون محول | ملف تعريف الارتفاع: | الانظار اضافية |
| إبراز: | Countersunk 4.2 SMT RJ45 Connector,RJ45 Connector Jack With Shield,Single RJ45 Connector Jack,RJ45 Connector Jack With Shield,Single RJ45 Connector Jack |
||
منتوج وصف
RJ45 connector single countersunk 4.2 SMD With shield With LED 8p8c
Paramters
| ATTRIBUTE | ATTRIBUTE VALUE |
| TEMPERATURE | -40 to +85℃ |
| GROUNDING OPTIONS | Panel Ground and PCB Ground |
| SHIELD PLATING MATERIAL | NICKEL |
| SHIELD EMI TABS | YES |
| SHIELD | METAL SHIELD |
| ROHS COMPLIANT | YES |
| PANEL STOP | NONE |
| PCB MOUNT ANGLE | SIDE ENTRY |
| PACKAGE | SMT |
| CONNECTOR & CONTACT TERMINAATES TO | Printed Circuit Board |
| NUMBER OF PORTS | 1X1 |
| NUMBER OF CONTACTS | 8 |
| LED OPTION | L-Yellow / R-Green |
| LATCH ORIENTATION | LATCH DOWN |
| HOUSING MATERIAL | LCP UL94V-0 |
| CONTACT MATING AREA PLATING | GOLD FLASH PLATING |
| CONNECTOR TYPE | RJ45 |
| CONNECTOR MATERIAL COLOR | BLACK |
Drawing

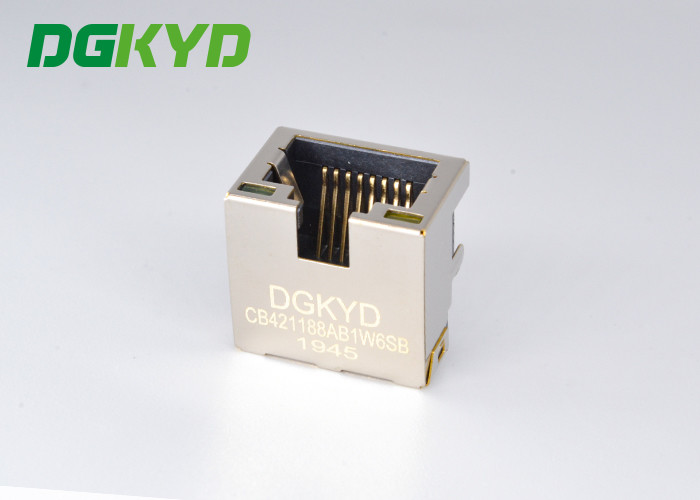

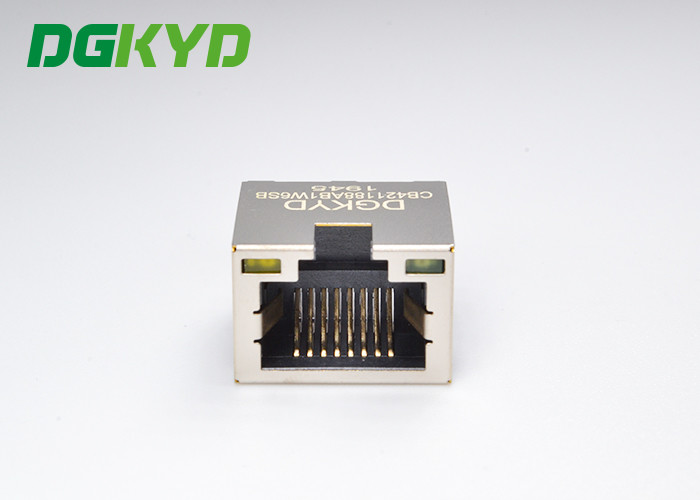

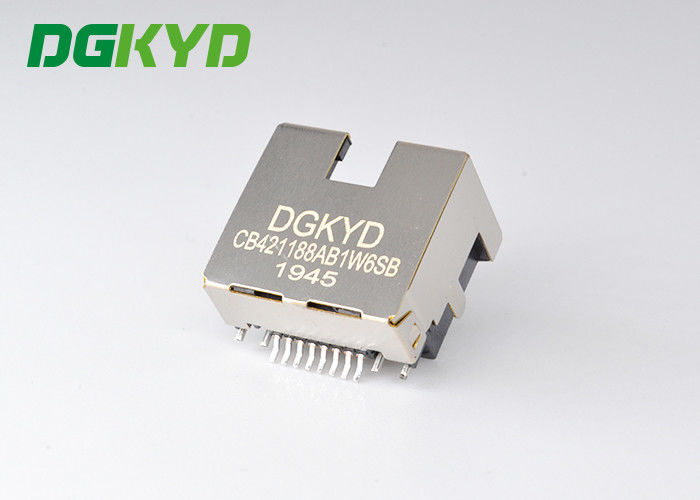

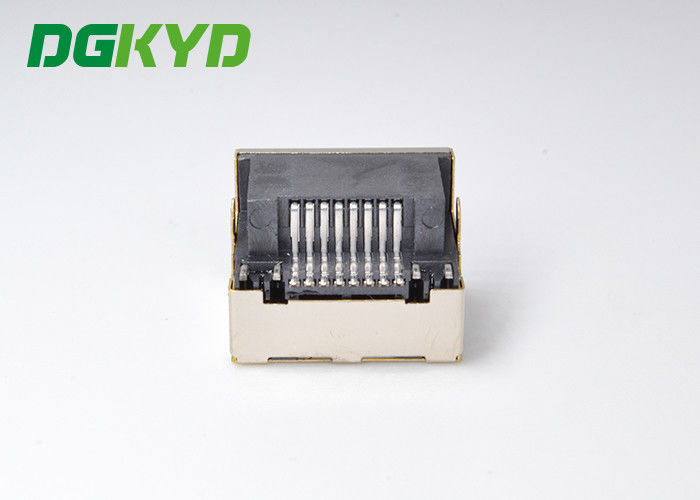

Pictures
