منزل المنتجاتRJ11 RJ12 RJ45 بدون سلسلة المحولاتالسلسلة 59RJ45 network port 2X1 stacked built-in non variable filter, no light, all plastic network interface DGKYD59212188IWA1DY1G

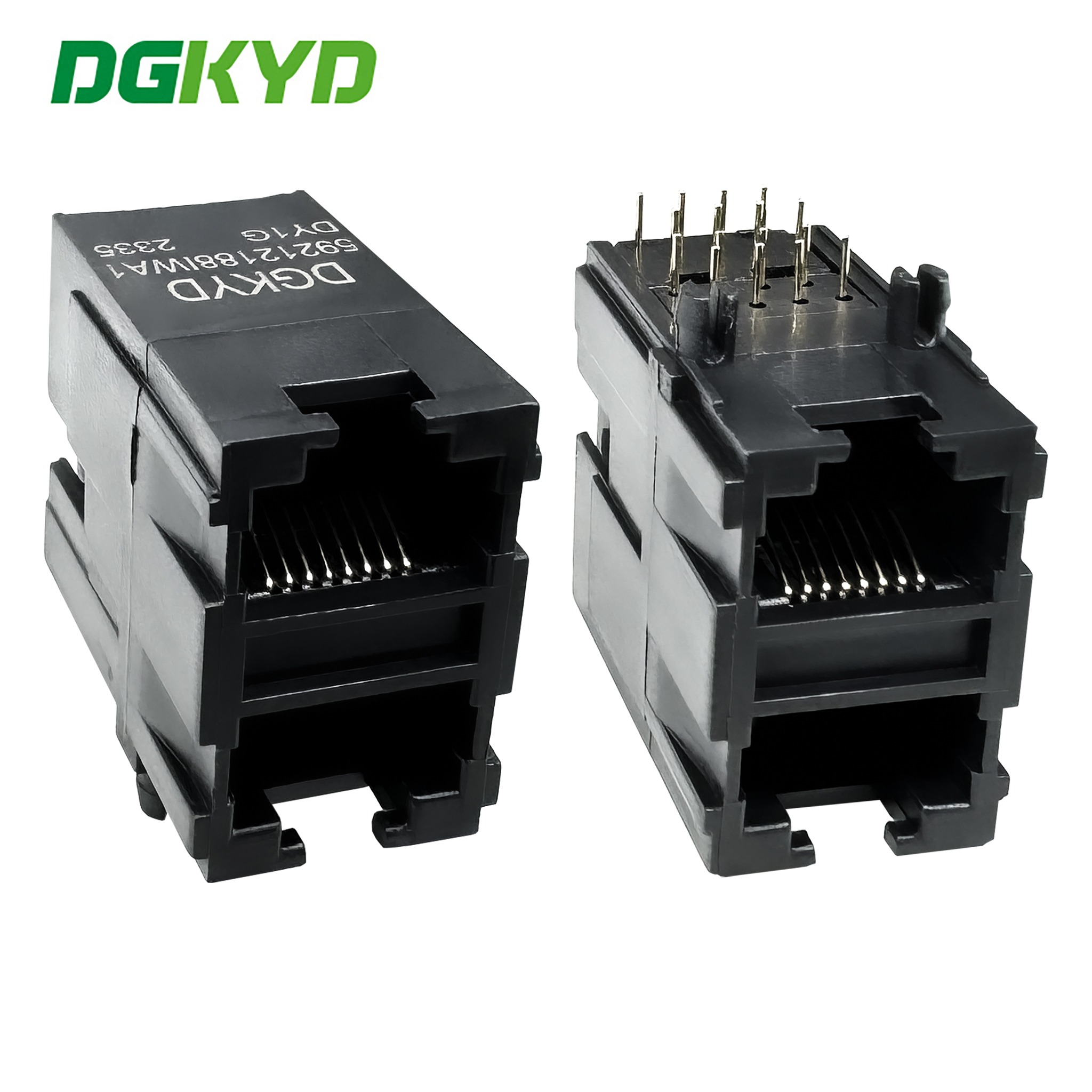

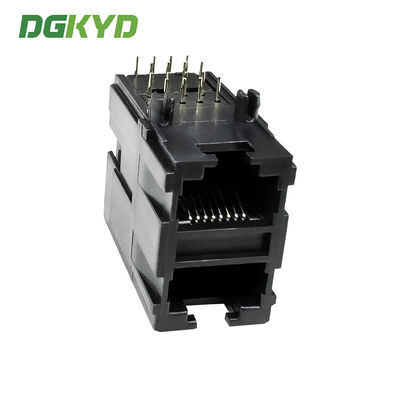

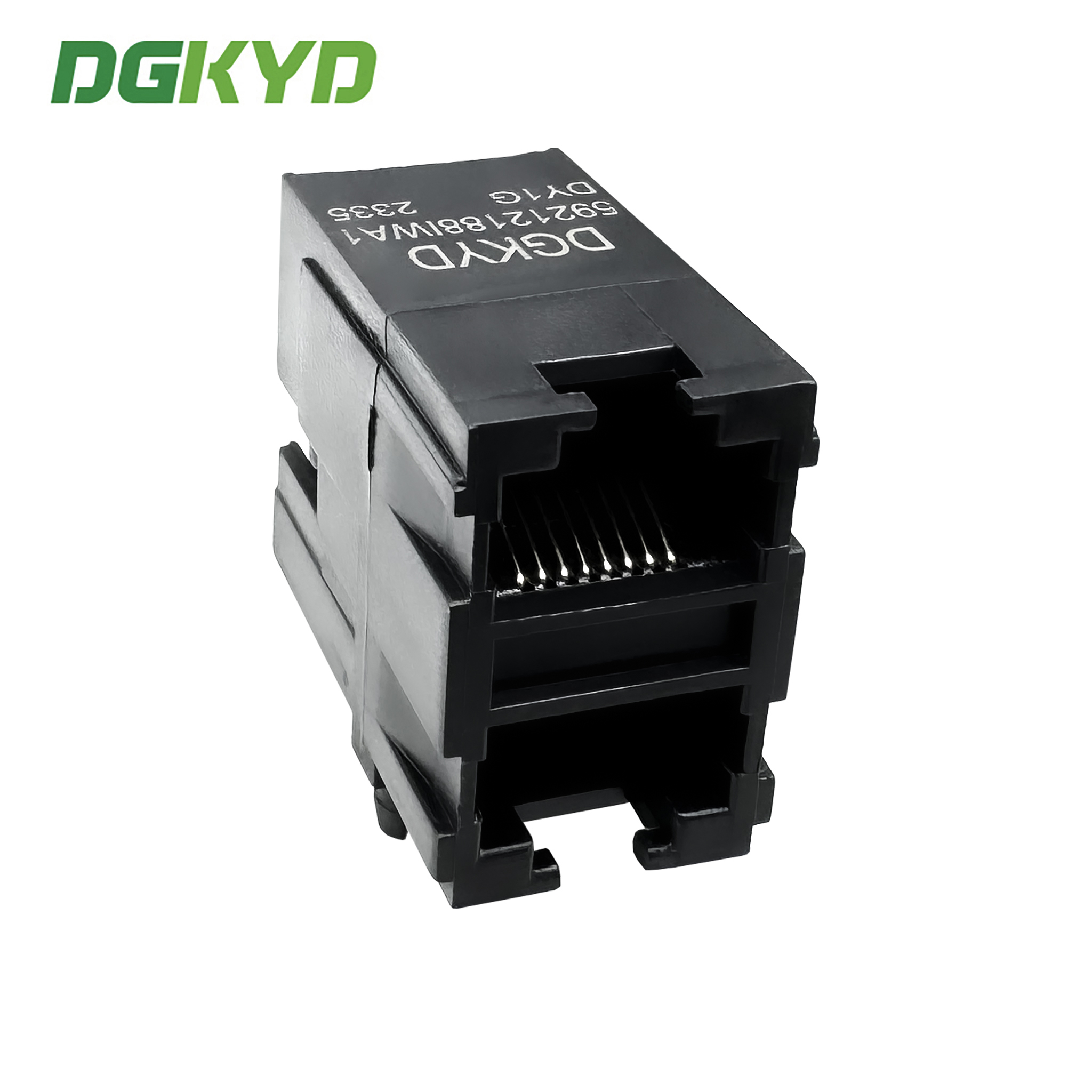

RJ45 network port 2X1 stacked built-in non variable filter, no light, all plastic network interface DGKYD59212188IWA1DY1G
RJ45 network port 2X1 stacked built-in non variable filter, no light, all plastic network interface DGKYD59212188IWA1DY1G RJ45 network port 2X1 stacked built-in non variable filter, no light, all plastic network interface DGKYD59212188IWA1DY1G RJ45 network port 2X1 stacked built-in non variable filter, no light, all plastic network interface DGKYD59212188IWA1DY1G RJ45 network port 2X1 stacked built-in non variable filter, no light, all plastic network interface DGKYD59212188IWA1DY1G RJ45 network port 2X1 stacked built-in non variable filter, no light, all plastic network interface DGKYD59212188IWA1DY1G
ﺎﺘﺼﻟ ﺍﻶﻧ

RJ45 network port 2X1 stacked built-in non variable filter, no light, all plastic network interface DGKYD59212188IWA1DY1G

الحد الأدنى لكمية : قطعة واحدة الأسعار : Please contact us to get the latest price.
تفاصيل التغليف : علبة في الكرتون وقت التسليم : 10 أيام
شروط الدفع : T/T ، D/P ، D/A ، L/C ، Western Union ، Moneygram القدرة على العرض : 100 كيلو أجهزة كمبيوتر/يوم
مكان المنشأ: دونغغوان الصين اسم العلامة التجارية: DGKYD
إصدار الشهادات: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 رقم الموديل: DGKYD59212188IWA1DY1G

معلومات تفصيلية
سرعة: CAT 3/5/6 ميناء: منفذ مزدوج
درع: لا محول: بدون محول
جبل نوع: نوع ثنائي الفينيل متعدد الكلور مزلاج: علامة تبويب لأعلى/لأسفل
درجة حرارة التشغيل: -40 درجة مئوية ~+85 درجة مئوية إنهاء: تراجع
نوع واجهة المقبس والتوصيل المعيار: RJ45 بدون محول فئة: مقابس الهاتف
لون: أسود
إبراز:

RJ45 network port non variable filter,59 Series all plastic network interface,stacked RJ45 port no light

,

59 Series all plastic network interface

,

stacked RJ45 port no light

منتوج وصف

RJ45 Network Port 2X1 Stacked Built-in Non Variable Filter, No Light, All Plastic Network Interface DGKYD59212188IWA1DY1G
RJ45 network port 2X1 stacked built-in non variable filter, no light, all plastic network interface DGKYD59212188IWA1DY1G
Product Specification Document
Key Features
  • Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
  • Type: RJ45 built in magnetics
  • Working frequency: high frequency characteristic: filtering, anti-interference
  • Working temperature: -40℃ to 85℃
  • Storage temperature: -40℃ to 85℃
  • Lead free soldering: wave soldering height up to 265℃
Technical Specifications
Part Number DGKYD59212188IWA1DY1G Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type Modular Jack
Latch Style Standard Latch TAB-UP/DOWN
Filter Without Filter LED Option Without LED
LED Color No Panel Stops With Panel Stops
Shielded No Applies To Printed Circuit Board
Performance Speed 10/100/1000 BASE-T/TX Suitable for welding type Reflowsolding(Alternative)
Port Configuration Single Ports Number of Positions 8
Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area Plating Material Gold G/Fu Contact Base Material Phosphor Bronze
Solder Tail Contact Plating Material Tin-Lead over Nickel PCB Mounting Style Through Hole
Termination Method to PC Board Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material PBT Polyester Housing Color Black
Housing Material Temperature Standard UL Flammability Rating UL 94V-0
RJ45 network port 2X1 stacked built-in non variable filter, no light, all plastic network interface DGKYD59212188IWA1DY1G 0 RJ45 network port 2X1 stacked built-in non variable filter, no light, all plastic network interface DGKYD59212188IWA1DY1G 1 RJ45 network port 2X1 stacked built-in non variable filter, no light, all plastic network interface DGKYD59212188IWA1DY1G 2 RJ45 network port 2X1 stacked built-in non variable filter, no light, all plastic network interface DGKYD59212188IWA1DY1G 3 RJ45 network port 2X1 stacked built-in non variable filter, no light, all plastic network interface DGKYD59212188IWA1DY1G 4 RJ45 network port 2X1 stacked built-in non variable filter, no light, all plastic network interface DGKYD59212188IWA1DY1G 5 RJ45 network port 2X1 stacked built-in non variable filter, no light, all plastic network interface DGKYD59212188IWA1DY1G 6 RJ45 network port 2X1 stacked built-in non variable filter, no light, all plastic network interface DGKYD59212188IWA1DY1G 7 RJ45 network port 2X1 stacked built-in non variable filter, no light, all plastic network interface DGKYD59212188IWA1DY1G 8
Product Advantages
  • RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
  • Business mode: Manufacturer
  • Delivery time: on time delivery, around two weeks
  • Multiple customization options available for LED indicators, shielding, coil ratio, magnetic circuits, contact plating, and housing materials
  • Products meet industry standards for electrical properties, mechanical properties, and environmental protection
Frequently Asked Questions
Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
