اتصل شخص : Nicole Zhuo
رقم الهاتف : +86 18925835585
ال WhatsApp : +8613538542087
| الحد الأدنى لكمية : | قطعة واحدة | الأسعار : | Please contact us to get the latest price. |
|---|---|---|---|
| تفاصيل التغليف : | علبة في الكرتون | وقت التسليم : | 10 أيام |
| شروط الدفع : | T/T ، D/P ، D/A ، L/C ، Western Union ، Moneygram | القدرة على العرض : | 100 كيلو أجهزة كمبيوتر/يوم |
| مكان المنشأ: | دونغغوان الصين | اسم العلامة التجارية: | DGKYD |
|---|---|---|---|
| إصدار الشهادات: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | رقم الموديل: | KRJ-SH105GYENL |
|
معلومات تفصيلية |
|||
| اسم المنتج: | RJ45 Modular Jack | جنس: | RJ45 وعاء |
|---|---|---|---|
| يكتب: | متعدد دبوس rj45 magjack | طلب: | الألياف الضوئية ، كاميرا IP ، DVR ، DSL ، المودم ، wifi إلخ |
| ميزة: | منفذ شبكة RJ45 محمي | OEM/ODM: | نعم |
| طلاء الذهب على دبابيس الاتصال: | 6U | درجة حرارة التشغيل: | -40 درجة مئوية ~+85 درجة مئوية |
| درجة حرارة التخزين: | -40 درجة مئوية ~+85 درجة مئوية | عدد المواقف/جهات الاتصال: | 8P8c (RJ45 ، إيثرنت) |
| درع: | فوسفور النحاس الطلاء النيكل | ||
| إبراز: | RJ45 female jack with shielding,100Mbps RJ45 port with transformer,RJ45 network socket with LED indicator,100Mbps RJ45 port with transformer,RJ45 network socket with LED indicator |
||
منتوج وصف

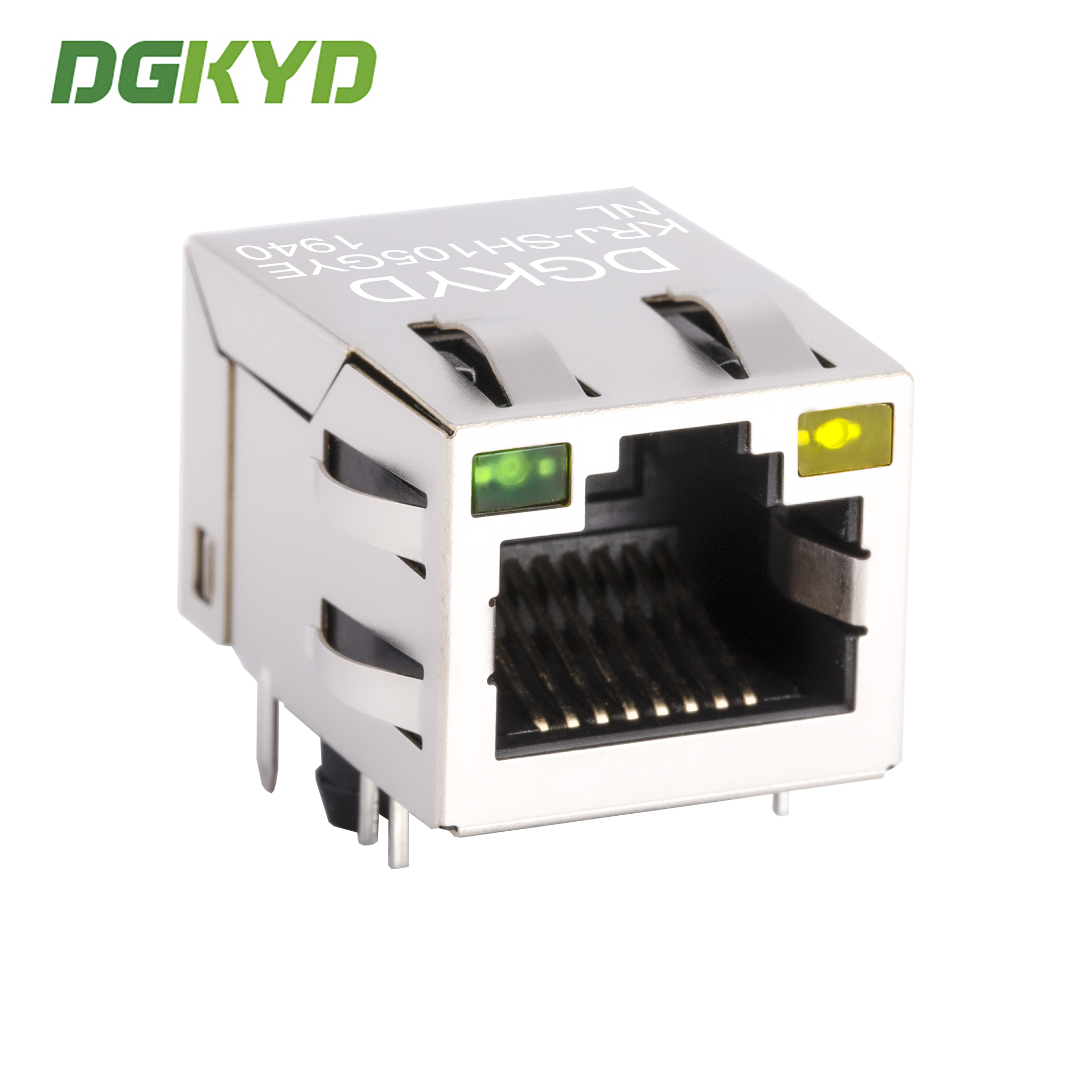

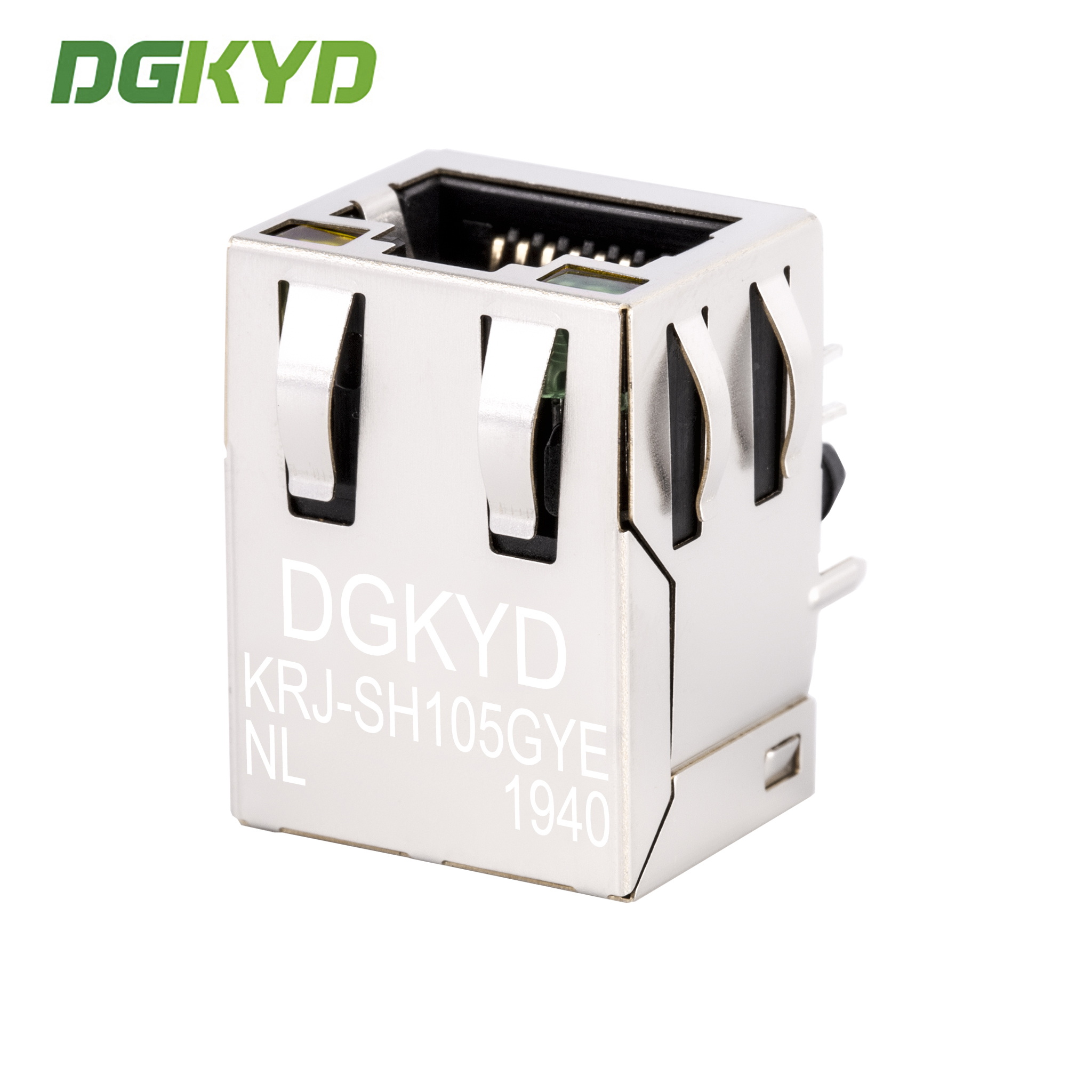

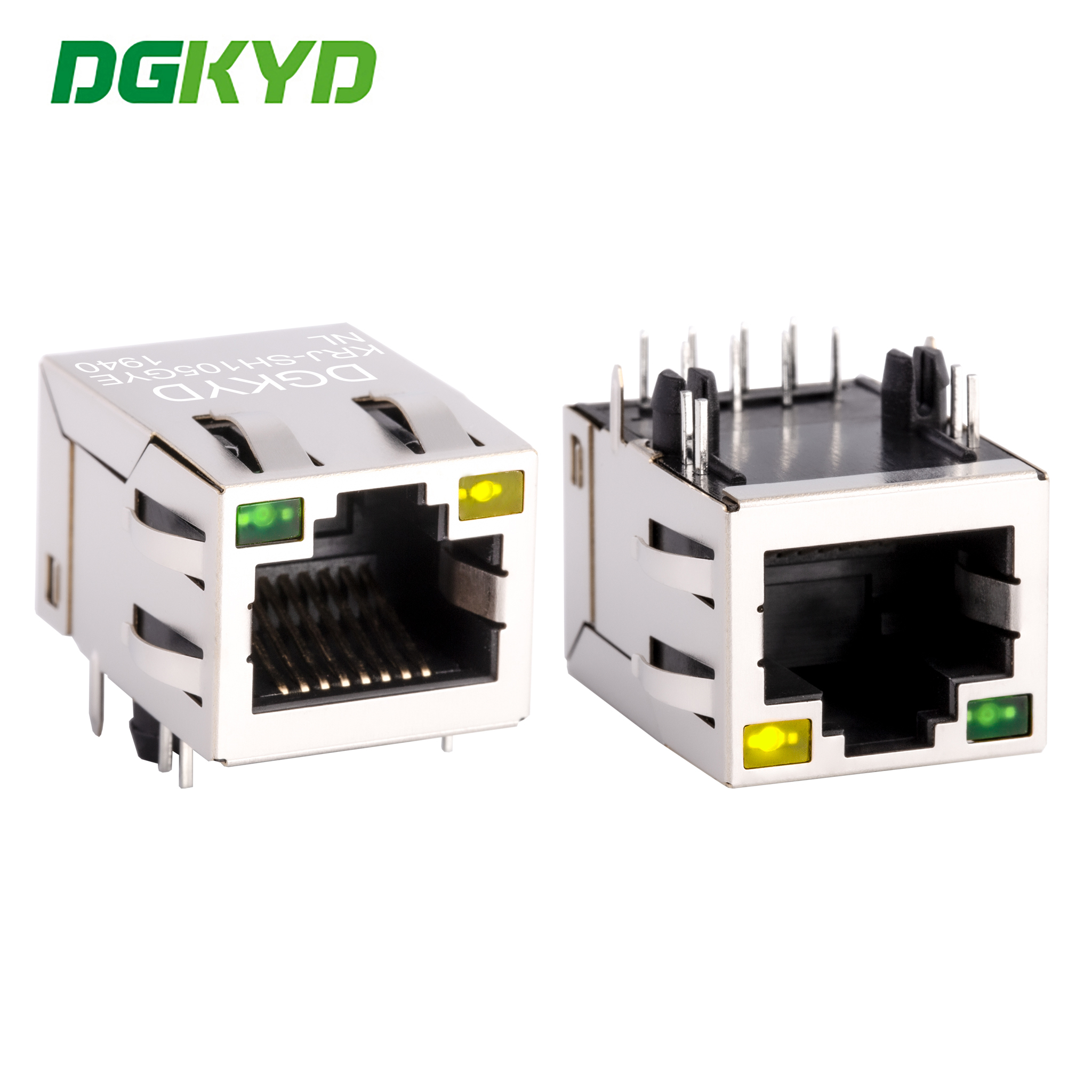

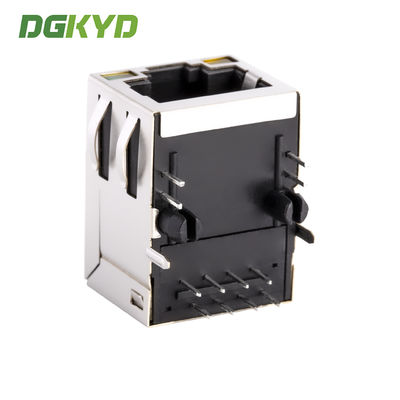

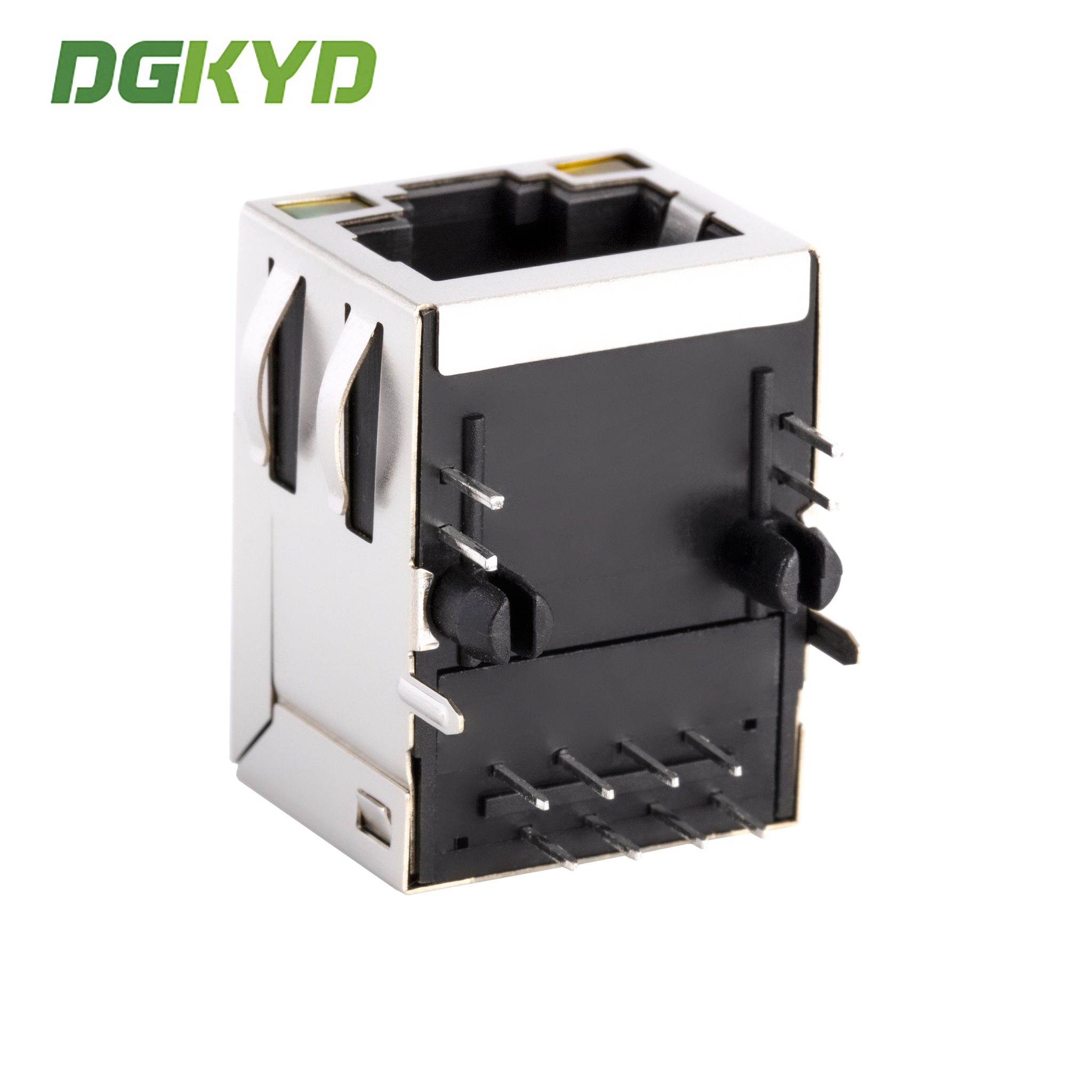

RJ45 network port socket with built-in 100Mbps integrated transformer with light and shielding KRJ-SH105GYENL
Product Specification Document
| Part Number | KRJ-SH105GYENL | Brand | DGKYD/OEM/ODM |
|---|---|---|---|
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP |
| Filter | With Filter | LED Option | With LED |
| LED Color | Green/Yellow | Panel Stops | With Panel Stops |
| Shielded | With metal shield | Applies To | Printedout Circuit Board |
| Port Configuration | SIngle Ports | Number of Positions | 8 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating | Gold 6u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
A: We are manufacture. Welcome to our factory.
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
