| الحد الأدنى لكمية : | قطعة واحدة | الأسعار : | Please contact us to get the latest price. |
|---|---|---|---|
| تفاصيل التغليف : | علبة في الكرتون | وقت التسليم : | 10 أيام |
| شروط الدفع : | T/T ، D/P ، D/A ، L/C ، Western Union ، Moneygram | القدرة على العرض : | 100 كيلو أجهزة كمبيوتر/يوم |
| مكان المنشأ: | دونغغوان الصين | اسم العلامة التجارية: | DGKYD |
|---|---|---|---|
| إصدار الشهادات: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | رقم الموديل: | DGKYD21Q085DA1A2D057 |
|
معلومات تفصيلية |
|||
| نوع واجهة المقبس والتوصيل المعيار: | RJ45 مع المحول | تكوين المنفذ: | منفذ مزدوج |
|---|---|---|---|
| نمط الموصل: | جاك | جنس: | أنثى |
| محمي: | نعم | مواد الإسكان: | بوليستر PA66 |
| مؤشر الحالة: | أصفر/أخضر | السيطرة على الصوت: | مساعد جوجل، أمازون اليكسا |
| لون: | أسود | فئة: | مقابس الهاتف |
| مادة: | PA66 | إنهاء: | تراجع |
| درجة حرارة التشغيل: | -40 درجة مئوية ~+85 درجة مئوية | إيثرنت: | 1000 BASE-T/TX |
| نوع الإدخال: | دخول جانبي | يكتب: | RJ45 |
| إبراز: | RJ45 stacked Ethernet socket,gigabit integrated transformer socket,RJ45 2x1 Ethernet connector,gigabit integrated transformer socket,RJ45 2x1 Ethernet connector |
||
منتوج وصف

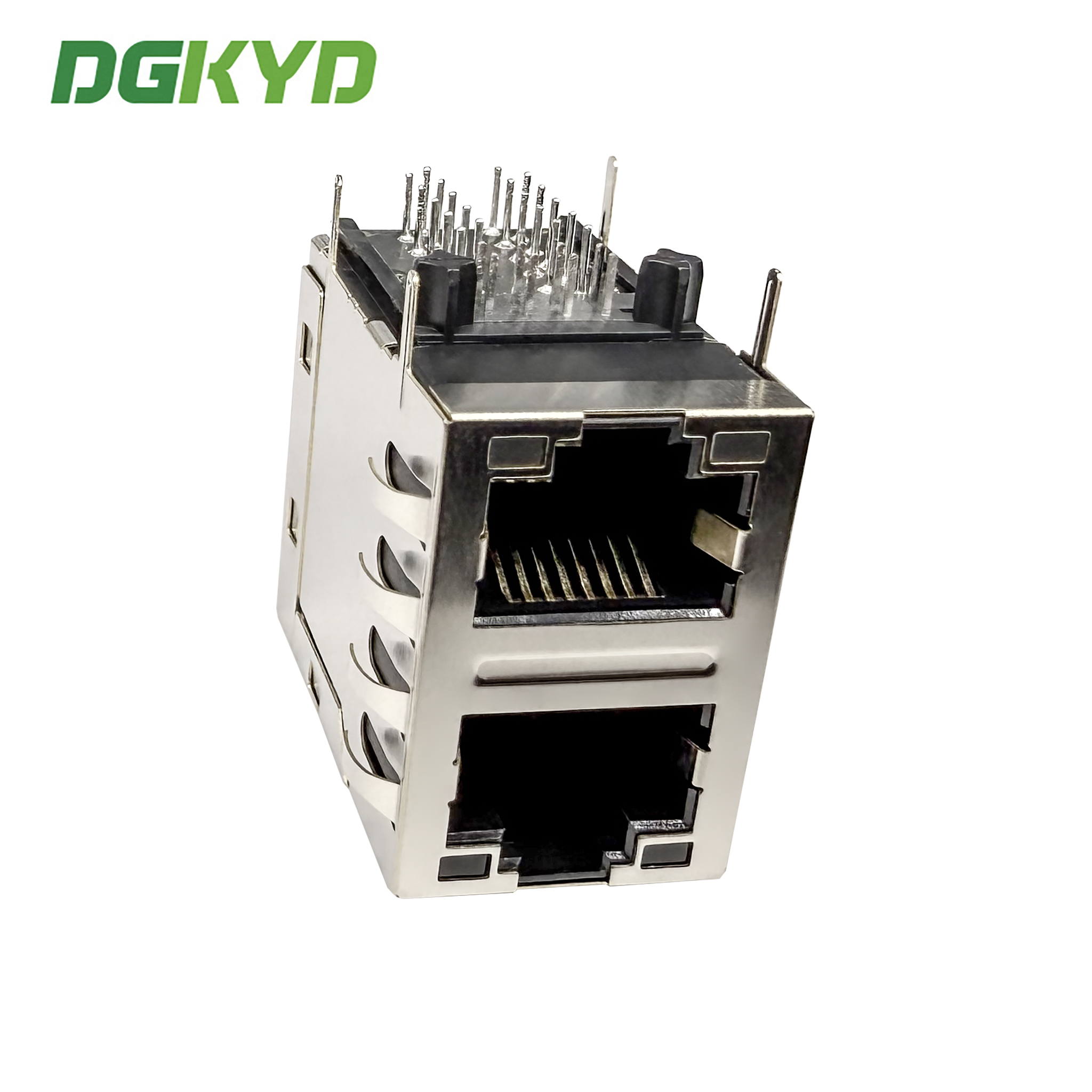

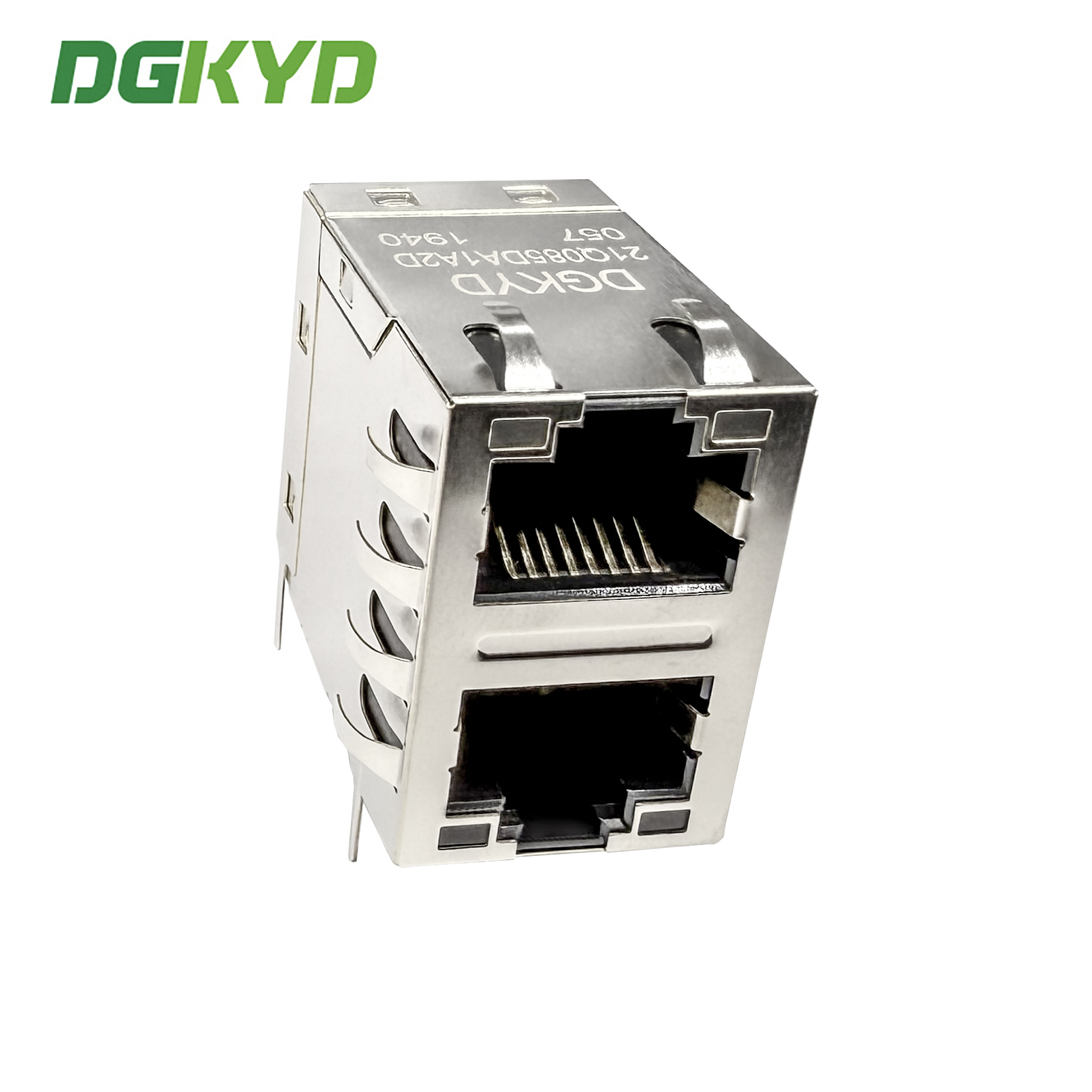

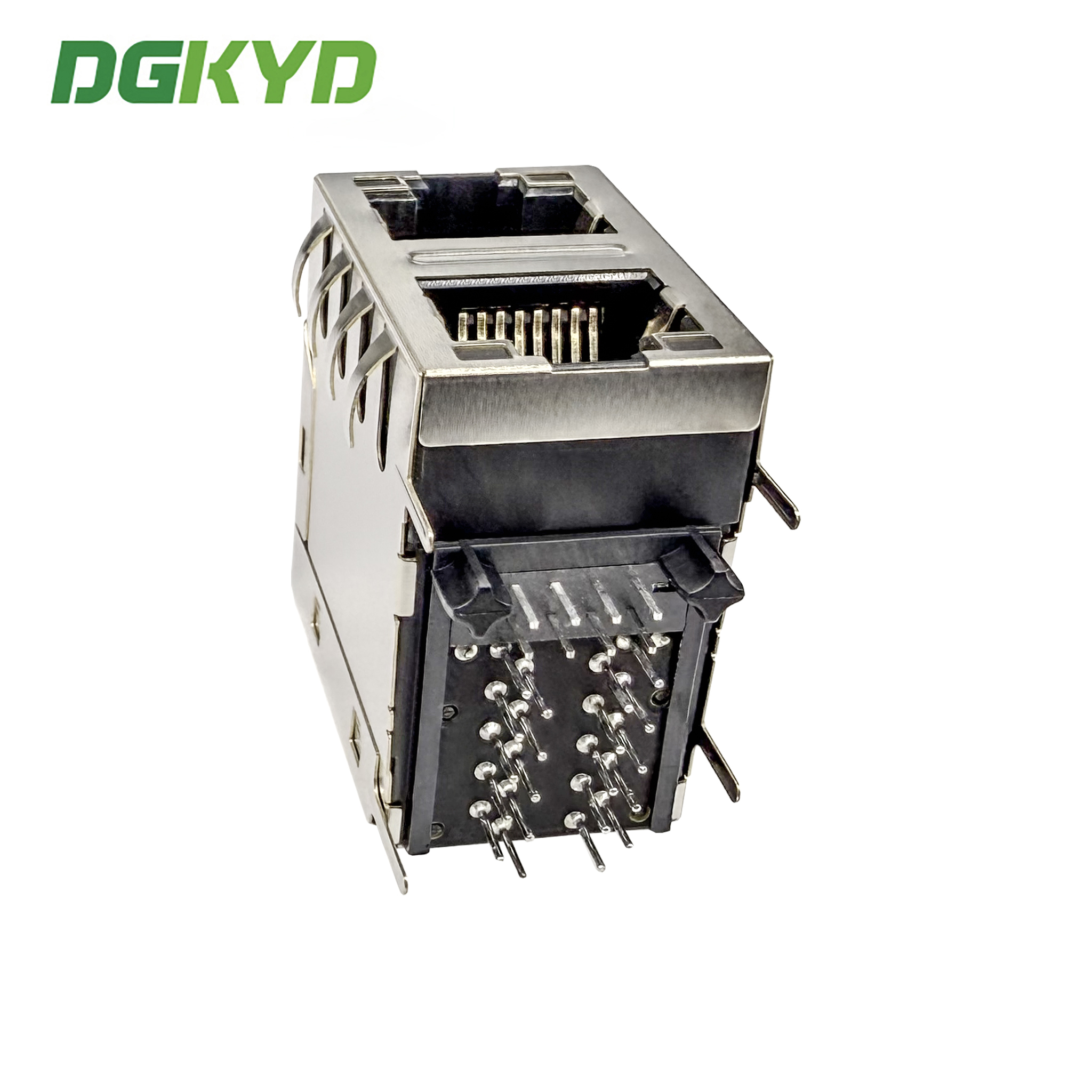

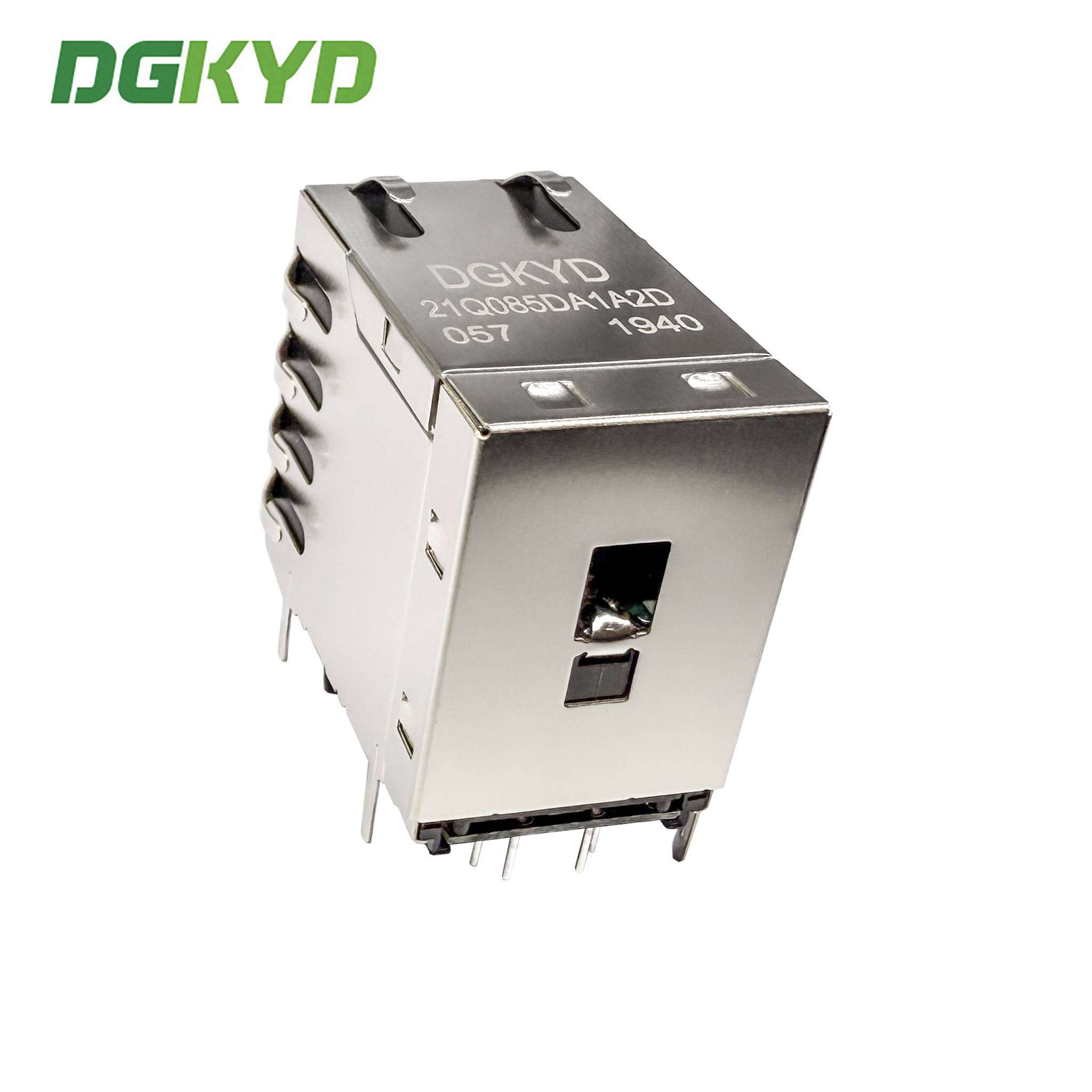

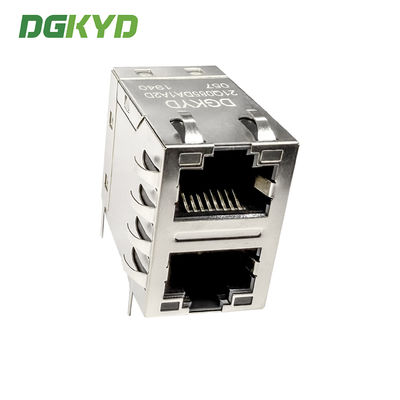

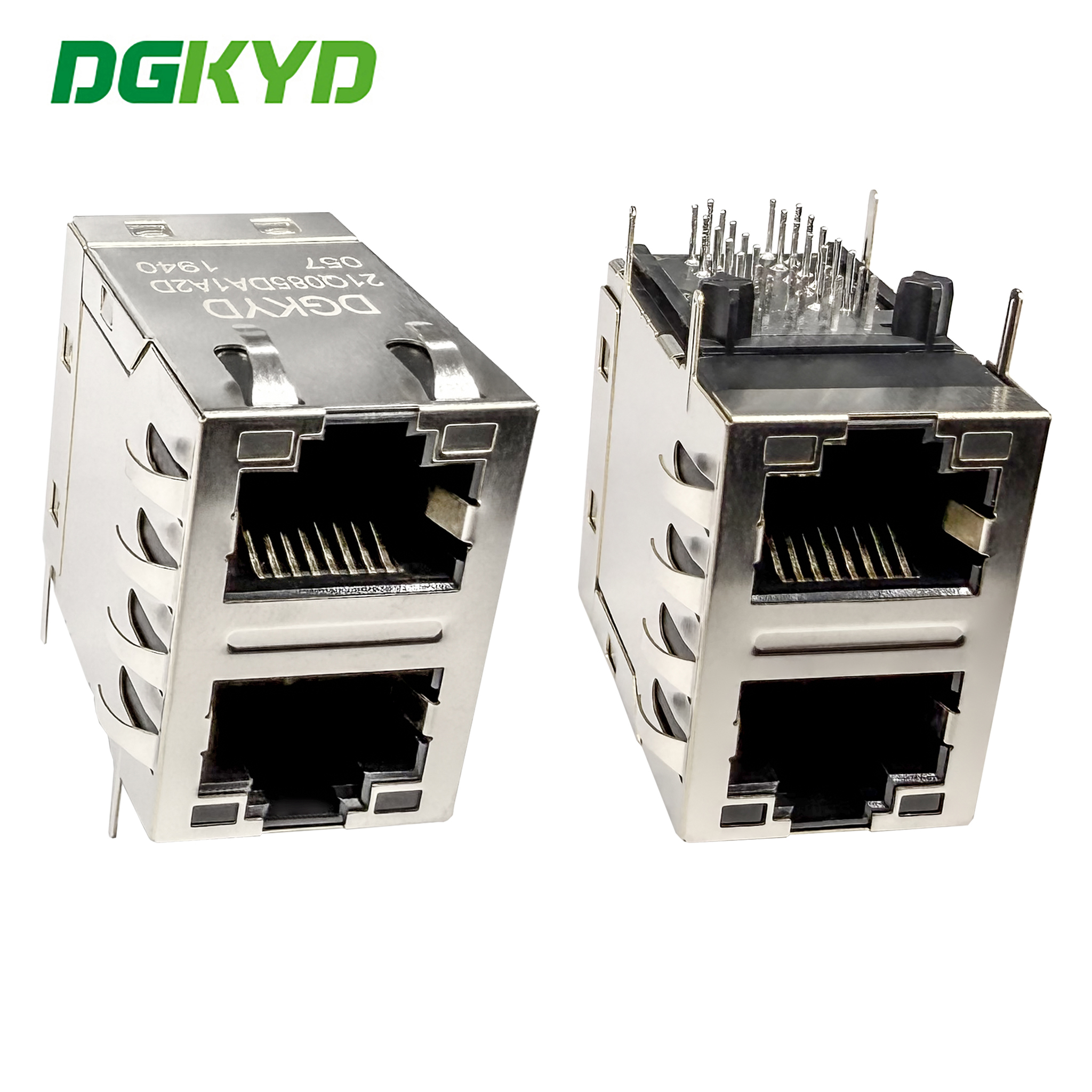

RJ45 stacked Ethernet socket with built-in gigabit integrated transformer DGKYD21Q085DA1A2D057
Product Specification Document| Part Number | DGKYD21Q085DA1A2D057 | Brand | DGKYD/OEM/ODM |
|---|---|---|---|
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP/DOWN |
| Filter | With Filter | LED Option | With LED |
| LED Color | Yellow-Green | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 10/100/1000 BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative) |
| Port Configuration | Double Ports | Number of Positions | 10 |
| Jack Configuration | 2X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PA66 Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
A: We are manufacture. Welcome to our factory.
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
