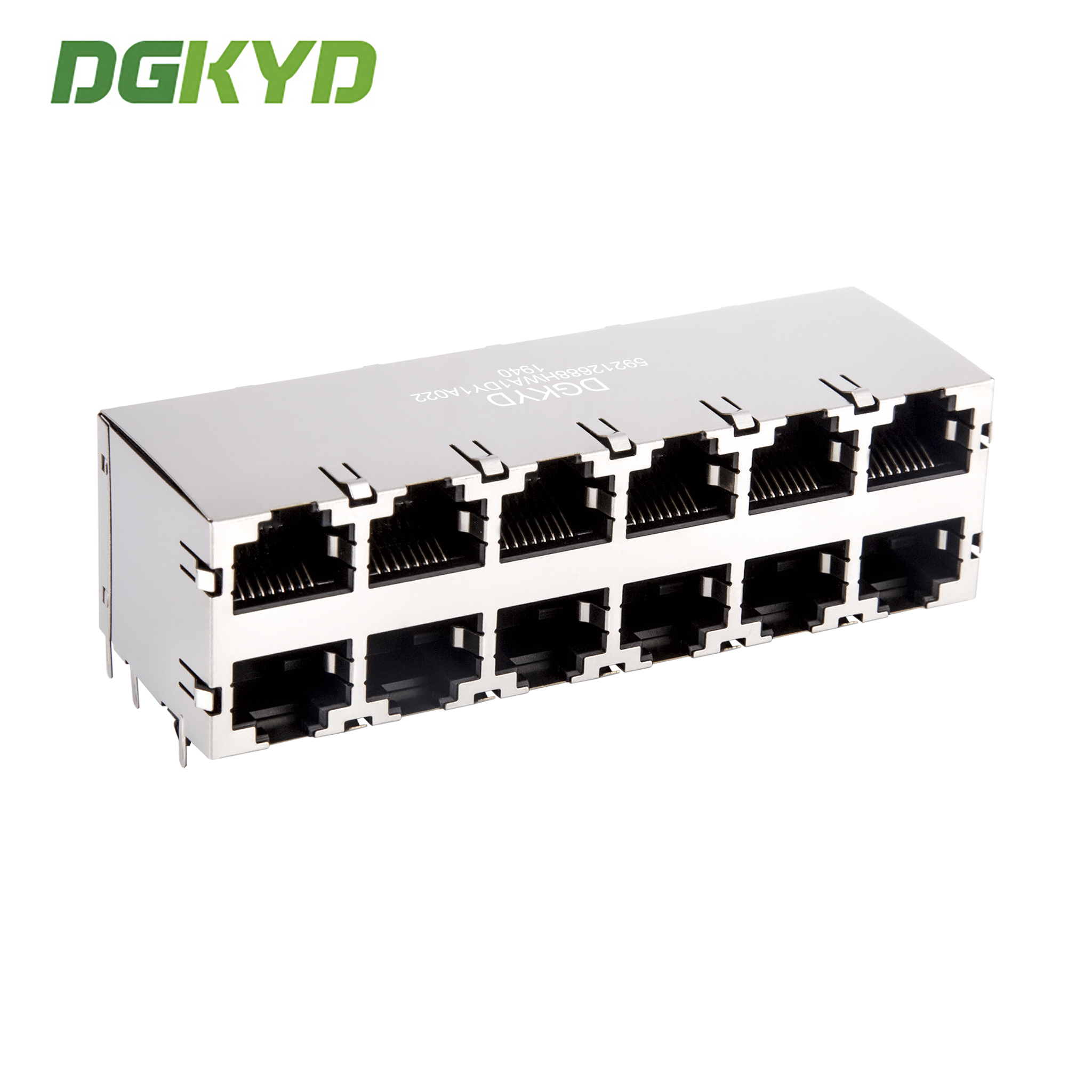

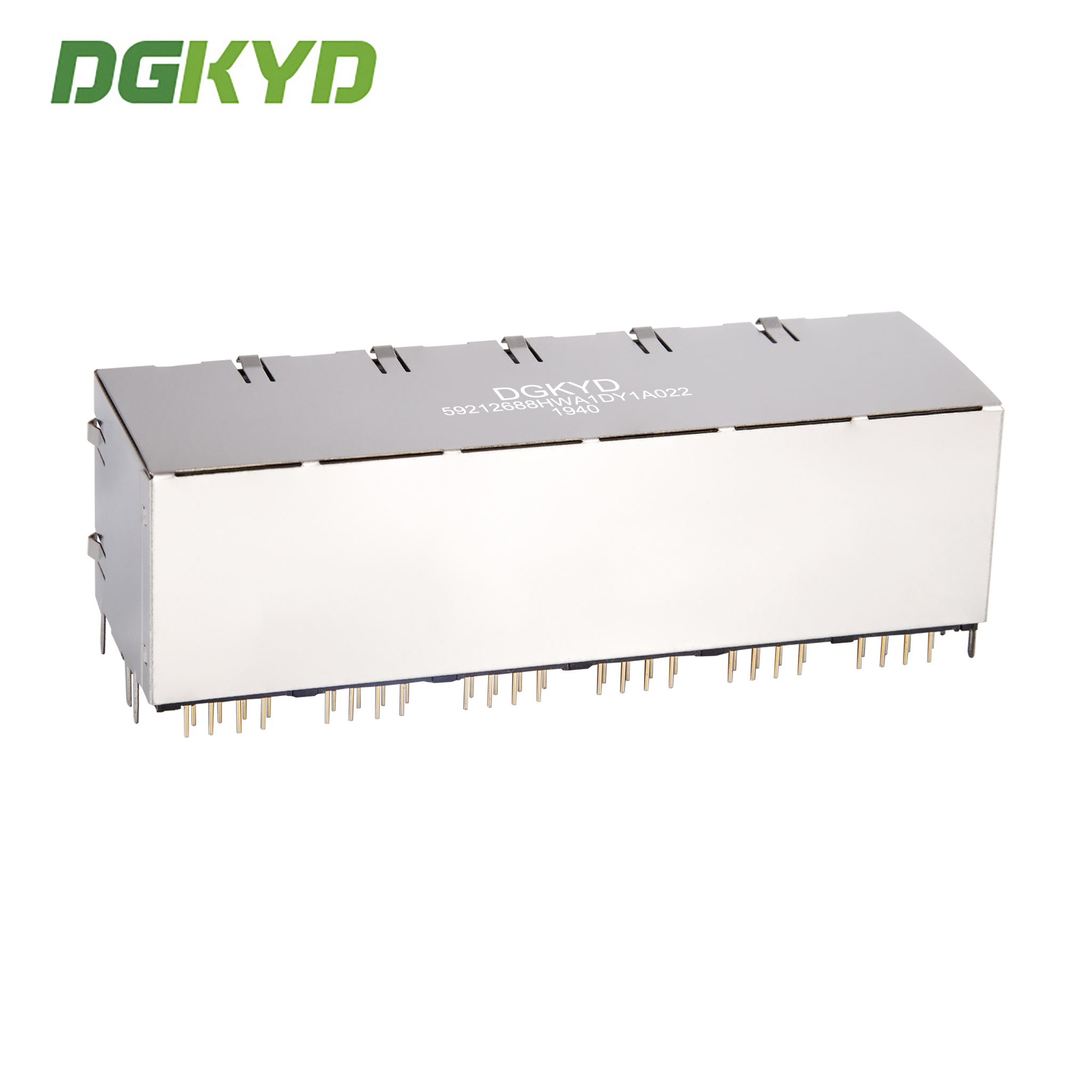

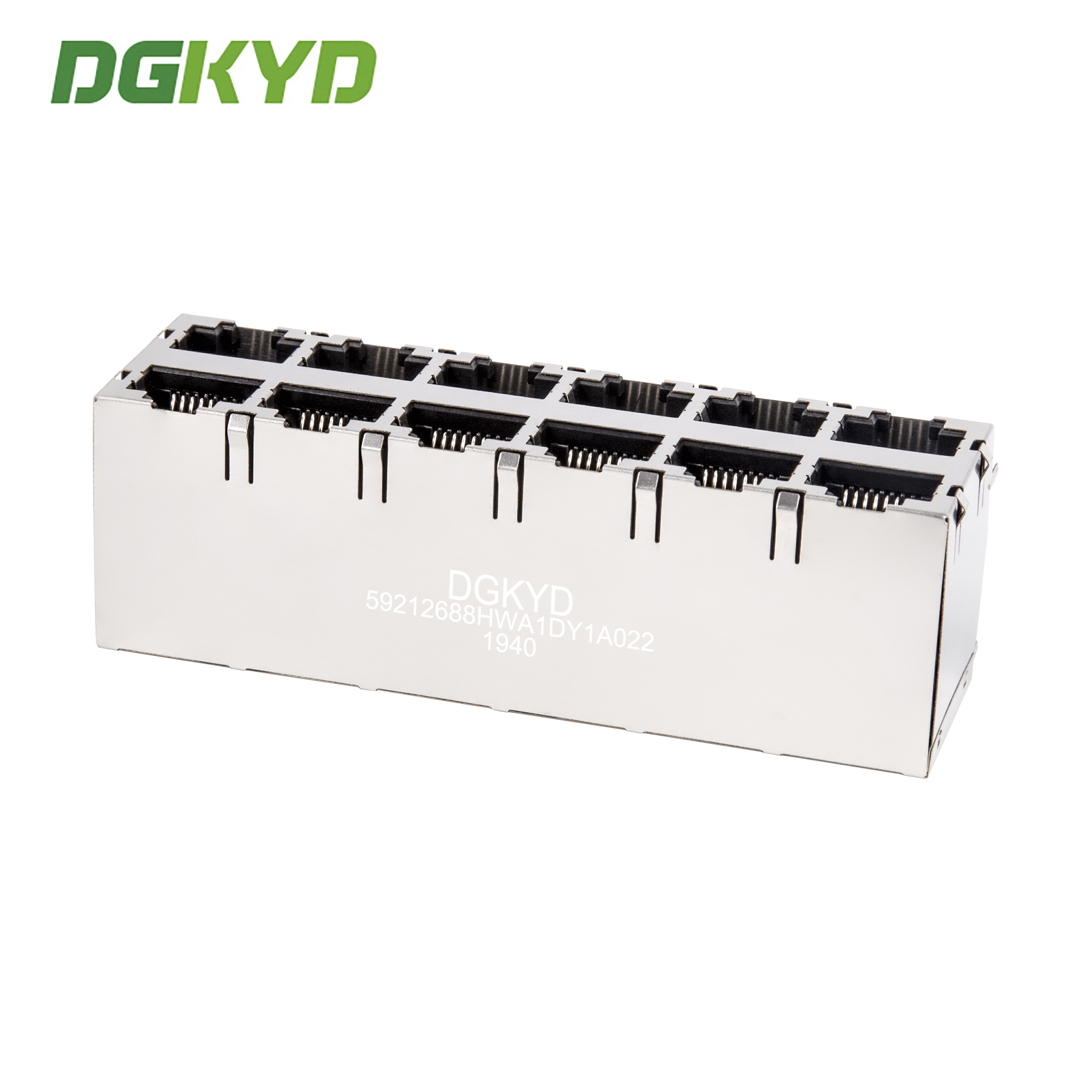

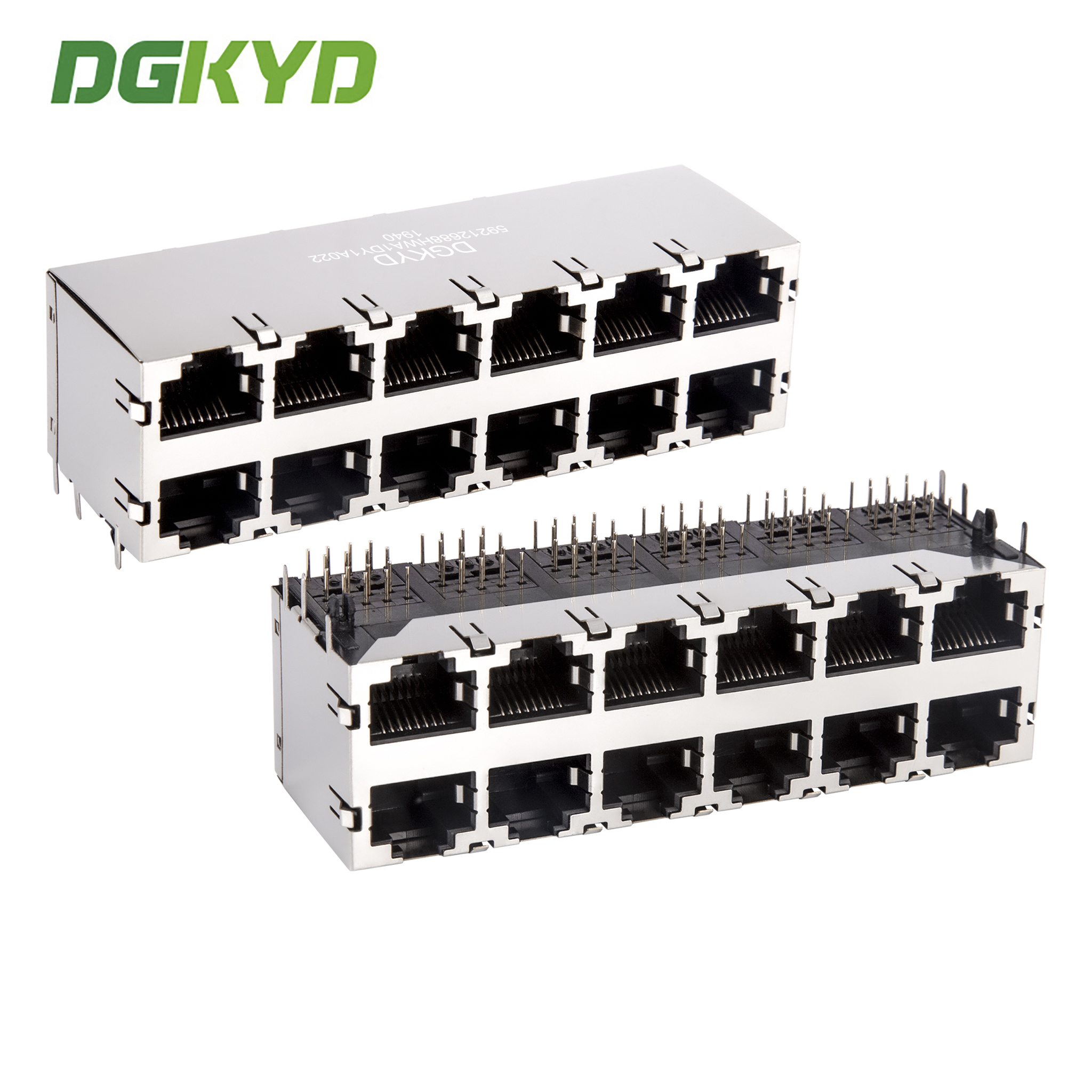

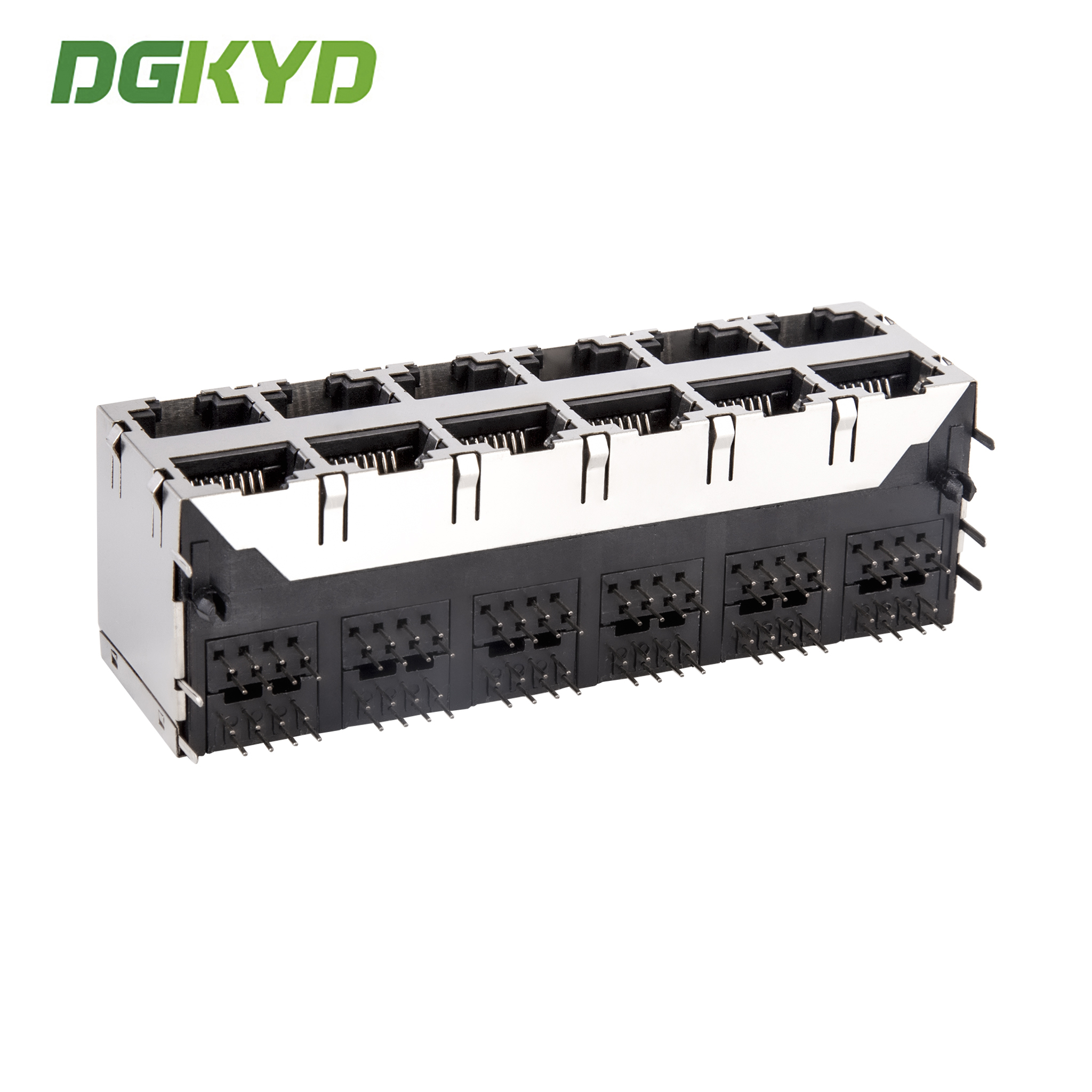

RJ45 multi port female connector 2X6 network interface socket DGKYD59212688HWA1DY1A022

الحد الأدنى لكمية :	قطعة واحدة	الأسعار :	Please contact us to get the latest price.
تفاصيل التغليف :	علبة في الكرتون	وقت التسليم :	10 أيام
شروط الدفع :	T/T ، D/P ، D/A ، L/C ، Western Union ، Moneygram	القدرة على العرض :	100 كيلو أجهزة كمبيوتر/يوم

مكان المنشأ:	دونغغوان الصين	اسم العلامة التجارية:	DGKYD
إصدار الشهادات:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	رقم الموديل:	DGKYD59212688HWA1DY1A022

معلومات تفصيلية
ذيول الجندي:	ن/أ	شفة:	لا
عدد المنافذ:	2 × 6	روهز:	نعم
أداء:	CAT3	توجيه:	كومة
جبل ستايل:	تراجع	تصنيع المعدات الأصلية/تصميم وتصنيع:	نعم
عدد المواقف/جهات الاتصال:	8P8c (RJ45 ، إيثرنت)	طلاء الذهب على دبابيس الاتصال:	ز / فو
درجة حرارة التخزين:	-40 درجة مئوية ~+85 درجة مئوية	درجة حرارة التشغيل:	-40 درجة مئوية ~+85 درجة مئوية
إبراز:	RJ45 multi port female connector,2X6 network interface socket,RJ45 socket without transformer , 2X6 network interface socket , RJ45 socket without transformer

منتوج وصف

RJ45 Multi Port Female Connector 2X6 Network Interface Socket DGKYD59212688HWA1DY1A022

Product Drawing

RJ45 multi port female connector 2X6 network interface socket DGKYD59212688HWA1DY1A022

Product Specification Document: DGKYD59212688HWA1DY1A022.pdf

Product Parameters

Part Number	DGKYD59212688HWA1DY1A022	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP/DOWN
Filter	Without Filter	LED Option	Without LED
LED Color	No	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	2X6 Ports	Number of Positions	8
Jack Configuration	2X6	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold G/Fu	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Product Strengths

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead free soldering: wave soldering height up to 265℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

Business mode: Manufacturer
Delivery time: on time delivery, around two weeks
Specs for choices:
- LED indicator light (green, yellow, red, orange, blue, bi-color LED)
- Shield with EMI fingers or not
- Coil ratio of magnetic core
- Magnetics circuit diversification optional
- Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
- Plastic housing material (PBT,PA46,PA9T, LCP)
The electrical properties meet industry standards, appearance and mechanical properties meet manufacturing standards, and environmental protection standards

Frequently Asked Questions

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
