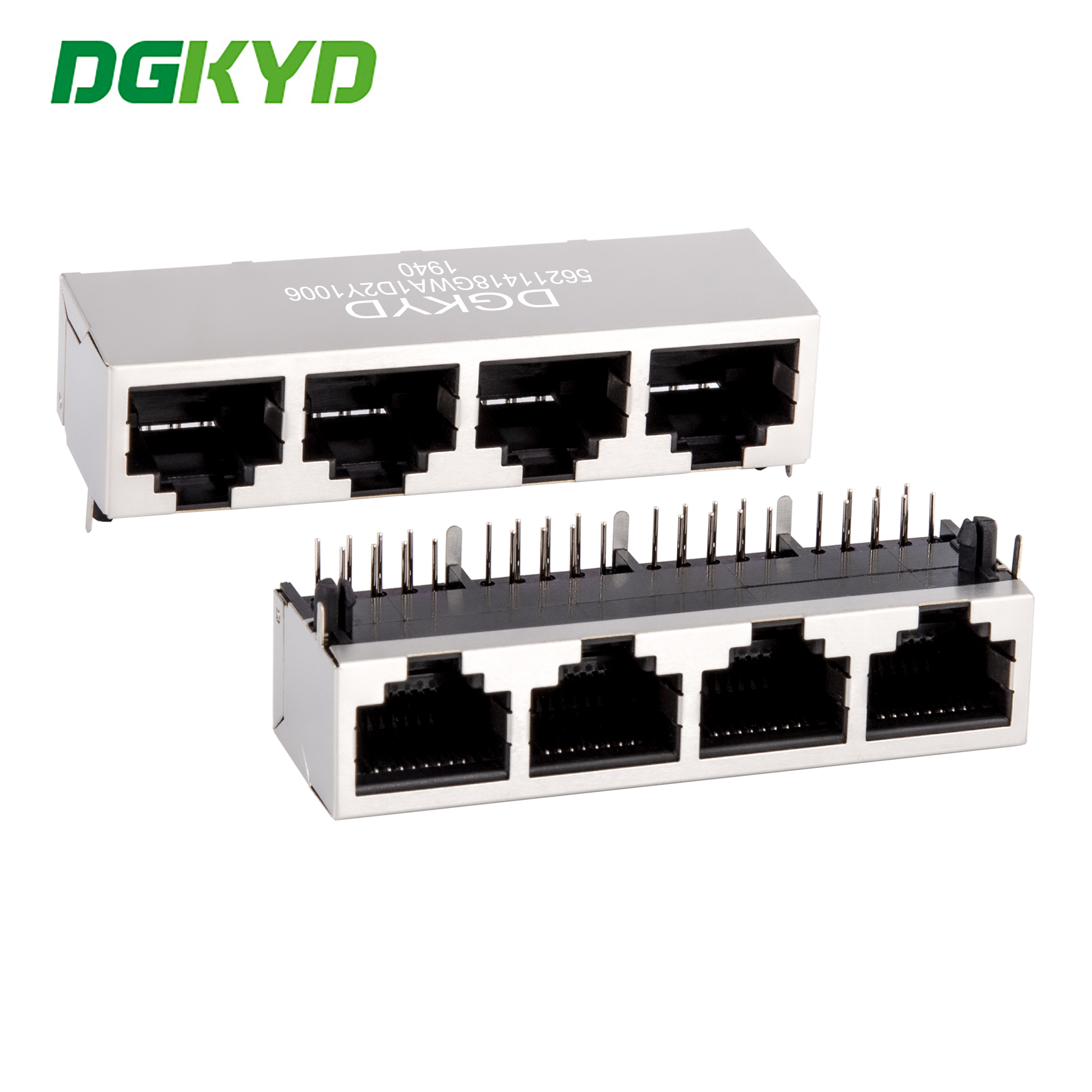

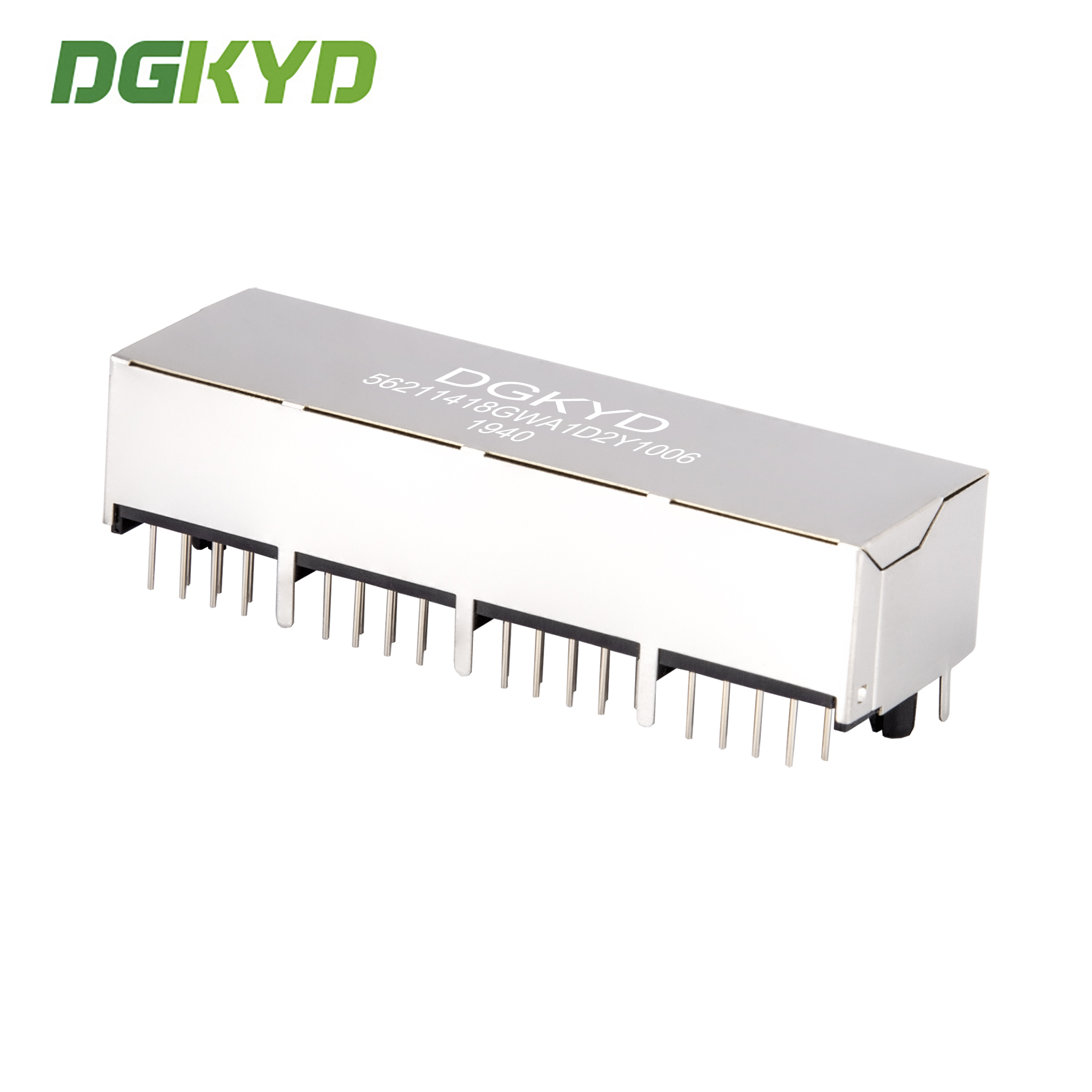

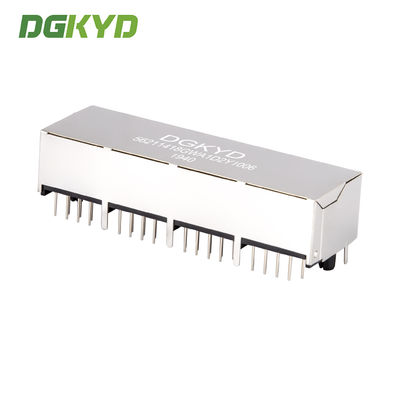

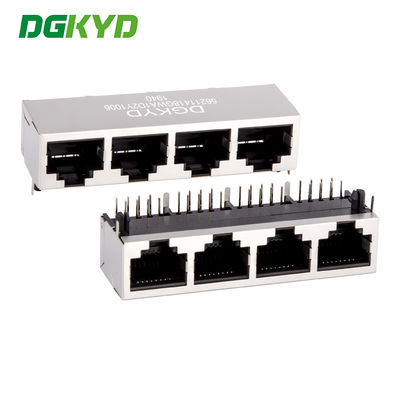

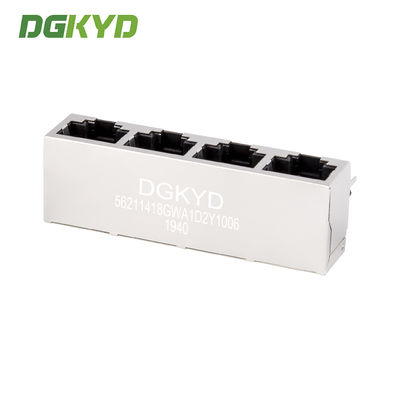

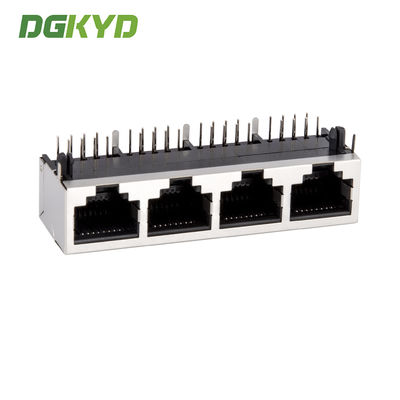

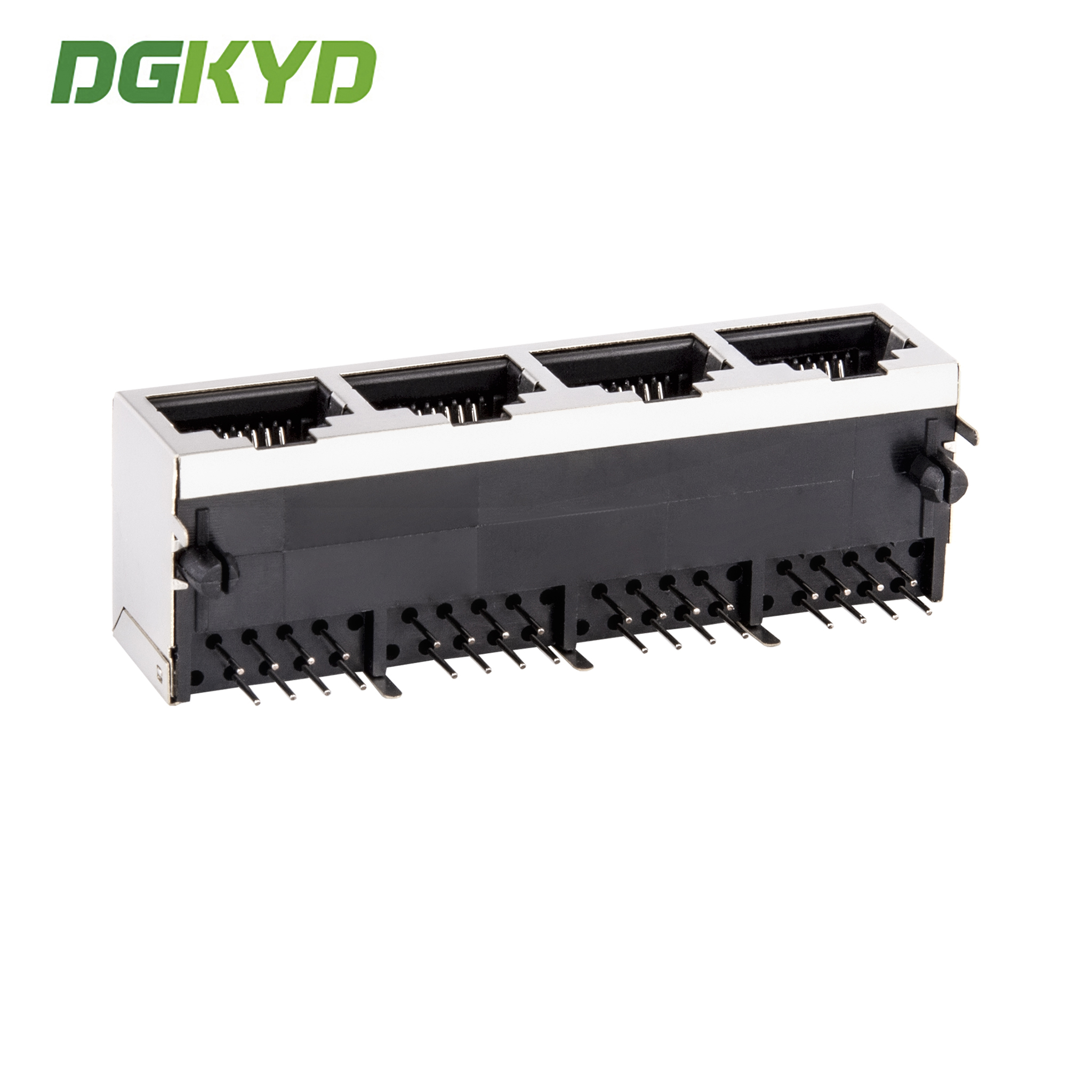

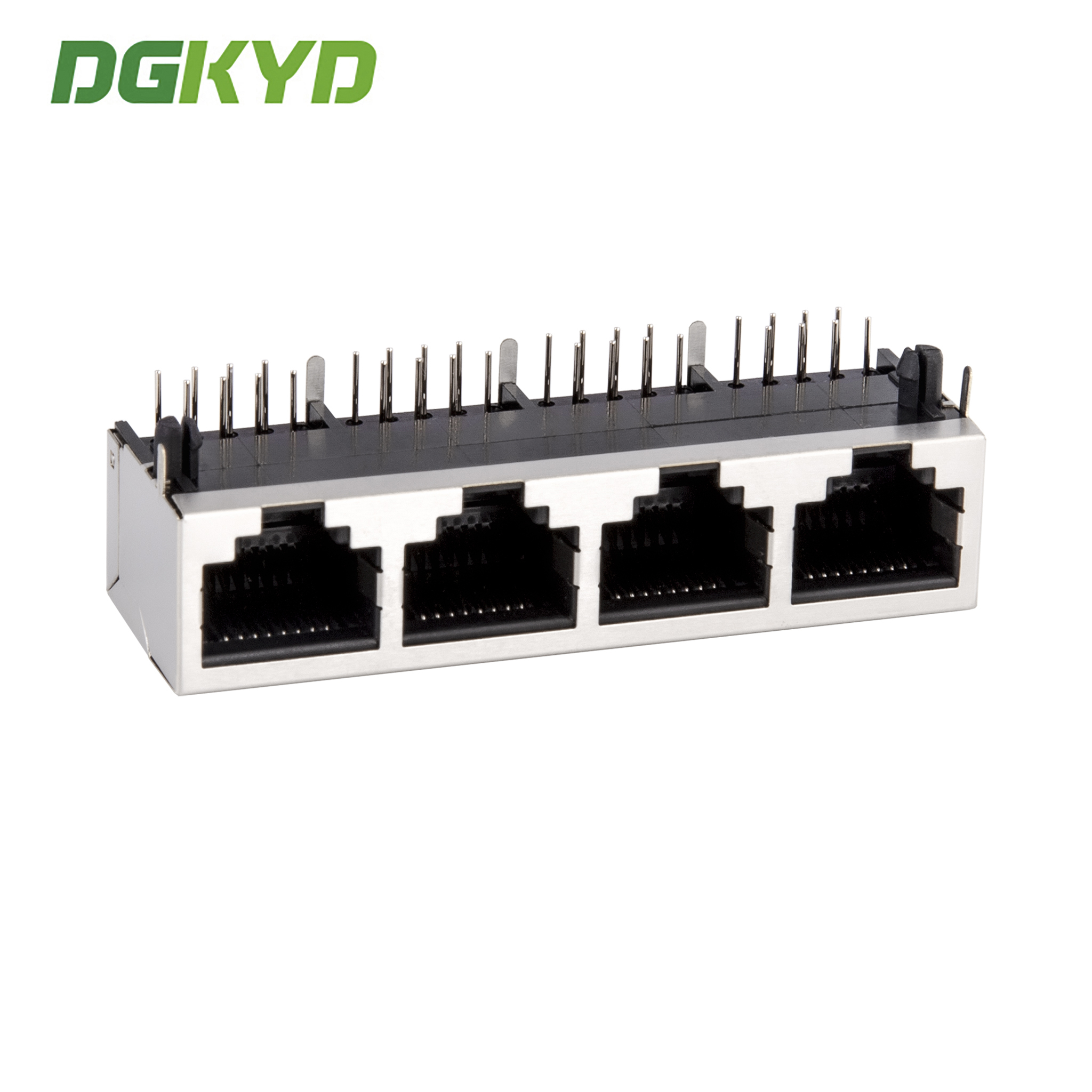

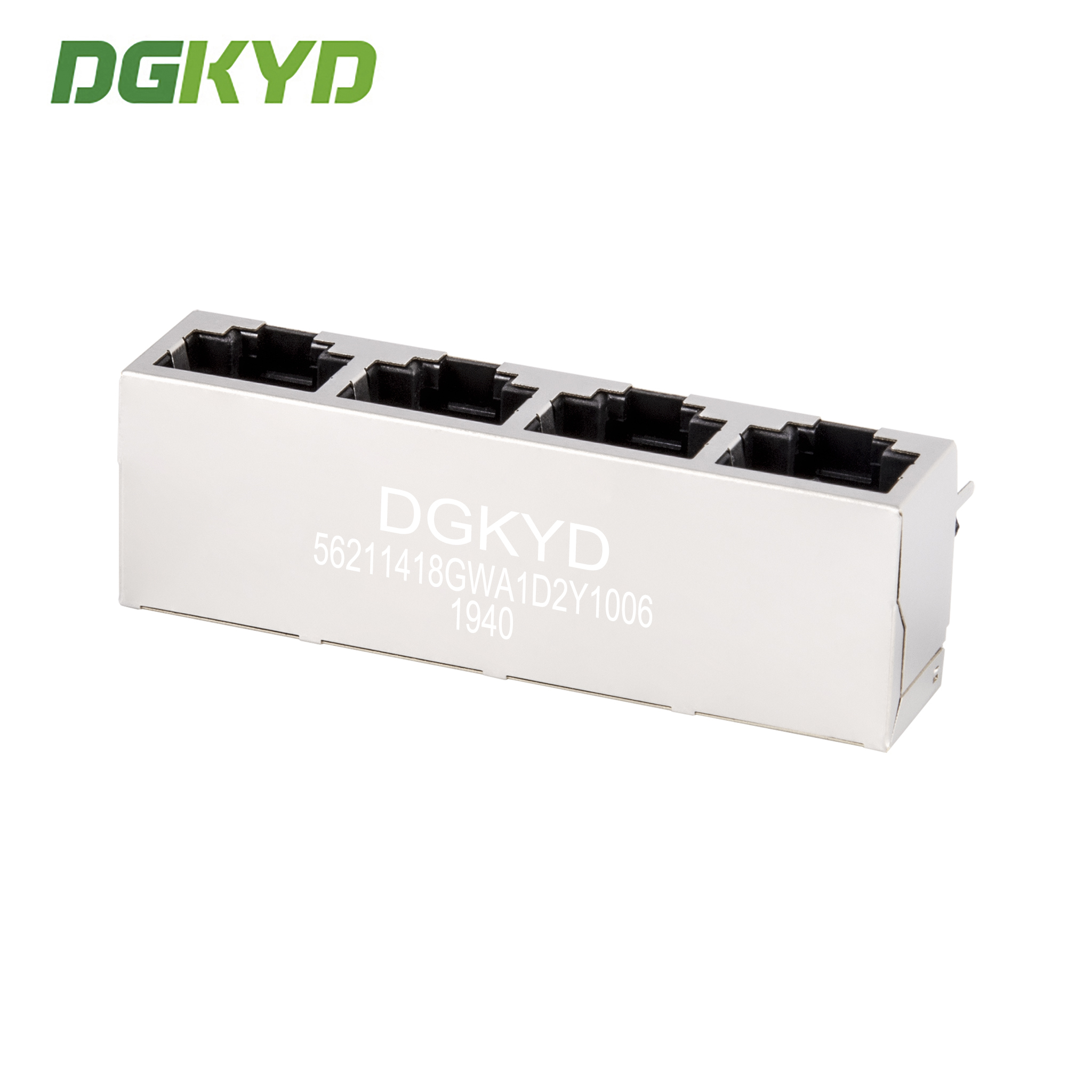

1X4 Ethernet shielded connector RJ45 female socket horizontal interface DGKYD56211418GWA1D2Y1006

الحد الأدنى لكمية :	قطعة واحدة	الأسعار :	Please contact us to get the latest price.
تفاصيل التغليف :	علبة في الكرتون	وقت التسليم :	10 أيام
شروط الدفع :	T/T ، D/P ، D/A ، L/C ، Western Union ، Moneygram	القدرة على العرض :	100 كيلو أجهزة كمبيوتر/يوم

مكان المنشأ:	دونغغوان الصين	اسم العلامة التجارية:	DGKYD
إصدار الشهادات:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	رقم الموديل:	DGKYD56211418GWA1D2Y1006

معلومات تفصيلية
اسم المنتج:	4 منفذ RJ45 جاك	خجول:	نعم
عدد المواقف:	10	عدد جهات الاتصال التي تم تحميلها:	8
تطبيق:	الاتصالات، المودم، HomePNA، DSL/ADSL	سرعة:	القط 3/5
مزلاج:	TAB-down	جبل ستايل:	تراجع
تصنيع المعدات الأصلية/تصميم وتصنيع:	نعم	عدد المواقف/جهات الاتصال:	8P10C (RJ45 ، Ethernet)
طلاء الذهب على دبابيس الاتصال:	ز / فو	درجة حرارة التخزين:	-40 درجة مئوية ~+85 درجة مئوية
درجة حرارة التشغيل:	-40 درجة مئوية ~+85 درجة مئوية
إبراز:	56 Series RJ45 female socket,shielded Ethernet connector horizontal,RJ45 interface with warranty , shielded Ethernet connector horizontal , RJ45 interface with warranty

منتوج وصف

1X4 Ethernet Shielded Connector RJ45 Female Socket Horizontal Interface DGKYD56211418GWA1D2Y1006

Product Description

Drawing: 1X4 Ethernet shielded connector RJ45 female socket horizontal interface DGKYD56211418GWA1D2Y1006

Product Specification Document: DGKYD56211418GWA1D2Y1006.pdf

Parameters

Part Number	DGKYD56211418GWA1D2Y1006	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-DOWN
Filter	Without Filter	LED Option	Without LED
LED Color	No	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	1X4 Ports	Number of Positions	8
Jack Configuration	1X4	Terminals per Port	10
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold G/Fu	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Our Strengths

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead free soldering: wave soldering height up to 265℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

Business mode: Manufacturer
Delivery time: on time delivery, around two weeks.
Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED) Shield with EMI fingers or not coil ratio of magnetic core magnetics circuit diversification optional contact gold plating (FU, 3U, 6U, 15u, 30U, 50U) plastic housing material (PBT,PA46,PA9T, LCP)
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
