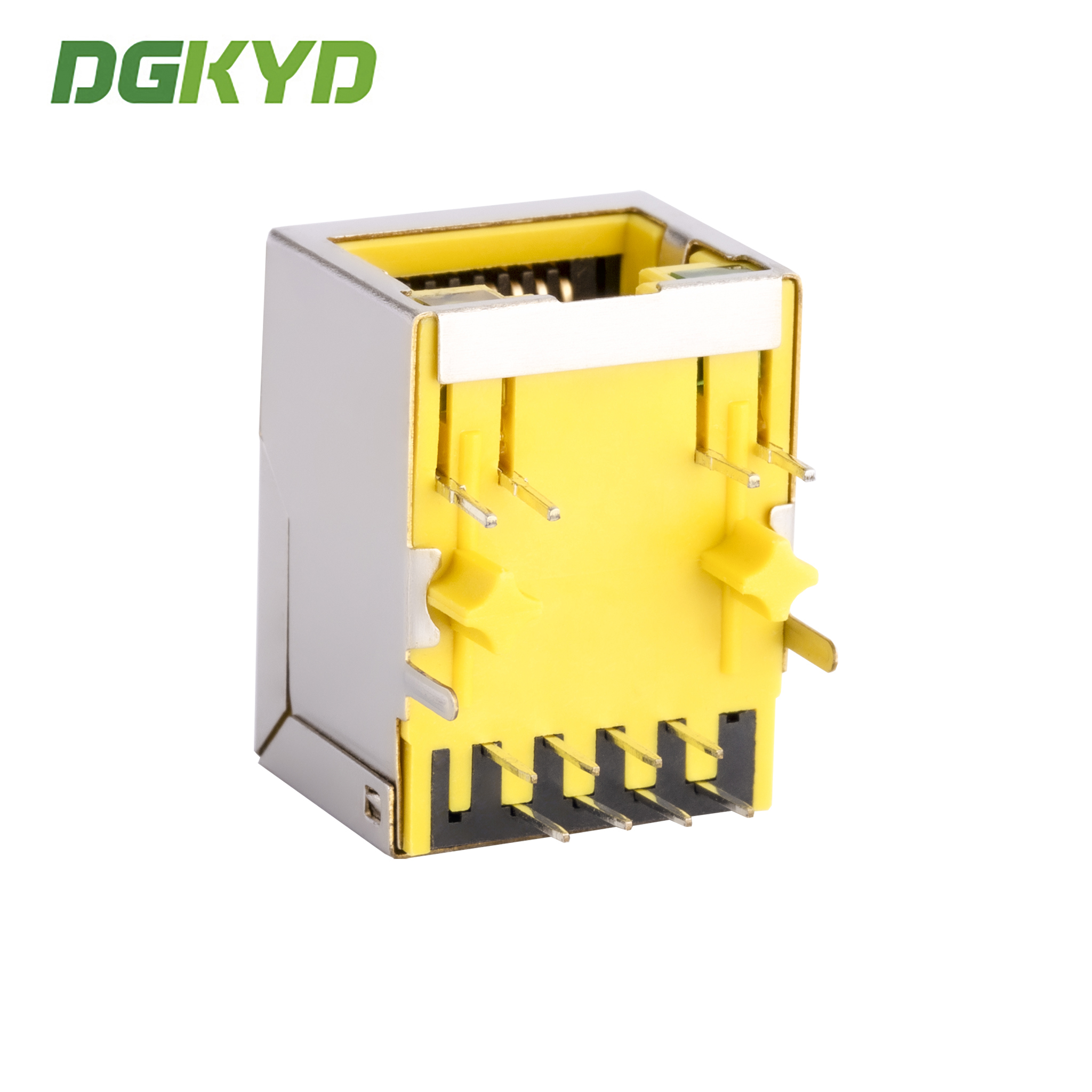

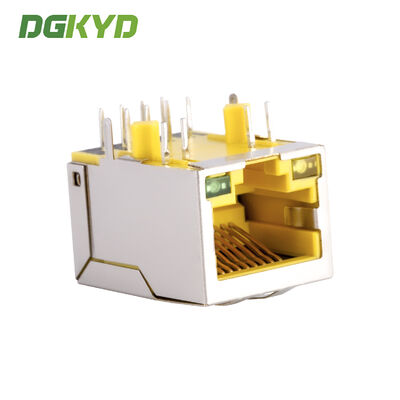

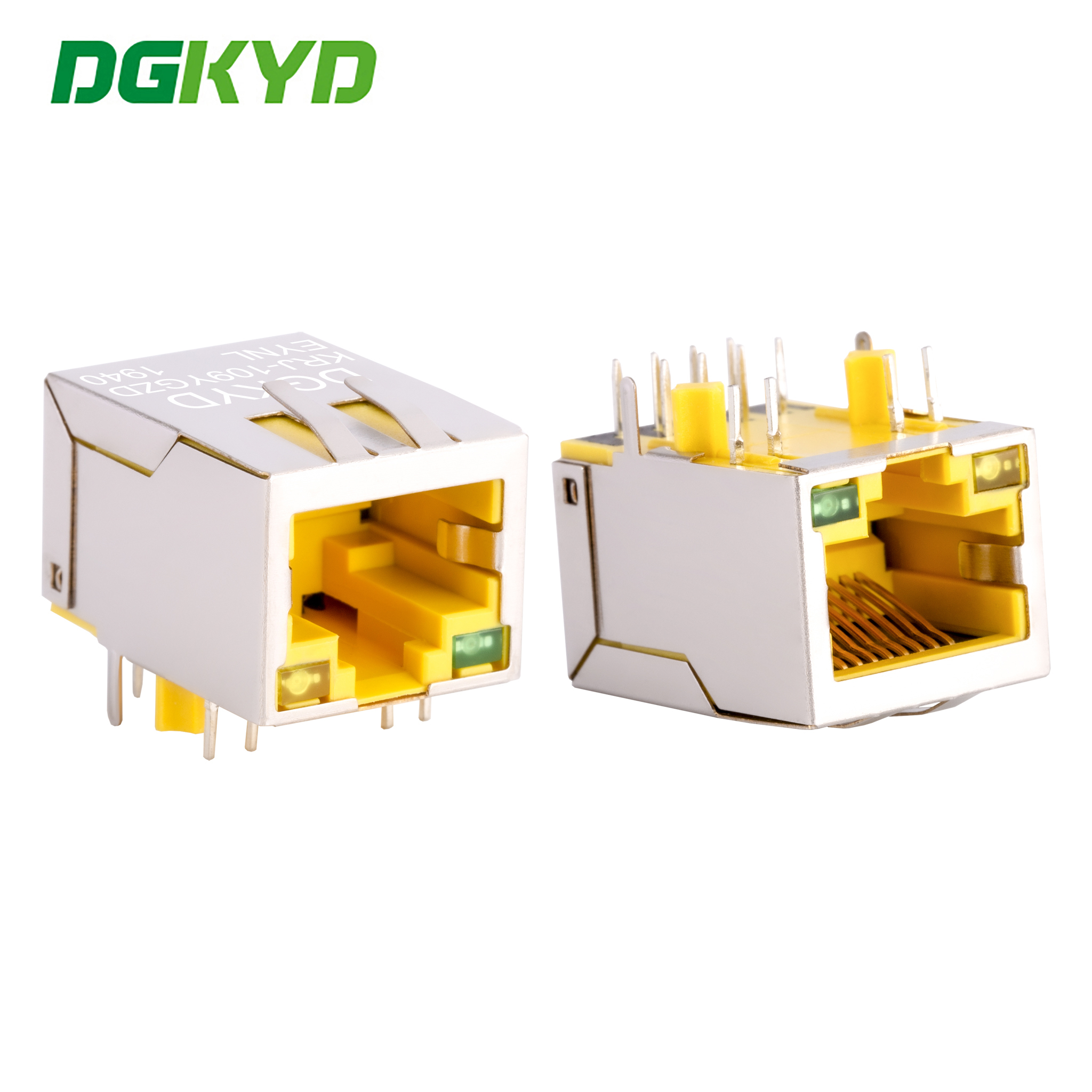

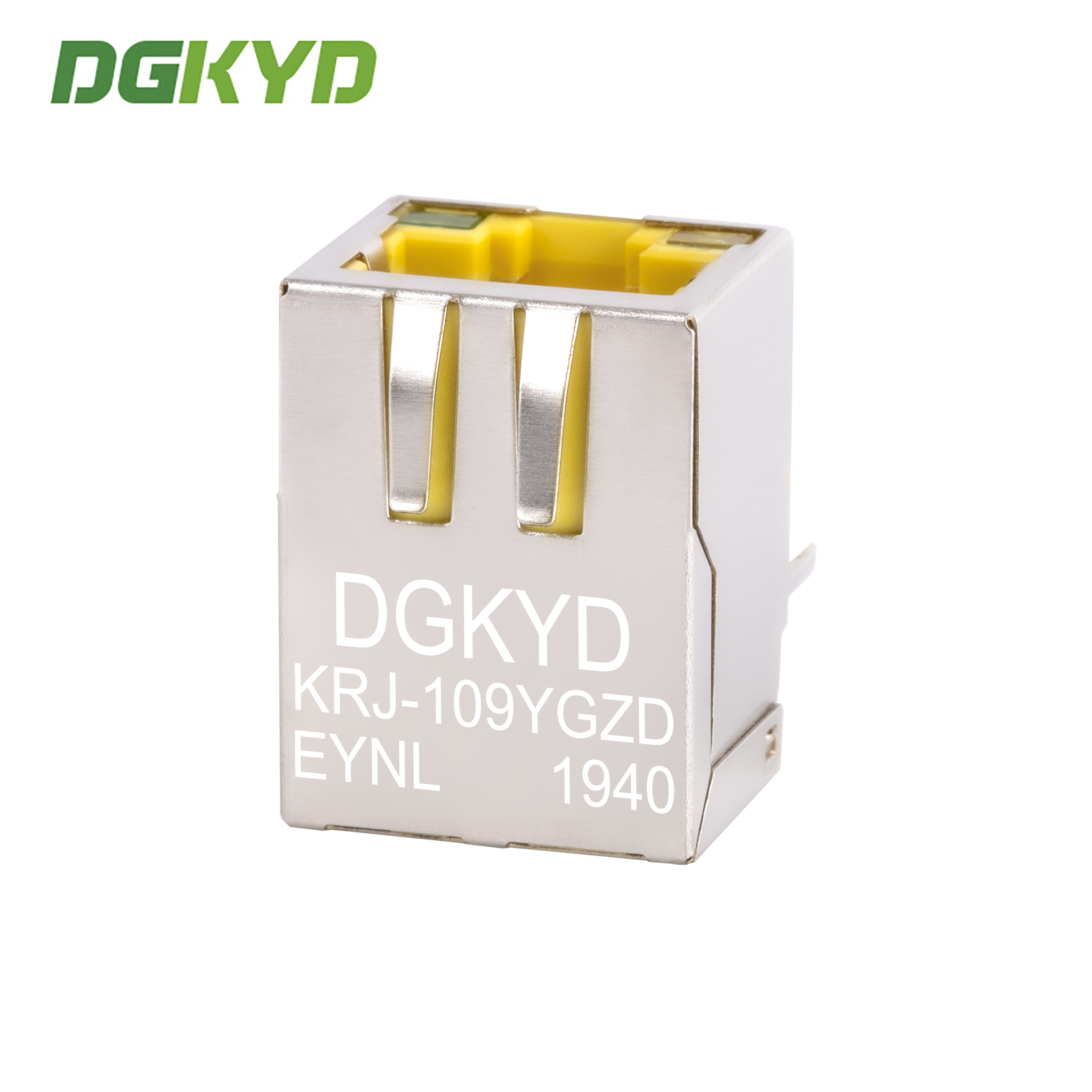

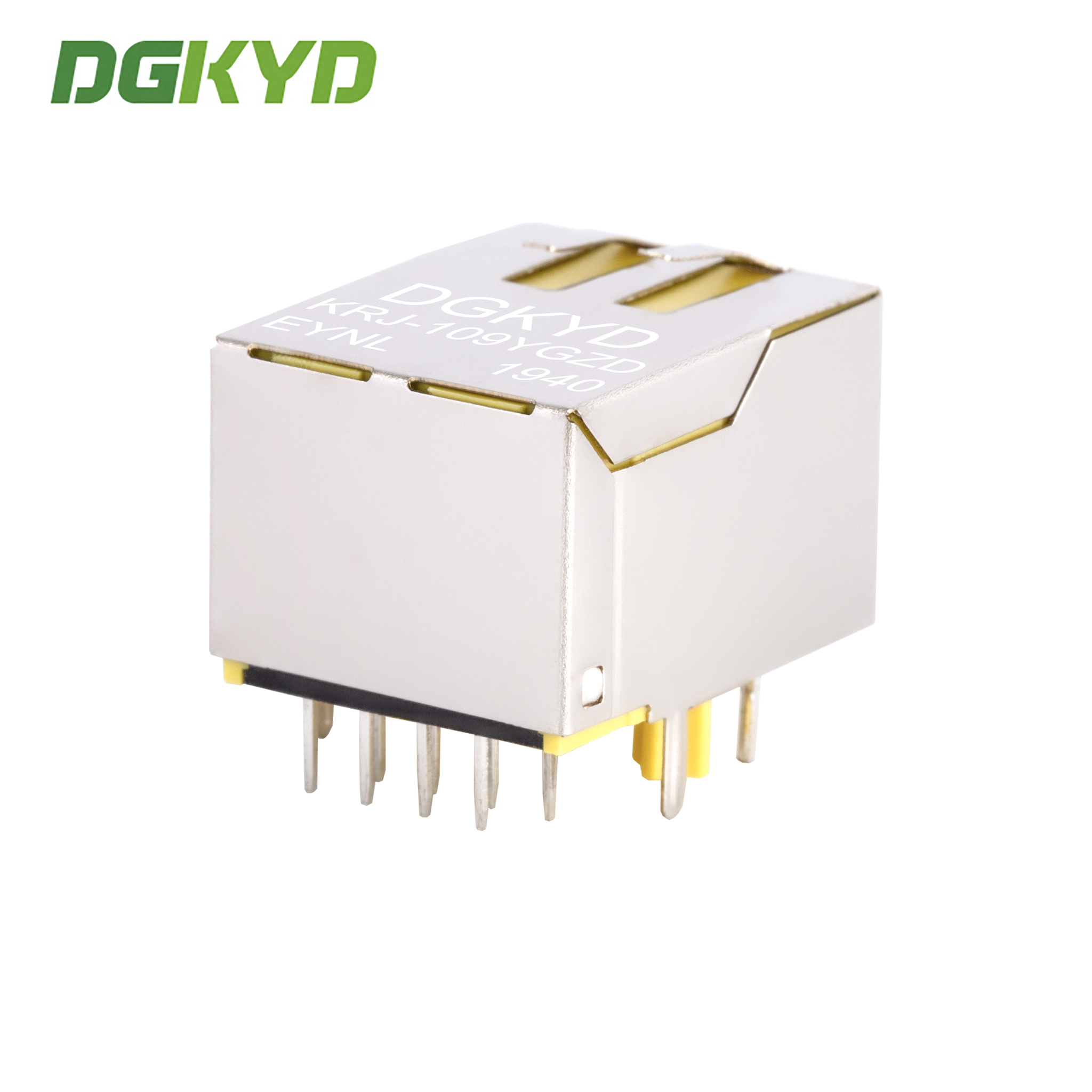

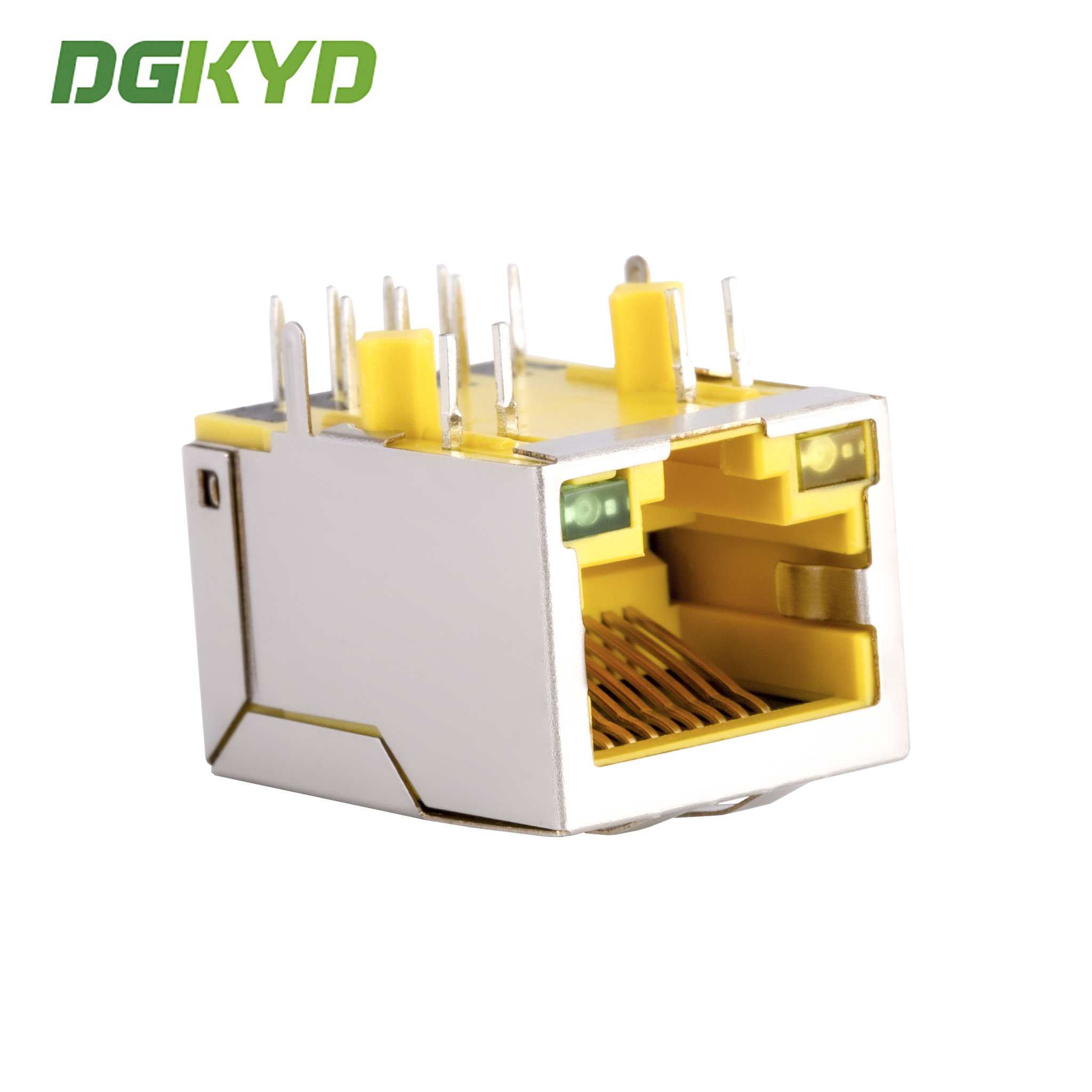

10/100 baseT RJ45 connector industrial Ethernet socket PCB connector with LAN Filter for Adsl, yellow housing KRJ-109YGZDEYNL

الحد الأدنى لكمية :	1 قطعة	الأسعار :	Please contact us to get the latest price.
تفاصيل التغليف :	علبة في الكرتون	وقت التسليم :	10 أيام
شروط الدفع :	T/T ، D/P ، D/A ، L/C ، Western Union ، Moneygram	القدرة على العرض :	100 كيلو أجهزة كمبيوتر/يوم

مكان المنشأ:	دونغغوان الصين	اسم العلامة التجارية:	DGKYD
إصدار الشهادات:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	رقم الموديل:	KRJ-109YGZDEYNL

معلومات تفصيلية
اسم المنتج:	RJ45 مع المحول	السكن:	الفينول، PBT الأصفر (UL94V-0)
لب من البلاستيك:	حشو الألياف الزجاجية PBT أصفر (UL94V-0)، ROHS	درع RJ45:	نعم
رقم المنفذ:	1X1	يكتب:	جاك أنثى
قاد:	أصفر/أخضر	عدد المواقف/جهات الاتصال:	8P8c (RJ45 ، إيثرنت)
طلاء الذهب على دبابيس الاتصال:	6U	درجة حرارة التشغيل:	-40 درجة مئوية ~+85 درجة مئوية
درجة حرارة التخزين:	- 40 ℃ ~ 85 ℃
إبراز:	industrial RJ45 connector with LAN filter,RJ45 PCB connector for Ethernet,yellow housing RJ45 socket with transformer , RJ45 PCB connector for Ethernet , yellow housing RJ45 socket with transformer

منتوج وصف

10/100 baseT RJ45 Connector Industrial Ethernet Socket PCB Connector with LAN Filter for Adsl, Yellow Housing KRJ-109YGZDEYNL

Part Number	KRJ-109YGZDEYNL	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-DOWN
Filter	With Filter	LED Option	With LED
LED Color	Yellow/Green	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	1X1 Ports	Number of Positions	8
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Yellow
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

RJ45 connector maintains good contact between gold finger and crystal head by gold plating on the surface. Standard plating is 6u, with options for 15u, 30u, or 50u available per customer request and cost considerations. Gold finger insert and pull life exceeds 750 cycles.

LED Specifications

Emitting Color	Dominant Wavelength (nm)	Forward Voltage (V)	Forward Current (A)	Type
Green	570-575	1.8-2.4	20mA	Squareness
Yellow	585-590	1.8-2.4	20mA	Squareness

Product Features

Interface type: Crystal head application for 10/100/1000BASE-T Ethernet
Type: RJ45 with built-in magnetics
Working frequency: High frequency characteristics with filtering and anti-interference
Operating temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead-free soldering: Wave soldering height up to 265℃

Manufacturing Capabilities

Business model: Direct manufacturer
Delivery time: Approximately two weeks for standard delivery
Customization options:
- LED indicator colors (green, yellow, red, orange, blue, bi-color)
- EMI shielding options
- Magnetic core coil ratio variations
- Multiple magnetic circuit options
- Contact gold plating options (3U, 6U, 15U, 30U, 50U)
- Housing material options (PBT, PA46, PA9T, LCP)
Products meet industry standards for electrical properties, mechanical specifications, and environmental compliance
