| الحد الأدنى لكمية : | 1 قطعة | الأسعار : | Please contact us to get the latest price. |
|---|---|---|---|
| تفاصيل التغليف : | علبة في الكرتون | وقت التسليم : | 10 أيام |
| شروط الدفع : | T/T ، D/P ، D/A ، L/C ، Western Union ، Moneygram | القدرة على العرض : | 100 كيلو أجهزة كمبيوتر/يوم |
| مكان المنشأ: | دونغغوان الصين | اسم العلامة التجارية: | DGKYD |
|---|---|---|---|
| إصدار الشهادات: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | رقم الموديل: | DGKYD56211164IWA1DY4 |
|
معلومات تفصيلية |
|||
| فئة: | الرافعات المعيارية | نوع المكون: | جاك ثنائي الفينيل متعدد الكلور |
|---|---|---|---|
| يكتب: | منفذ RJ11 | مغناطيسي: | لا أحد |
| فئة الأداء: | القط 3 5 | نوع الإدخال: | دخول جانبي |
| جبل ستايل: | تراجع | تصنيع المعدات الأصلية/تصنيع التصميم الشخصي: | نعم |
| عدد المواقف/جهات الاتصال: | 6P4c (RJ11، إيثرنت) | طلاء الذهب على دبابيس الاتصال: | 6U |
| درجة حرارة التخزين: | -40 درجة مئوية ~+85 درجة مئوية | درجة حرارة التشغيل: | -40 درجة مئوية ~+85 درجة مئوية |
| إبراز: | RJ11 connector 6P4C all plastic,industrial RJ11 jack lightless,RJ11 network port with warranty,industrial RJ11 jack lightless,RJ11 network port with warranty |
||
منتوج وصف

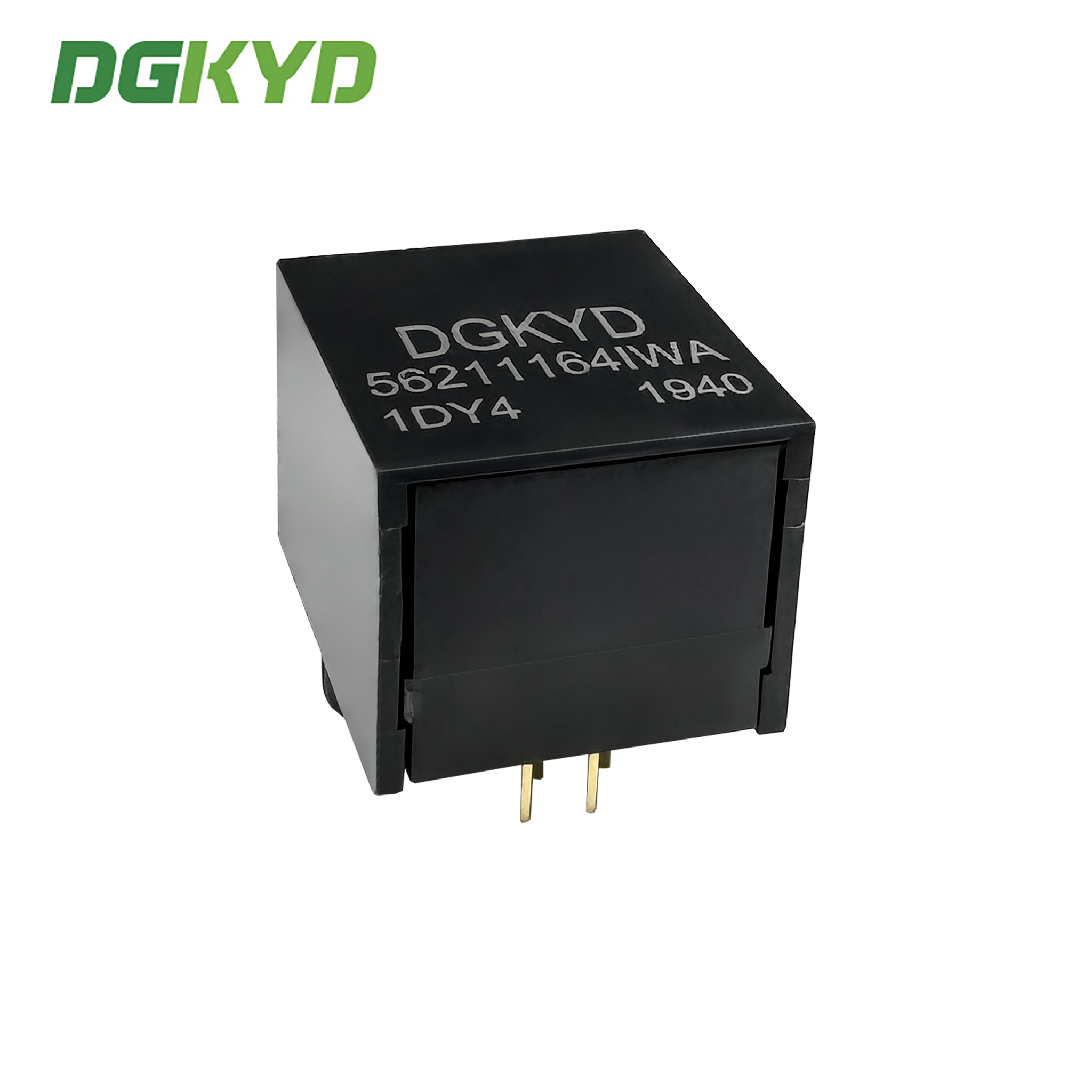

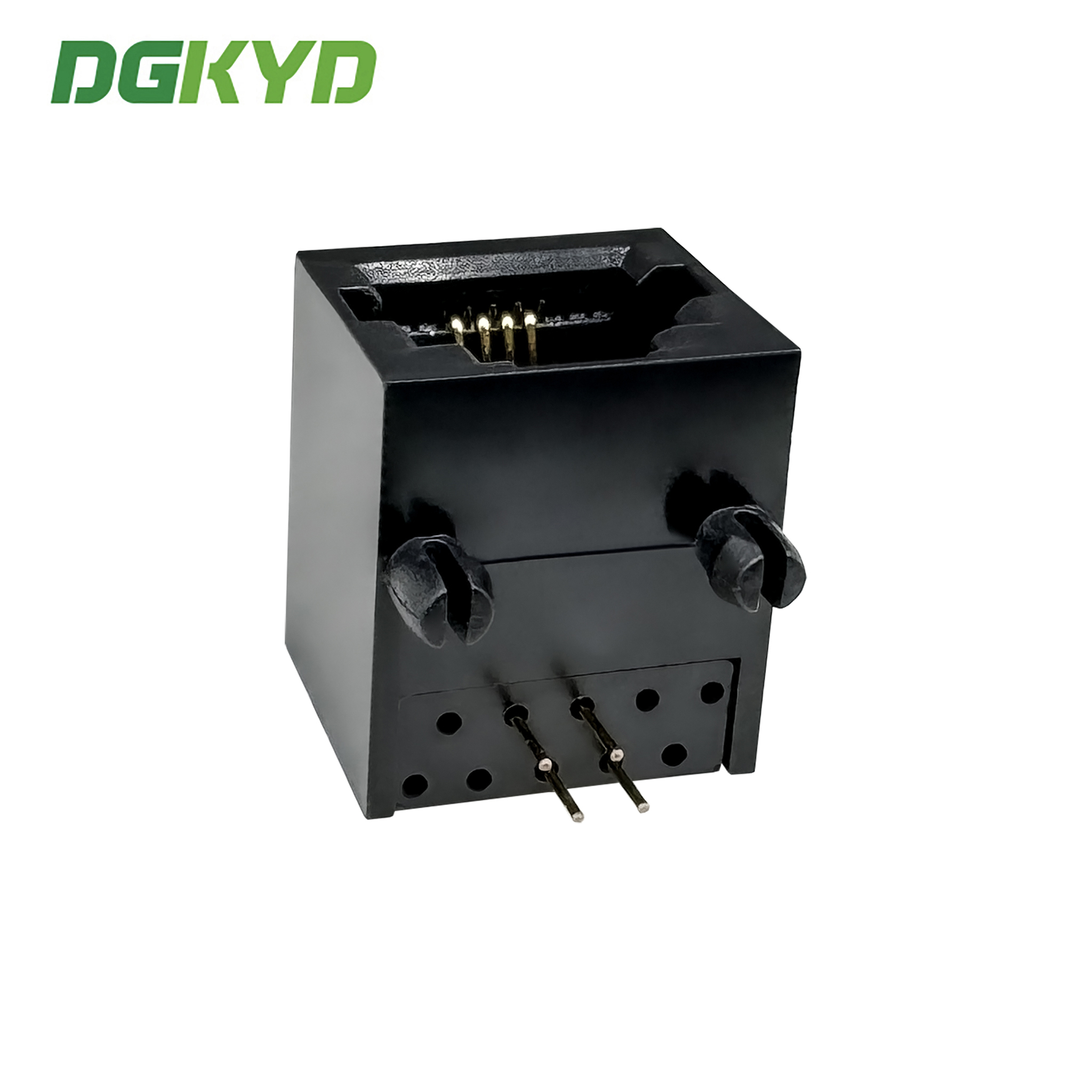

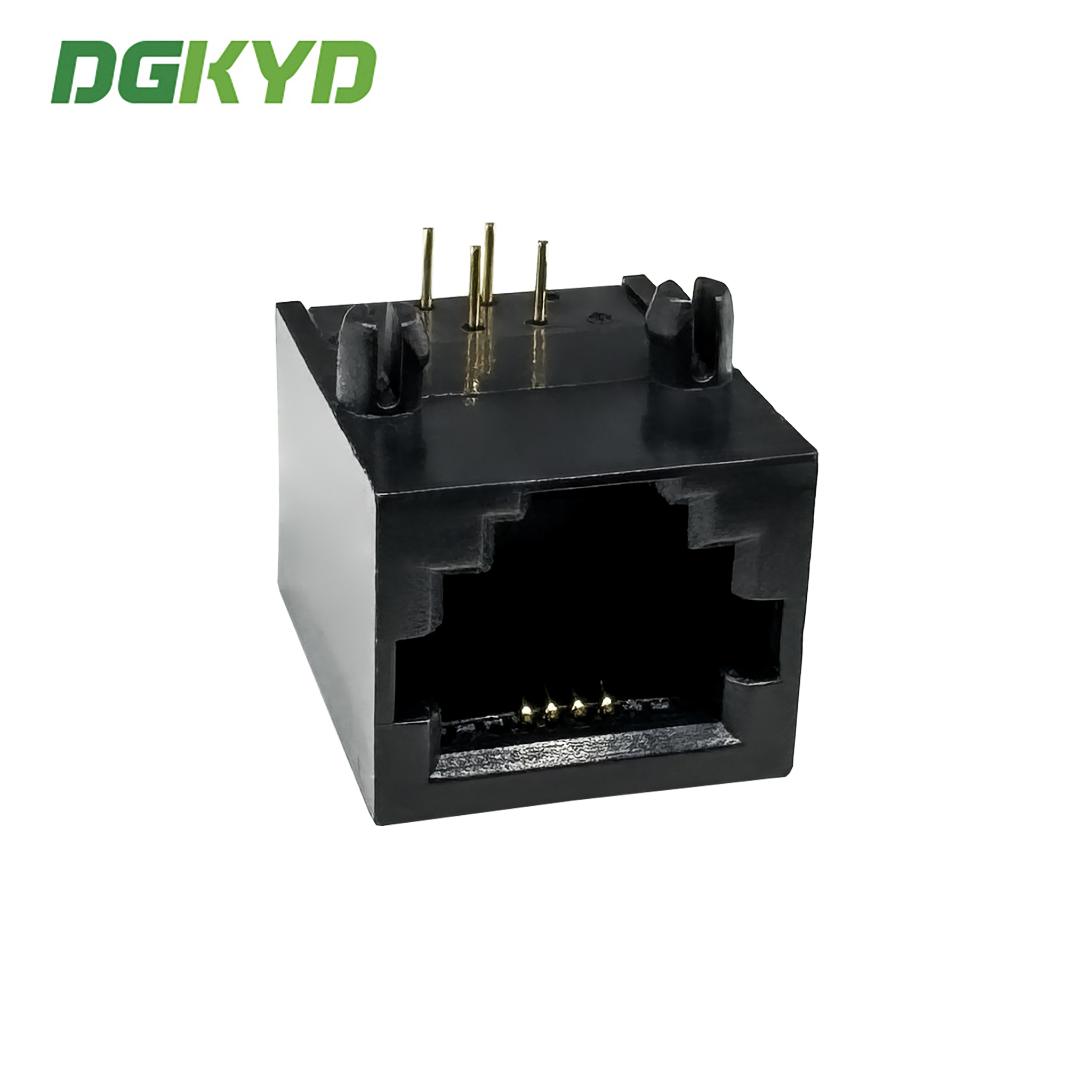

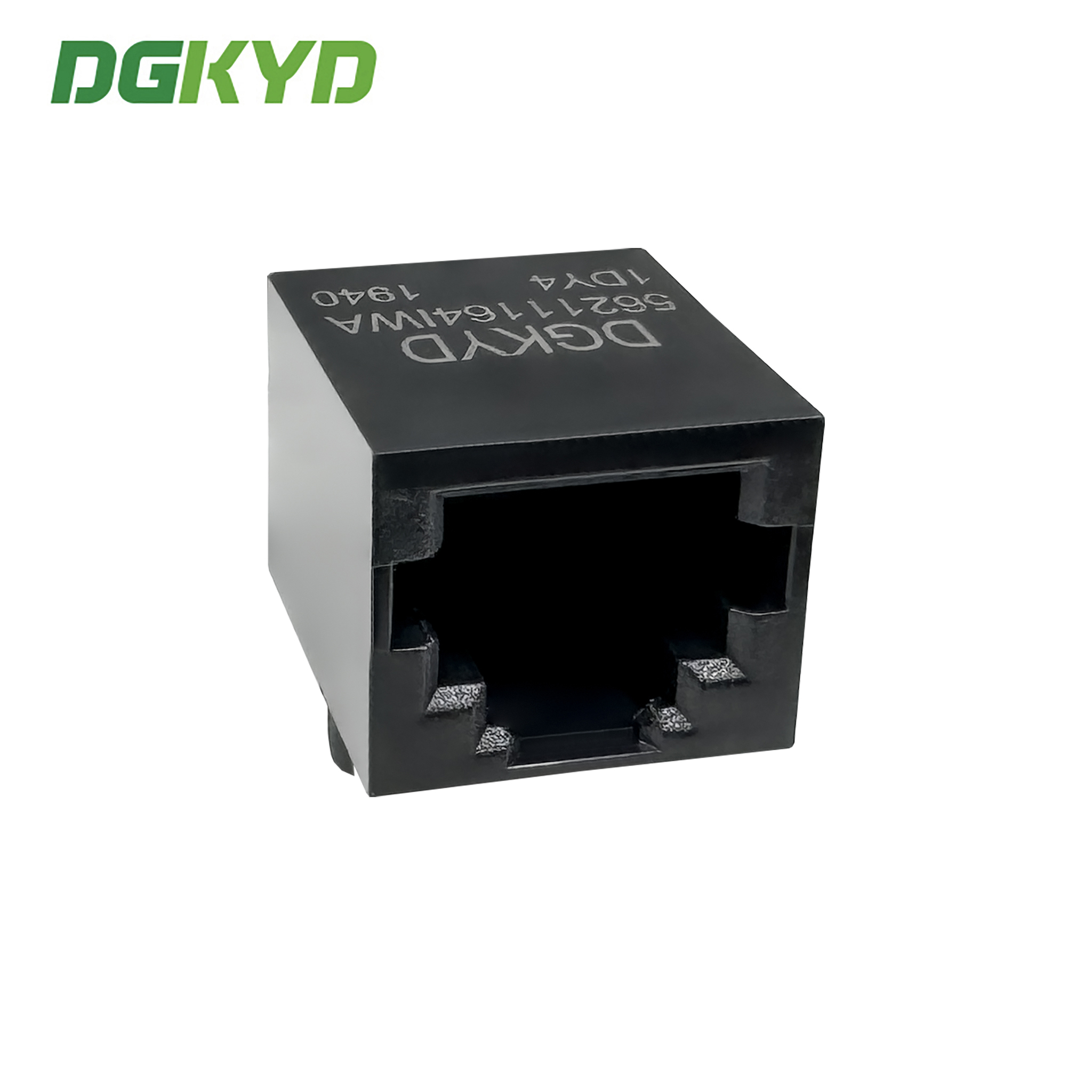

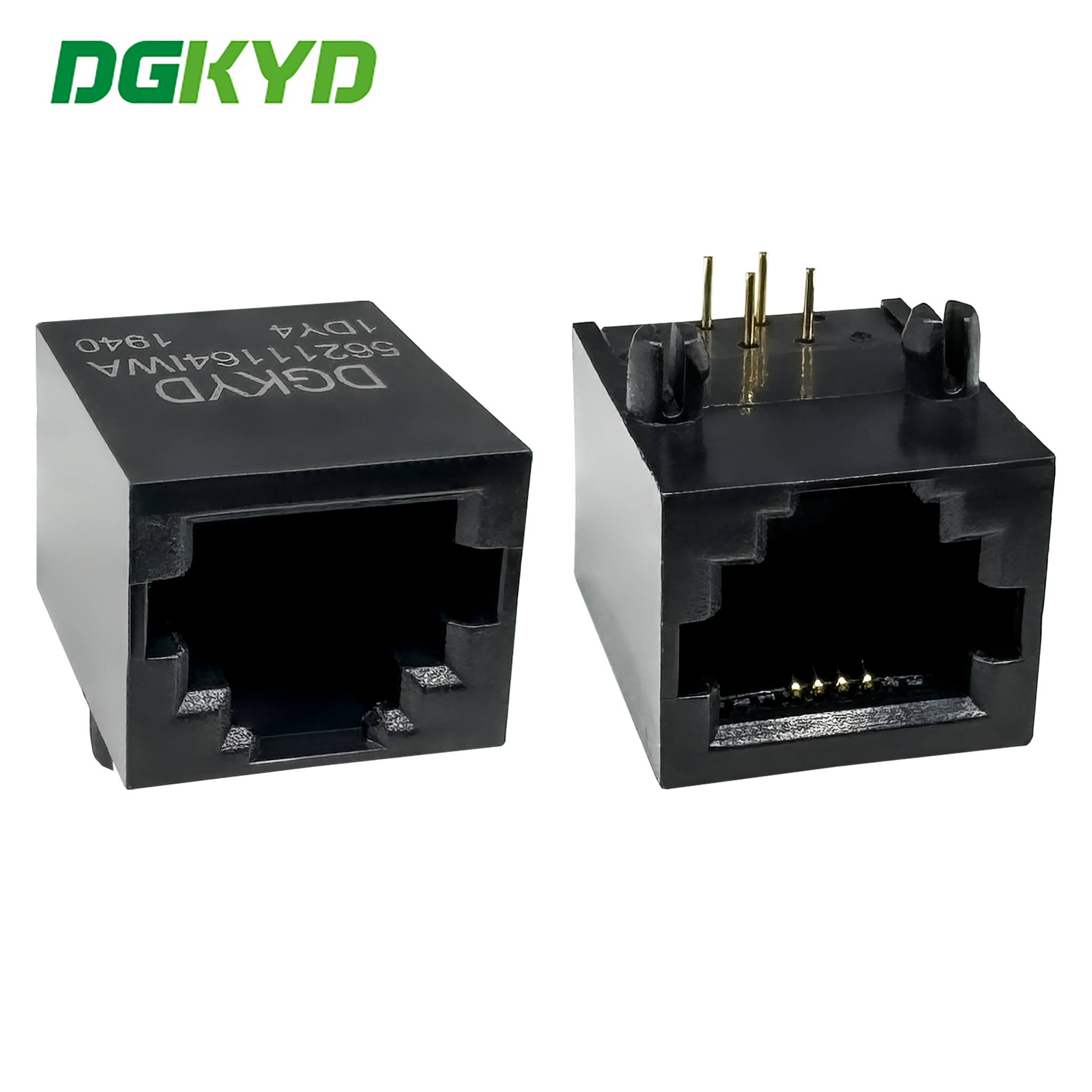

RJ11 interface connector 6P4C all plastic lightless industrial network port DGKYD56211164IWA1DY4
Product Datasheet (PDF)| Part Number | DGKYD56211164IWA1DY4 |
|---|---|
| Brand | DGKYD/OEM/ODM |
| Product Type | Connector-Modular |
| Connector Style | Jack |
| Jack Type | RJ11 |
| Connector Type | Modular Jack |
| Latch Style | Standard |
| Latch | TAB-DOWN |
| Filter | Without Filter |
| LED Option | Without LED |
| LED Color | No |
| Panel Stops | With Panel Stops |
| Shielded | Without metal shield |
| Applies To | Printed Circuit Board |
| Port Configuration | Single Ports |
| Number of Positions | 4 |
| Jack Configuration | 1X1 |
| Terminals per Port | 6 |
| Shield Material | Copper Alloy preplated with Nickel |
| PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating | Gold 6u |
| Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel |
| PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit |
| Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester |
| Housing Color | Black |
| Housing Material Temperature | Standard |
| UL Flammability Rating | UL 94V-0 |
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
A: We are manufacture. Welcome to our factory.
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
