| الحد الأدنى لكمية : | التفاوض | الأسعار : | Please contact us to get the latest price. |
|---|---|---|---|
| تفاصيل التغليف : | 1080صينية في الكرتون | وقت التسليم : | 10 أيام |
| شروط الدفع : | T/T ، D/P ، D/A ، L/C ، Western Union ، Moneygram | القدرة على العرض : | 100 كيلو أجهزة كمبيوتر/يوم |
| مكان المنشأ: | دونغغوان الصين | اسم العلامة التجارية: | DGKYD |
|---|---|---|---|
| إصدار الشهادات: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | رقم الموديل: | DGKYD211B175HWA4DZ |
|
معلومات تفصيلية |
|||
| نوع المنتج: | RJ45 | طريقة التغليف: | حزمة واحدة في الخط |
|---|---|---|---|
| نمط جبل ثنائي الفينيل متعدد الكلور: | تراجع | شكل: | المستطيل |
| درع: | النحاس | عدد الدبابيس: | 8 |
| عدد النوى: | 8 | البعد (مم): | 15.95*21.35*13.6 |
| طلاء الذهب على دبابيس الاتصال: | 6U | درجة حرارة التشغيل: | - 40 ℃ ~ 85 ℃ |
| درجة حرارة التخزين: | - 40 ℃ ~ 85 ℃ | ||
| إبراز: | RJ45 shielded connector with integrated magnetic,10/100 Base-T RJ45 lightless strip connector,RJ45 interface shielded connector DGKYD211B175HWA4DZ,10/100 Base-T RJ45 lightless strip connector,RJ45 interface shielded connector DGKYD211B175HWA4DZ |
||
منتوج وصف

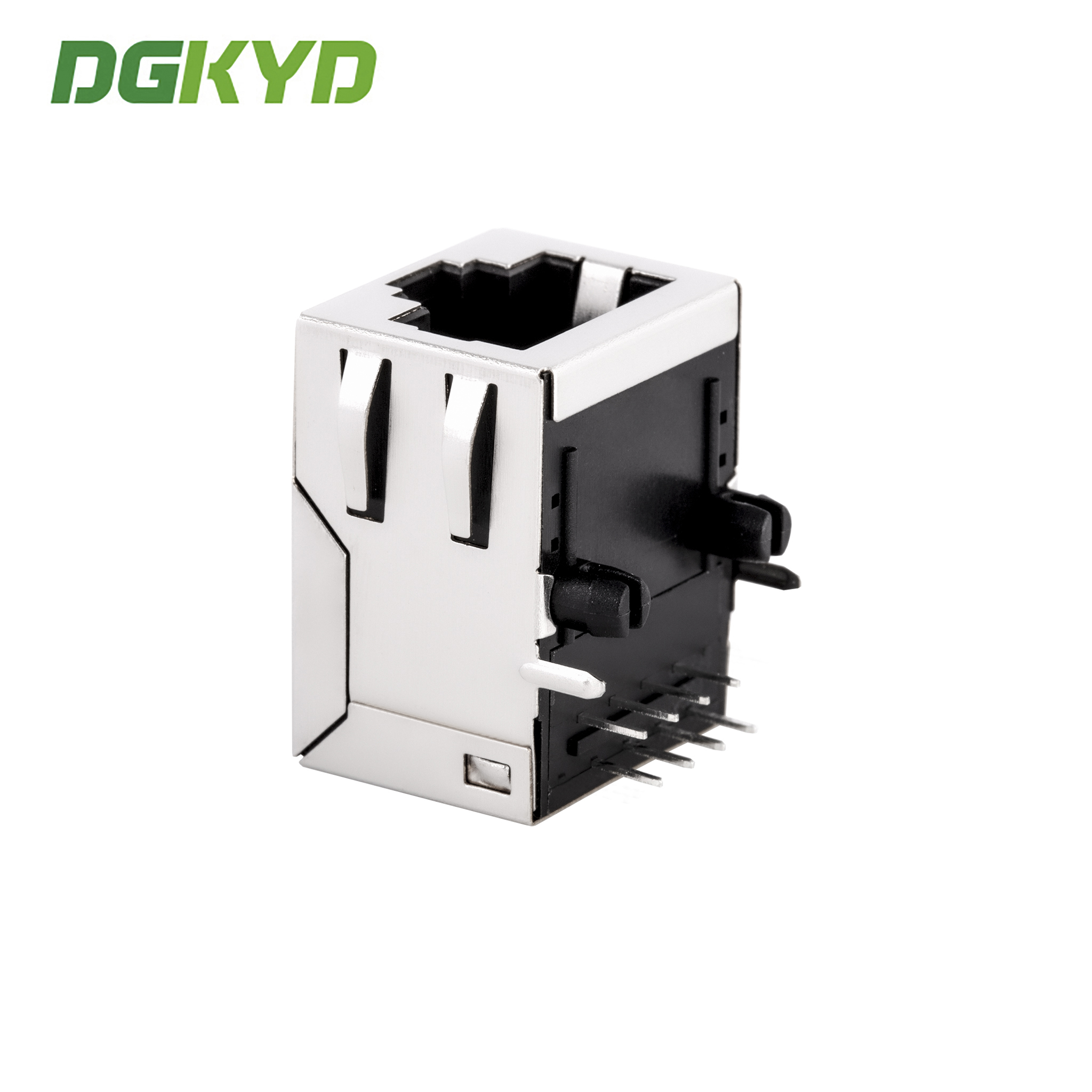

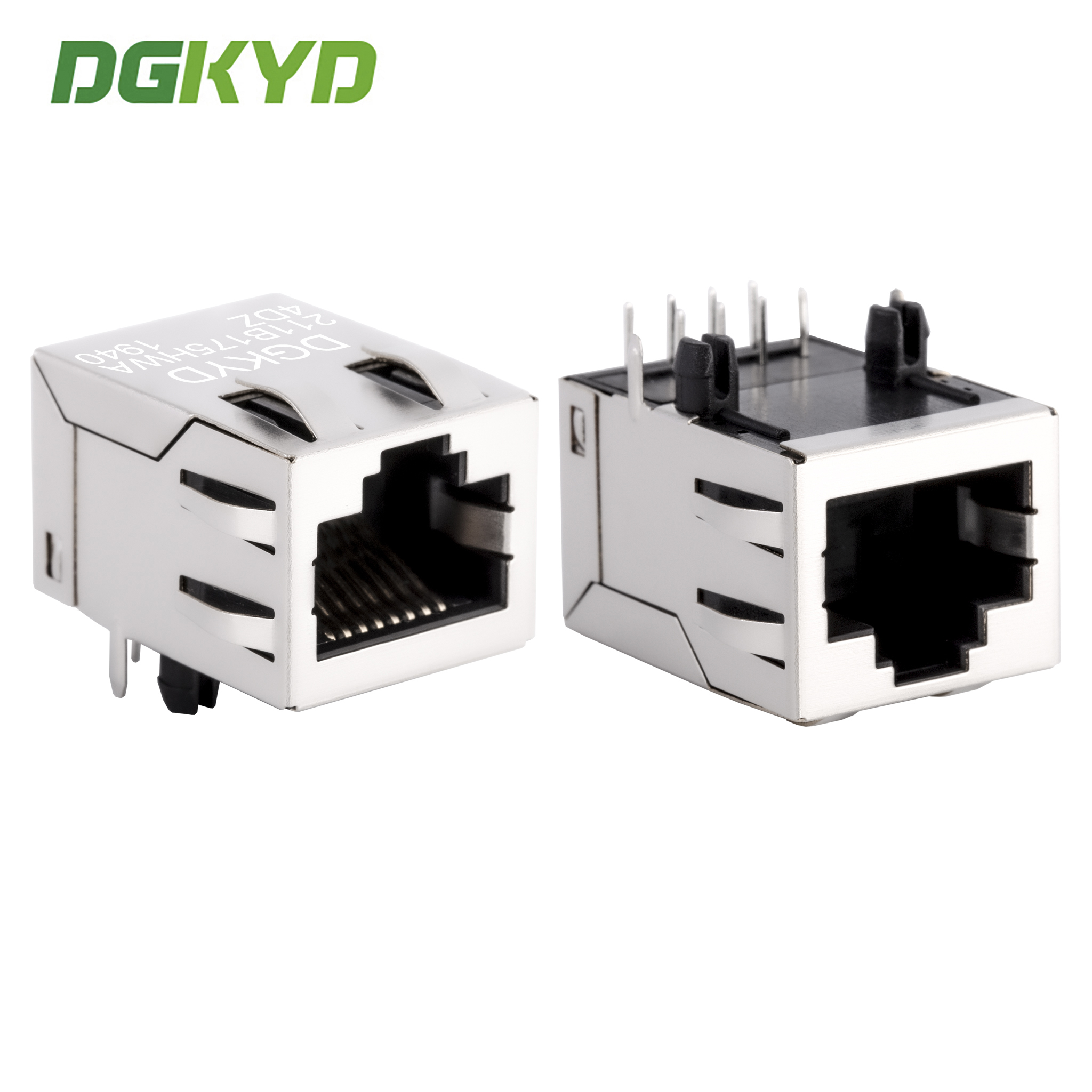

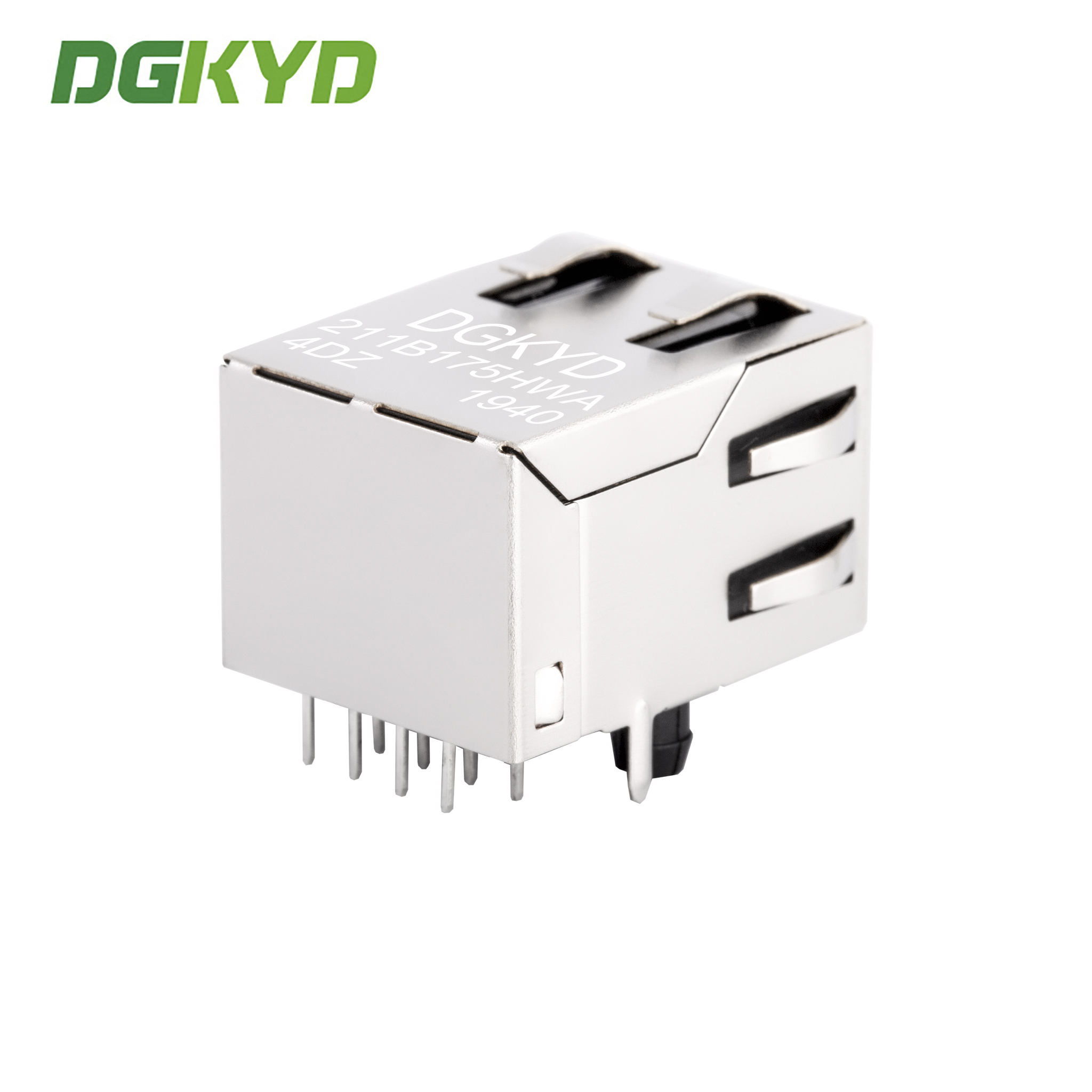

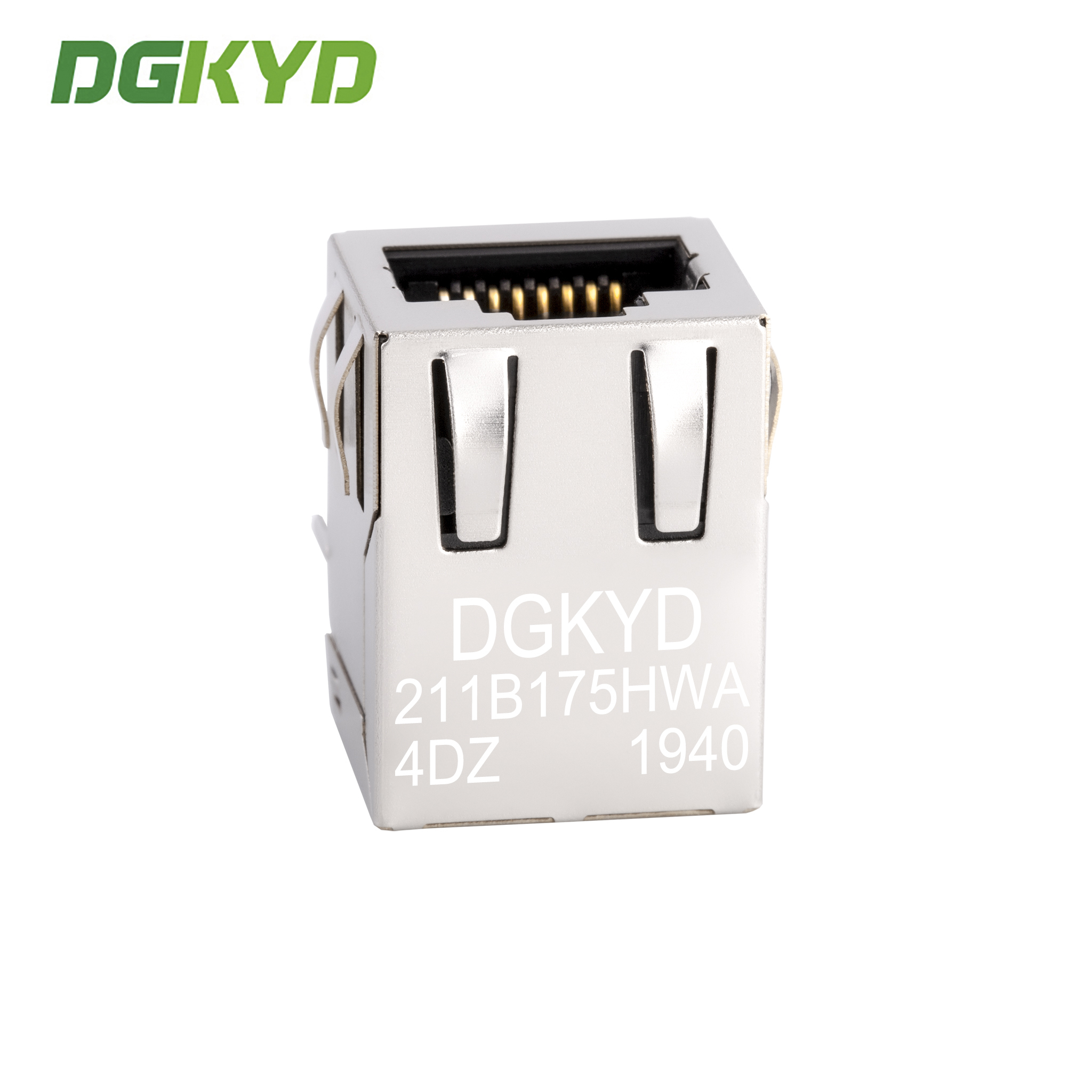

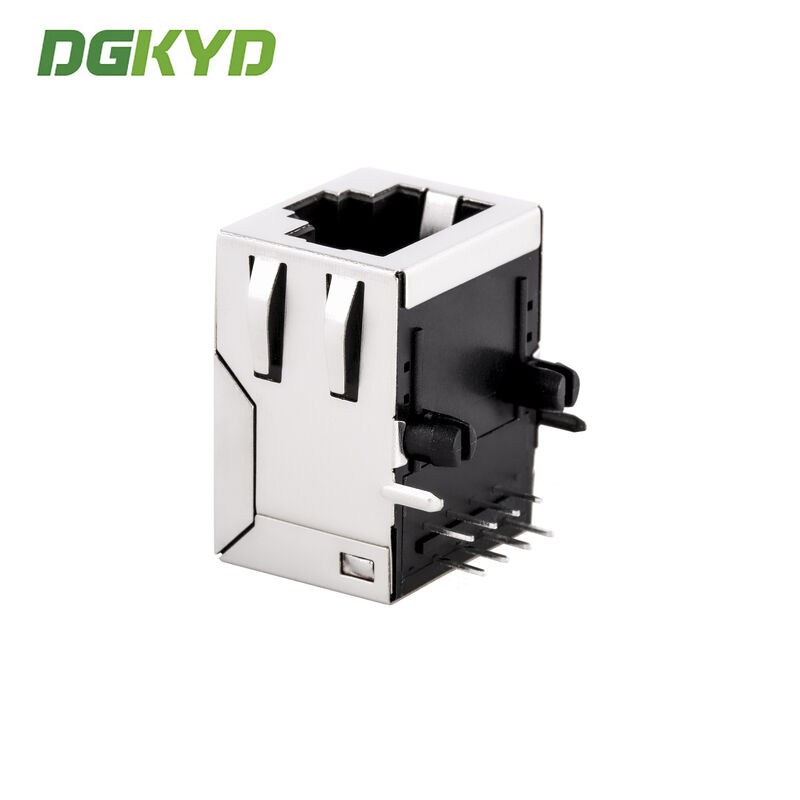

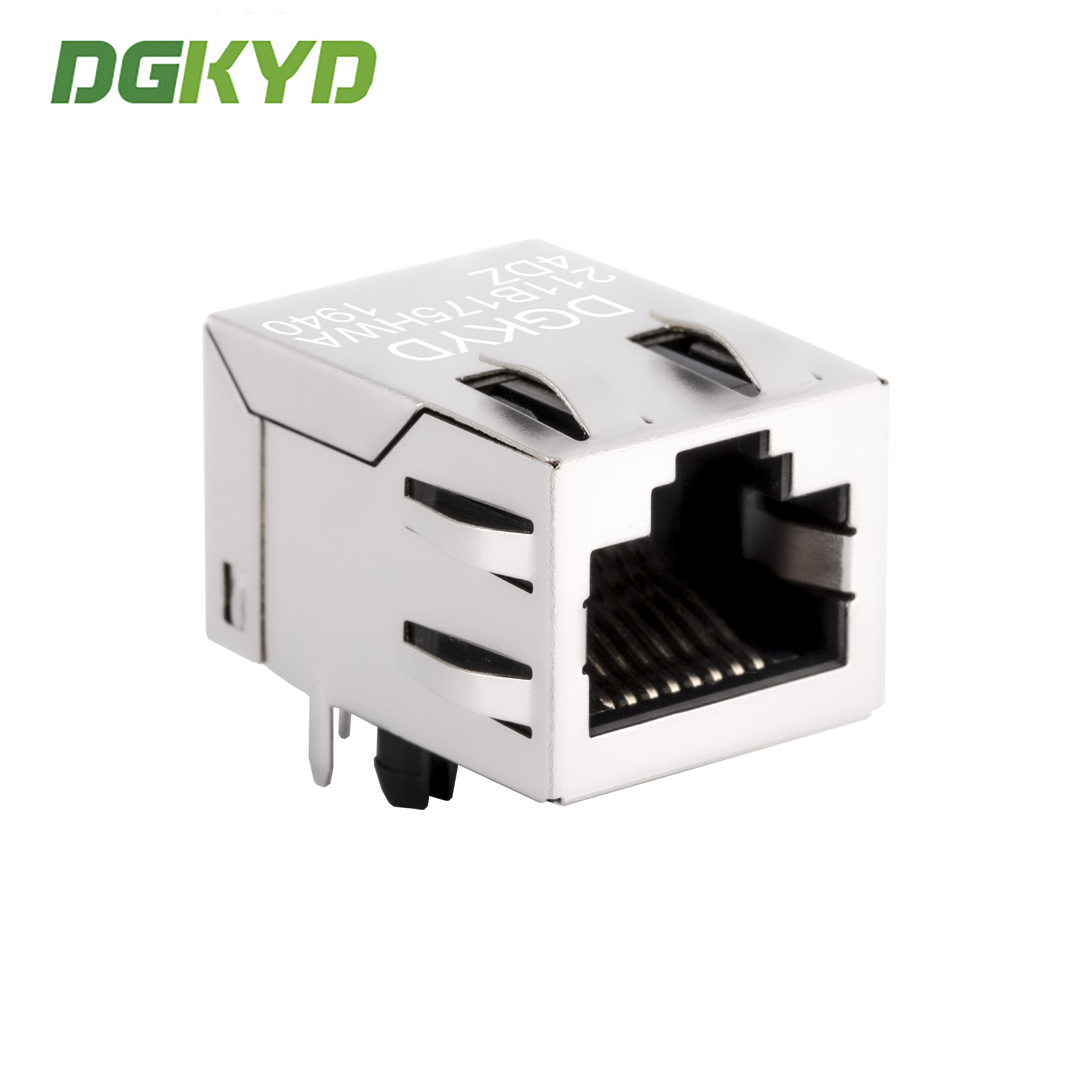

RJ45 interface 10/100 Base-T integrated magnetic lightless strip shielding connector designed for reliable network connectivity in industrial applications.
Download Product Datasheet| Specification | Details |
|---|---|
| Part Number | DGKYD211B175HWA4DZ |
| Brand | DGKYD/OEM/ODM |
| Product Type | Connector-Modular |
| Connector Style | Jack |
| Jack Type | RJ45 |
| Connector Type | Modular Jack |
| Latch Style | Standard |
| Latch | TAB-UP |
| Filter | With Filter |
| LED Option | Without LED |
| LED Color | No |
| Panel Stops | With Panel Stops |
| Shielded | With metal shield |
| Applies To | Printed Circuit Board |
| Port Configuration | Single Ports |
| Number of Positions | 8 |
| Jack Configuration | 1X1 |
| Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel |
| PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating | Gold 6u |
| Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel |
| PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit |
| Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester |
| Housing Color | Black |
| Housing Material Temperature | Standard |
| UL Flammability Rating | UL 94V-0 |
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply:
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
