| الحد الأدنى لكمية : | 1 قطعة | الأسعار : | Please contact us to get the latest price. |
|---|---|---|---|
| تفاصيل التغليف : | علبة في الكرتون | وقت التسليم : | 10 أيام |
| شروط الدفع : | T/T ، D/P ، D/A ، L/C ، Western Union ، Moneygram | القدرة على العرض : | 100 كيلو أجهزة كمبيوتر/يوم |
| مكان المنشأ: | دونغغوان الصين | اسم العلامة التجارية: | DGKYD |
|---|---|---|---|
| إصدار الشهادات: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | رقم الموديل: | KRJ-109NL |
|
معلومات تفصيلية |
|||
| طلب: | ثنائي الفينيل متعدد الكلور | يكتب: | RJ45 |
|---|---|---|---|
| جنس: | أنثى | مواد الإسكان: | PBT أسود |
| الاتصال تصفيح منطقة التزاوج: | طلاء ذهبي 6u'' | خيار الصمام: | أخضر / أصفر |
| مزلاج: | علامة التبويب لأسفل | عدد المنافذ: | 8 |
| درجة حرارة التشغيل: | - 40 ℃ ~ 85 ℃ | درجة حرارة التخزين: | -40 درجة مئوية ~+85 درجة مئوية |
| طلاء الذهب على دبابيس الاتصال: | 6U | درع: | النحاس |
| إبراز: | RJ45 connector with transformer,industrial Ethernet switch socket,100Mbps network filter interface,industrial Ethernet switch socket,100Mbps network filter interface |
||
منتوج وصف

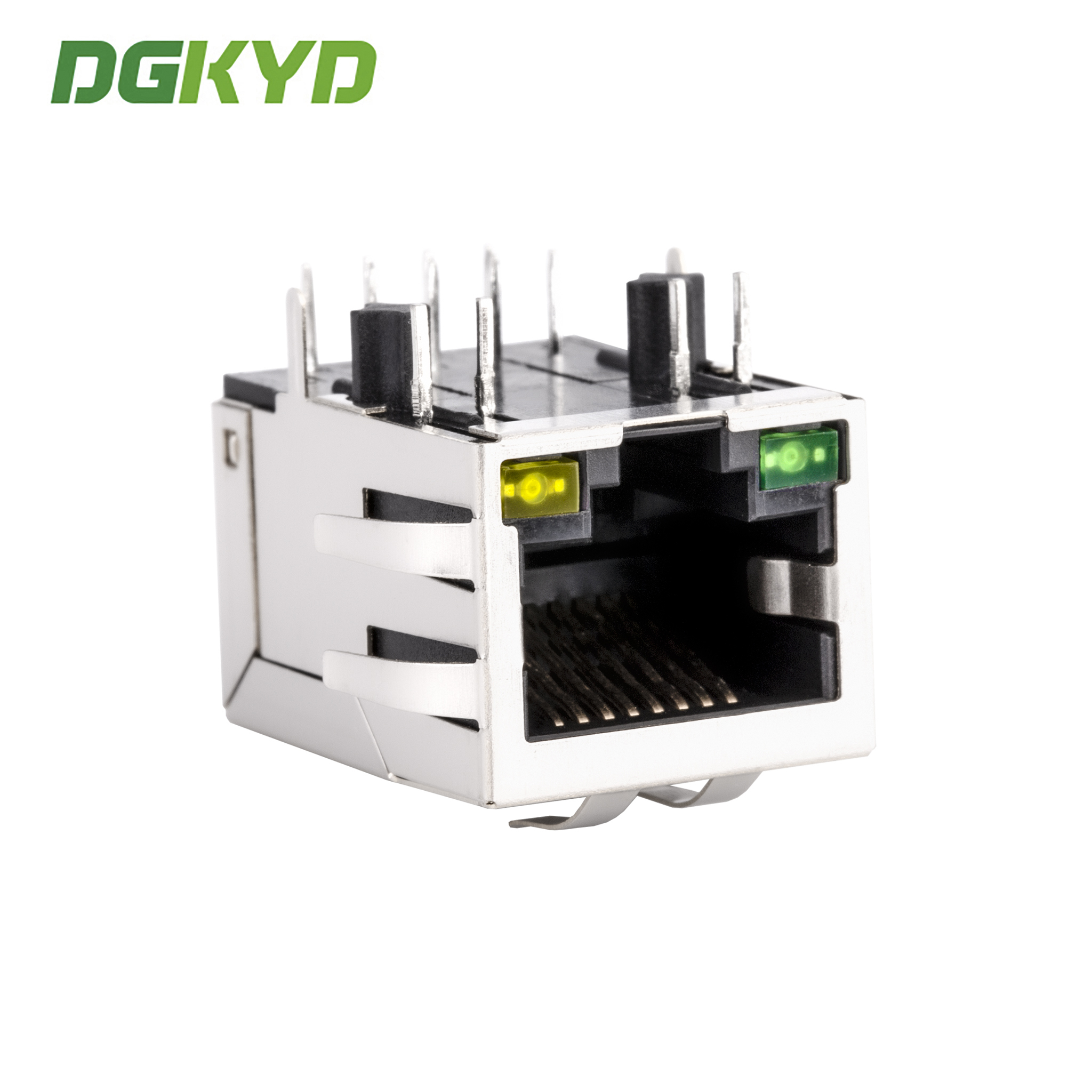

RJ45 Connector 100Mbps Filter Network Socket Industrial Ethernet Switch Interface KRJ-109NL
RJ45 connector 100Mbps filter network socket industrial Ethernet switch interface KRJ-109NL
Download Product Datasheet (PDF)
Technical Specifications
Specification
Details
Part Number
KRJ-109NL
Brand
DGKYD/OEM/ODM
Product Type
Connector-Modular
Connector Style
Jack
Jack Type
RJ45
Connector Type
Modular Jack
Latch Style
Standard
Latch
TAB-DOWN
Filter
With Filter
LED Option
With LED
LED Color
Green/Yellow
Panel Stops
With Panel Stops
Shielded
With metal shield
Applies To
Printed Circuit Board
Port Configuration
Single Ports
Number of Positions
8
Jack Configuration
1X1
Terminals per Port
8
Shield Material
Copper Alloy preplated with Nickel
PCB Mounting Orientation
Side Entry (Right Angle)
Contact Mating Area Plating
Gold 6u
Contact Base Material
Phosphor Bronze
Solder Tail Contact Plating Material
Tin-Lead over Nickel
PCB Mounting Style
Through Hole
Termination Method to PC Board
Through Hole-Press-Fit
Board Lock
With/Without Board Lock
Housing Material
PBT Polyester
Housing Color
Black
Housing Material Temperature
Standard
UL Flammability Rating
UL 94V-0
Product Images
Manufacturer Information
Product Features
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
Frequently Asked Questions
Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
