Custom Single Port 33.0mm Rj45 Lan Jack , 1000BASE micro rj45 connector PoE KRJ-339PWNL

ﺎﺘﺼﻟ ﺍﻶﻧ

Custom Single Port 33.0mm Rj45 Lan Jack , 1000BASE micro rj45 connector PoE KRJ-339PWNL

الحد الأدنى لكمية :	1 قطعة	الأسعار :	Please contact us to get the latest price.
تفاصيل التغليف :	علبة في الكرتون	وقت التسليم :	10 أيام
شروط الدفع :	T/T، D/P، D/A، L/C، ويسترن يونيون، موني جرام	القدرة على العرض :	100 كيلو أجهزة كمبيوتر/يوم

مكان المنشأ:	دونغغوان الصين	اسم العلامة التجارية:	DGKYD
إصدار الشهادات:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	رقم الموديل:	KRJ-339PWNL

معلومات تفصيلية
المواد البلاستيكية:	تصنيف UL 94V-0	مواد الاتصال:	سبائك النحاس
درجة حرارة التشغيل:	-40 درجة مئوية إلى 85 درجة مئوية	أداء:	CAT6
التطبيقات:	التبديل ، جهاز الإرسال والاستقبال ، الكمبيوتر المحمول ، الكمبيوتر RJ45 إلخ	ميزة:	مقبس rj45 معدني ثنائي الفينيل متعدد الكلور قابل للحمل
اسم المنتج:	موصل RJ45 محمي	مواد الإسكان:	بوليستر PBT
فلتر:	مع مرشح	جنس:	أنثى
درجة حرارة التخزين:	-40 درجة مئوية ~ +85 درجة مئوية
إبراز:	Custom 33.0mm RJ45 LAN jack , 1000BASE micro RJ45 connector , PoE KRJ-339PWNL LAN jack

منتوج وصف

Custom Single Port 33.0mm RJ45 LAN Jack

1000BASE micro RJ45 connector with PoE support - Model KRJ-339PWNL

Product Documentation

Technical Parameters

Parameter	Specification
Part Number	KRJ-339PWNL
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Latch Style	Standard TAB-UP
Filter	With Filter
LED Option	With LED (Green/Orange-Yellow)
Panel Stops	With Panel Stops
Shielded	With metal shield
Port Configuration	Single Port
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Plating	Gold 6u
Housing Material	PBT Polyester (Black)
UL Flammability Rating	UL 94V-0

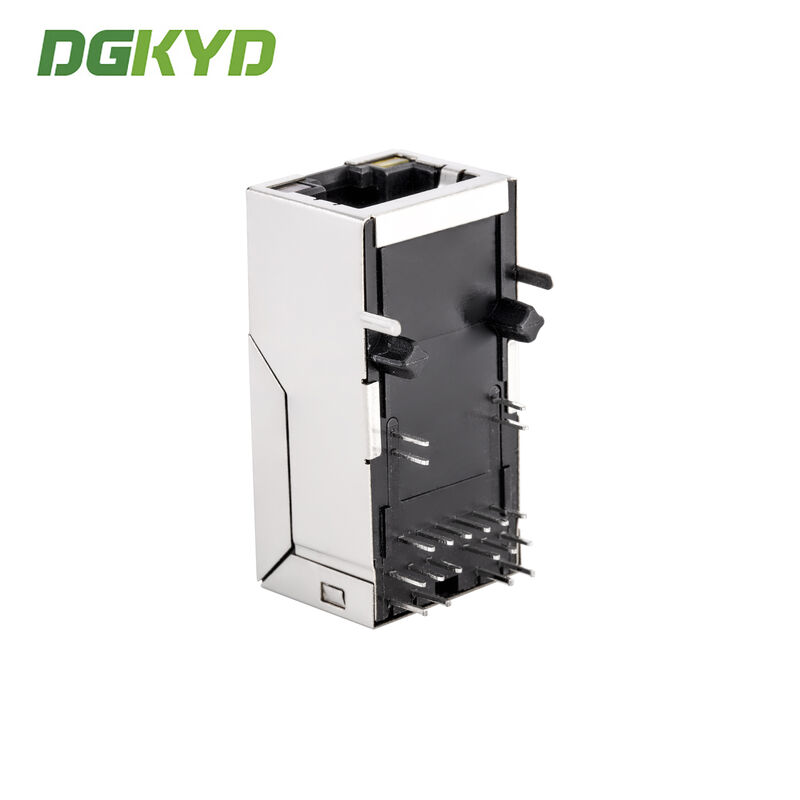

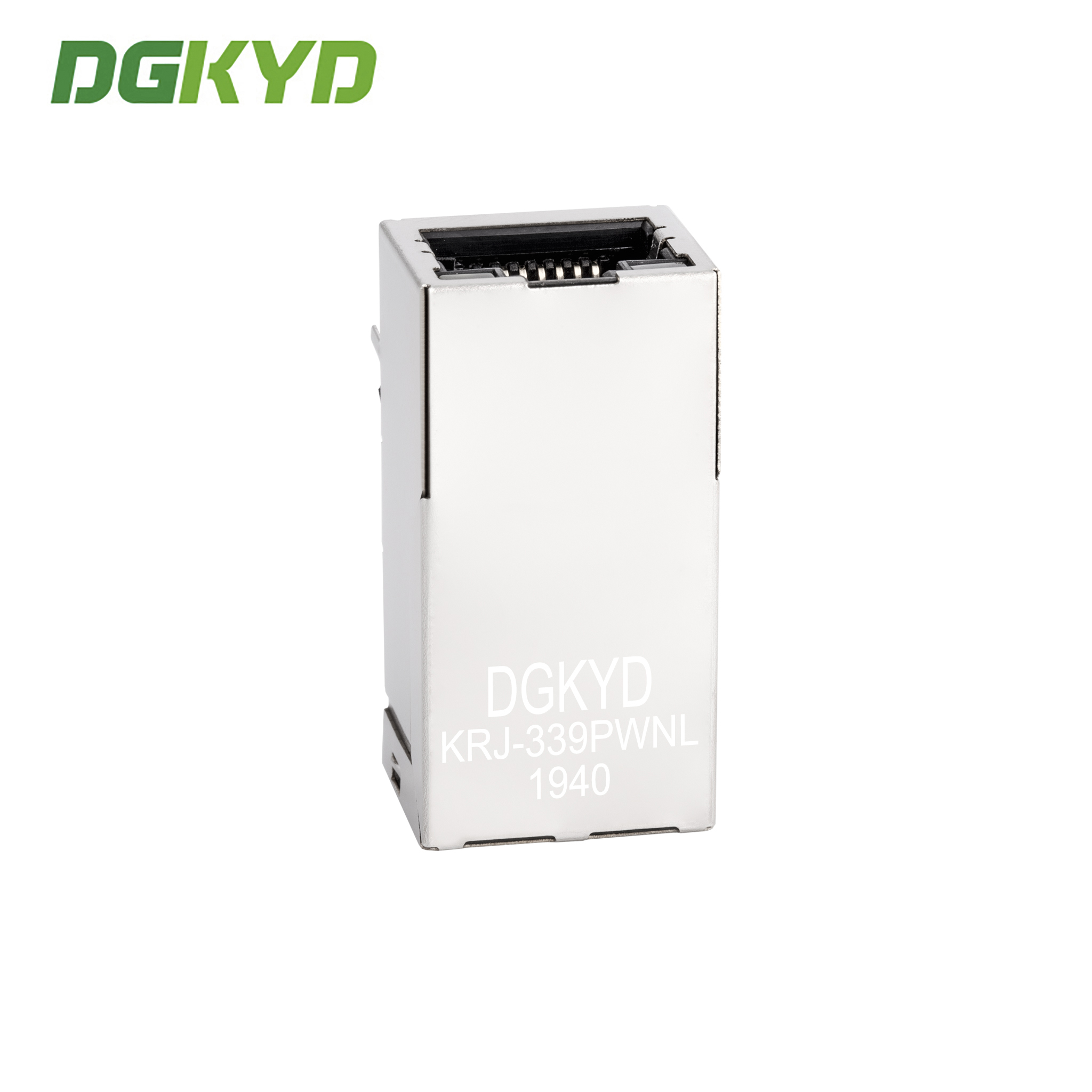

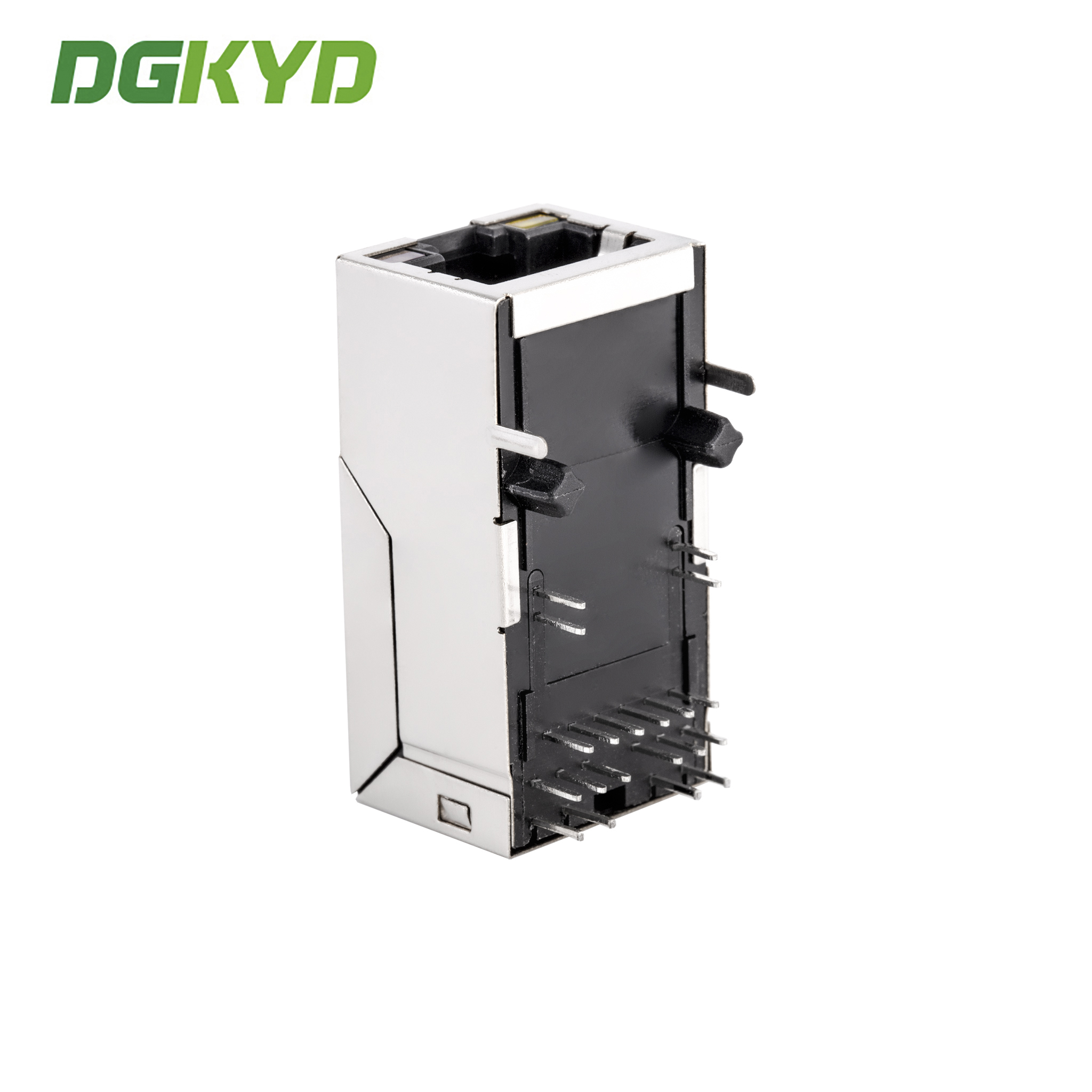

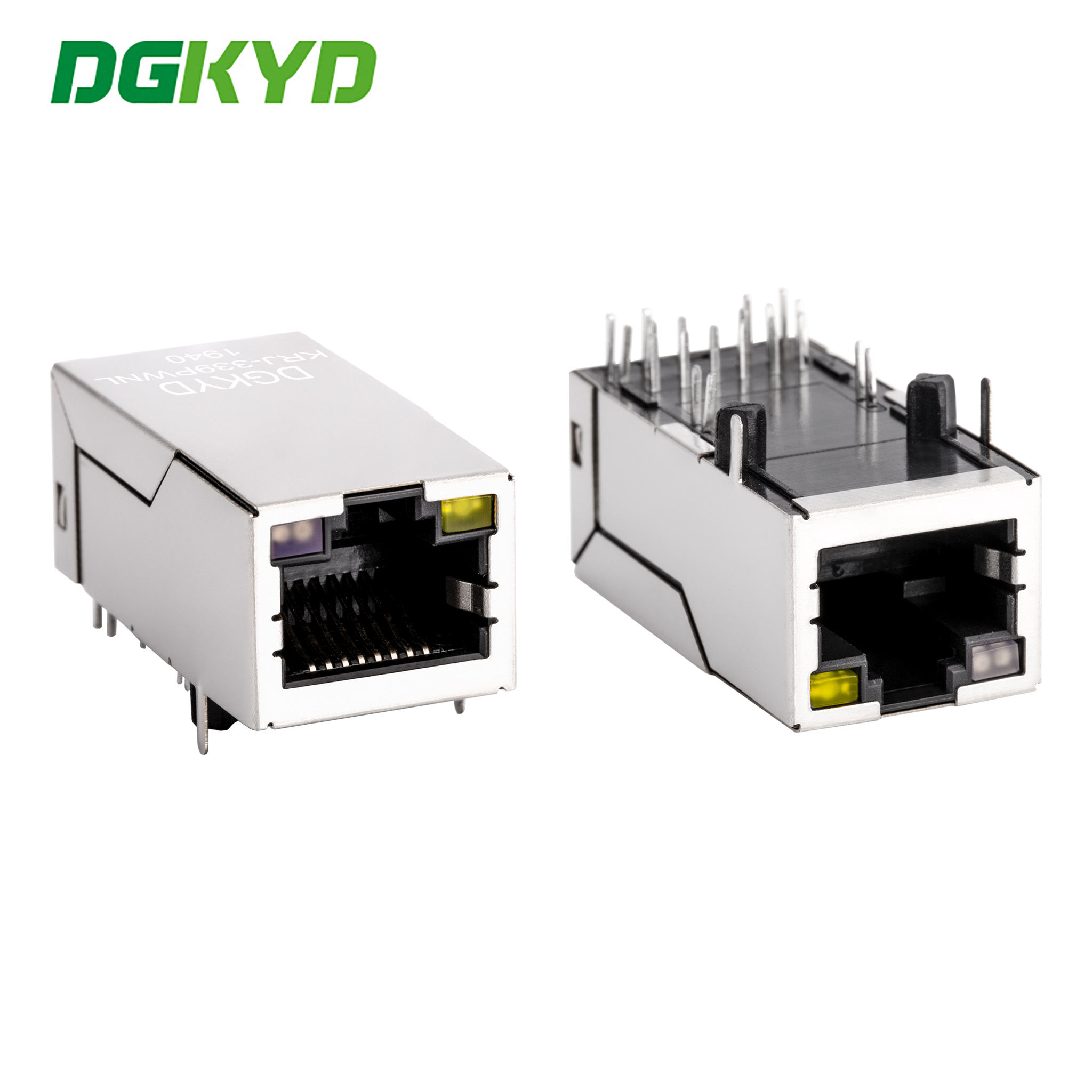

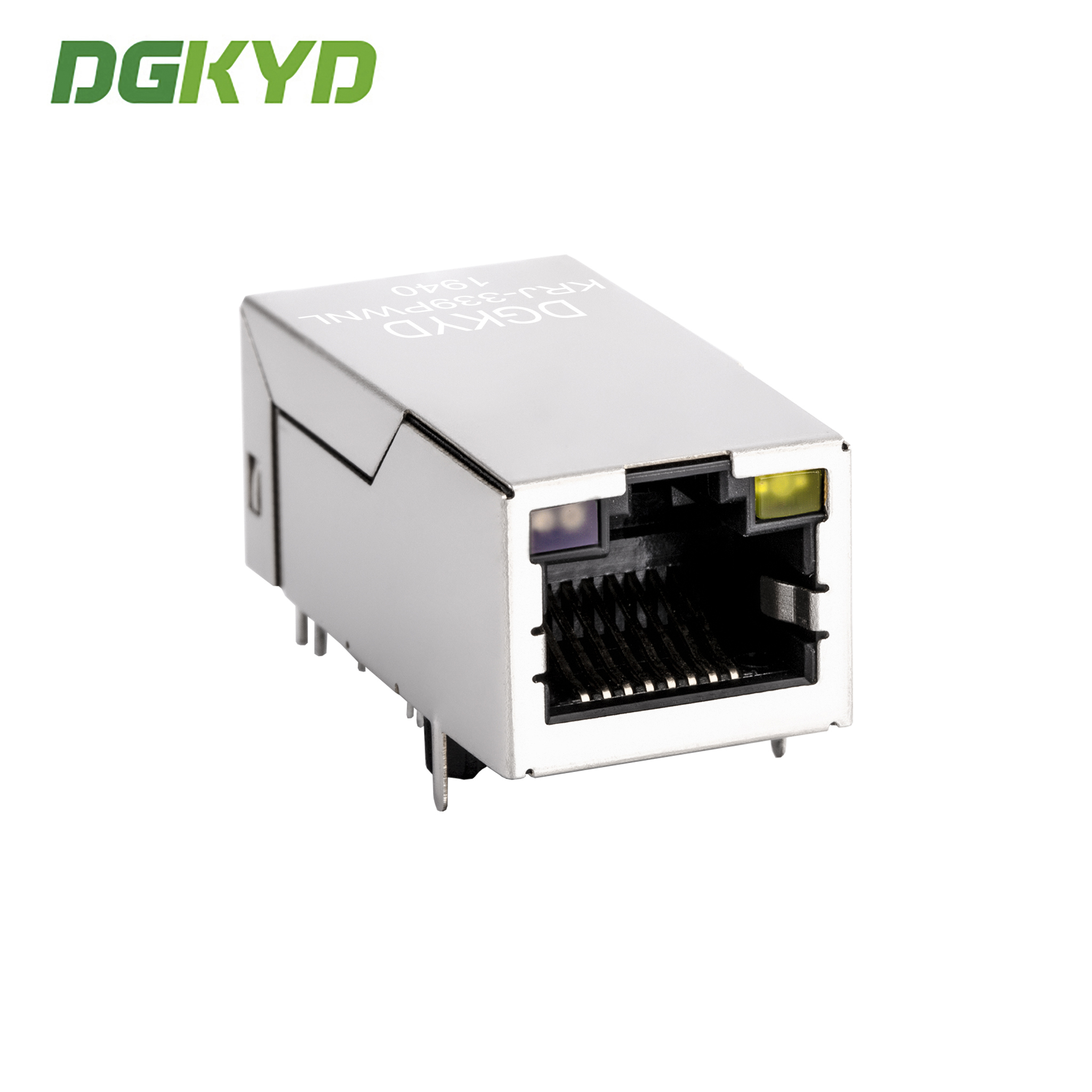

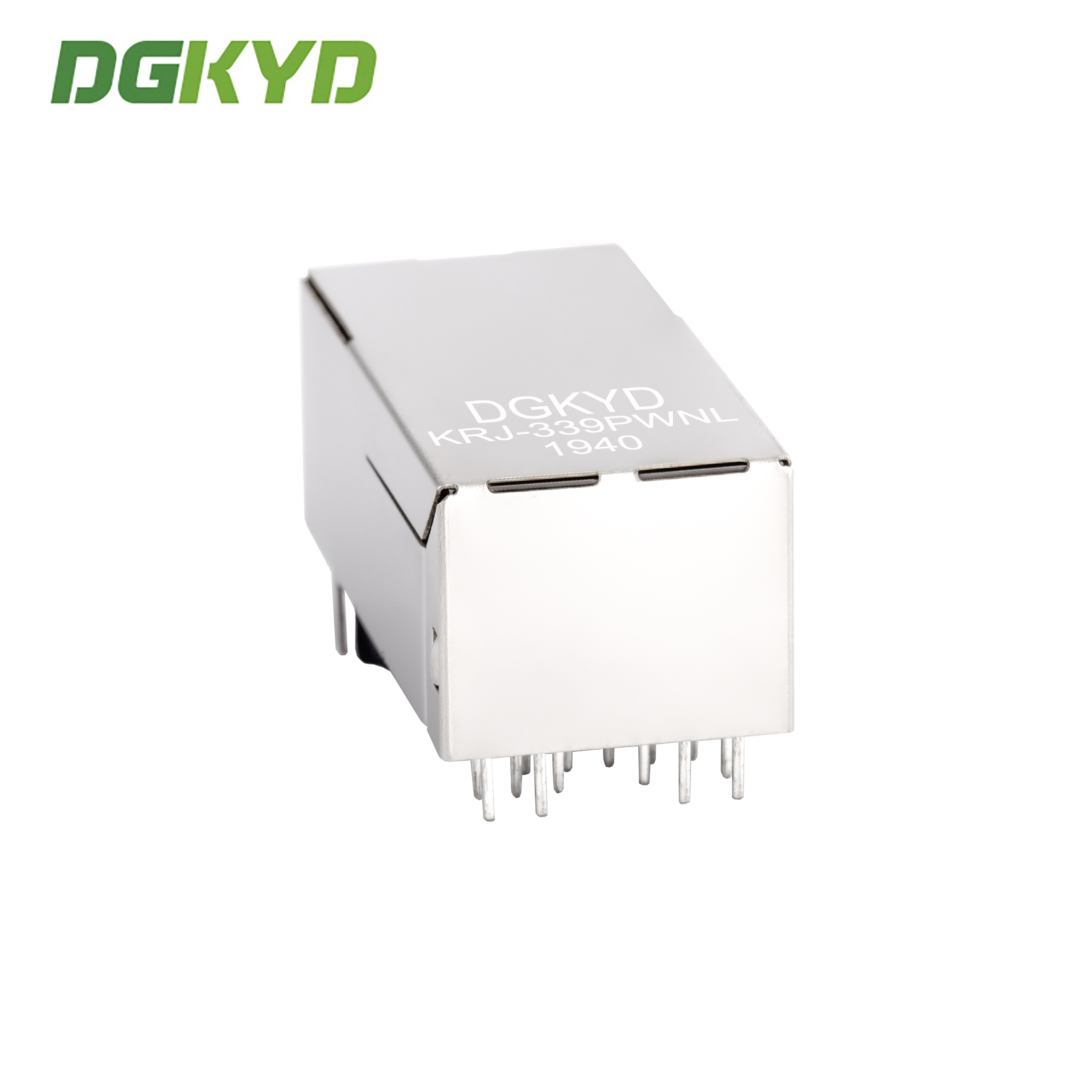

Product Images

Technical Specifications

Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet
Type: RJ45 with built-in magnetics
Working Frequency: High frequency with filtering and anti-interference characteristics
Working Temperature: -40°C to 85°C
Storage Temperature: -40°C to 85°C
Lead-Free Soldering: Wave soldering height up to 265°C

Manufacturing Capabilities

RJ45 full series of integrated circuit accessories, manufacturer direct supply

Business Mode: Manufacturer
Delivery Time: Approximately two weeks for standard orders
Customization Options:
- LED indicator light (green, yellow, red, orange, blue, bi-color LED)
- Shield with EMI fingers or without
- Coil ratio of magnetic core
- Magnetics circuit diversification options
- Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
- Plastic housing material (PBT, PA46, PA9T, LCP)

Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective!

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a manufacturer. Welcome to visit our factory.

What about your lead time?

For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.

Can you provide samples? Are they free?

Yes. We typically provide 2-3 samples of standard products free for testing purposes.

Can I put my own logo on it?

Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
