Side Entry RJ45 Magnetics Jack with LED for 100Mb Ethernet Applications KRJ-H001YGENL

الحد الأدنى لكمية :	1 قطعة	الأسعار :	Please contact us to get the latest price.
تفاصيل التغليف :	علبة في الكرتون	وقت التسليم :	10 أيام
شروط الدفع :	T/T، D/P، D/A، L/C، ويسترن يونيون، موني جرام	القدرة على العرض :	100 كيلو أجهزة كمبيوتر/يوم

مكان المنشأ:	دونغغوان الصين	اسم العلامة التجارية:	DGKYD
إصدار الشهادات:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	رقم الموديل:	KRJ-H001YGENL
وثيقة:	KRJ-H001YGENL.pdf

معلومات تفصيلية
أصابع emi:	لاختياري	ميزة:	أداء عالي بالمغناطيسية و LED
RJ45 مناسب:	لكابل إيثرنت CAT5 & 6 أو UTP	طلب:	الشبكة المحلية والجسر والكمبيوتر والموجه وشبكة محور USB rj45 وجميع أجهزة الإيثرنت
جنس:	أنثى RJ45	اسم المنتج:	موصل إيثرنت RJ45
لون الصمام:	أخضر / أصفر	المغناطيسية:	مع المغناطيسية الداخلية
درجة حرارة التخزين:	-40 درجة مئوية ~ +85 درجة مئوية	درجة حرارة التشغيل:	-40 درجة مئوية ~ +85 درجة مئوية

منتوج وصف

KRJ-H001YGENL Single Port RJ45 Magnetics Jack, Side Entry 100Mb RJ45 8P8C Connectors

Product Overview

KRJ-H001YGENL single port RJ45 magnetics jack with side entry configuration, designed for 100Mb Ethernet applications using standard 8P8C connectors.

Part Number: KRJ-H001YGENL

Product Documentation: KRJ-H001YGENL.pdf

Technical Parameters

Part Number	KRJ-H001YGENL	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	With Filter	LED Option	With LED
LED Color	Yellow-Green	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	Single Port	Number of Positions	8
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

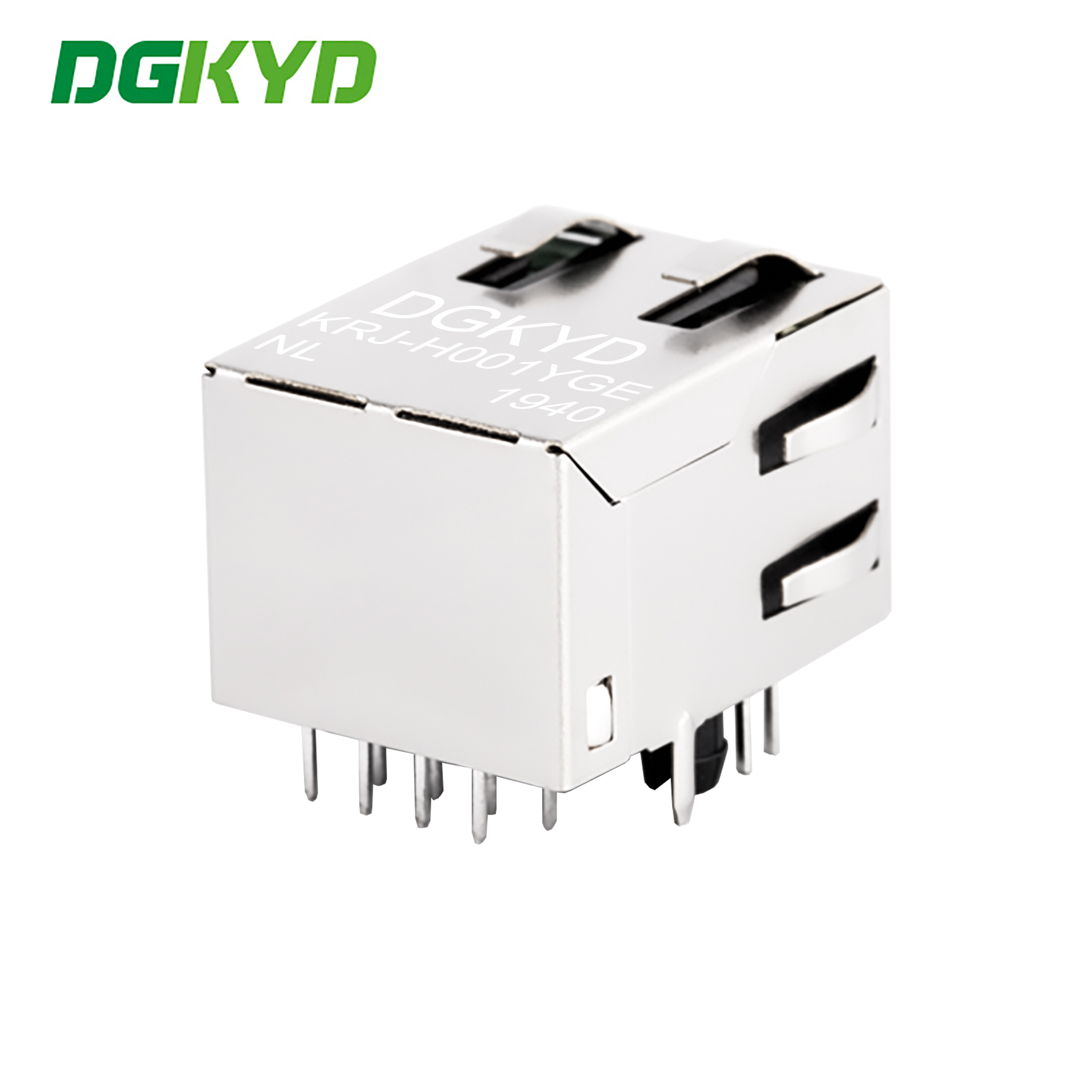

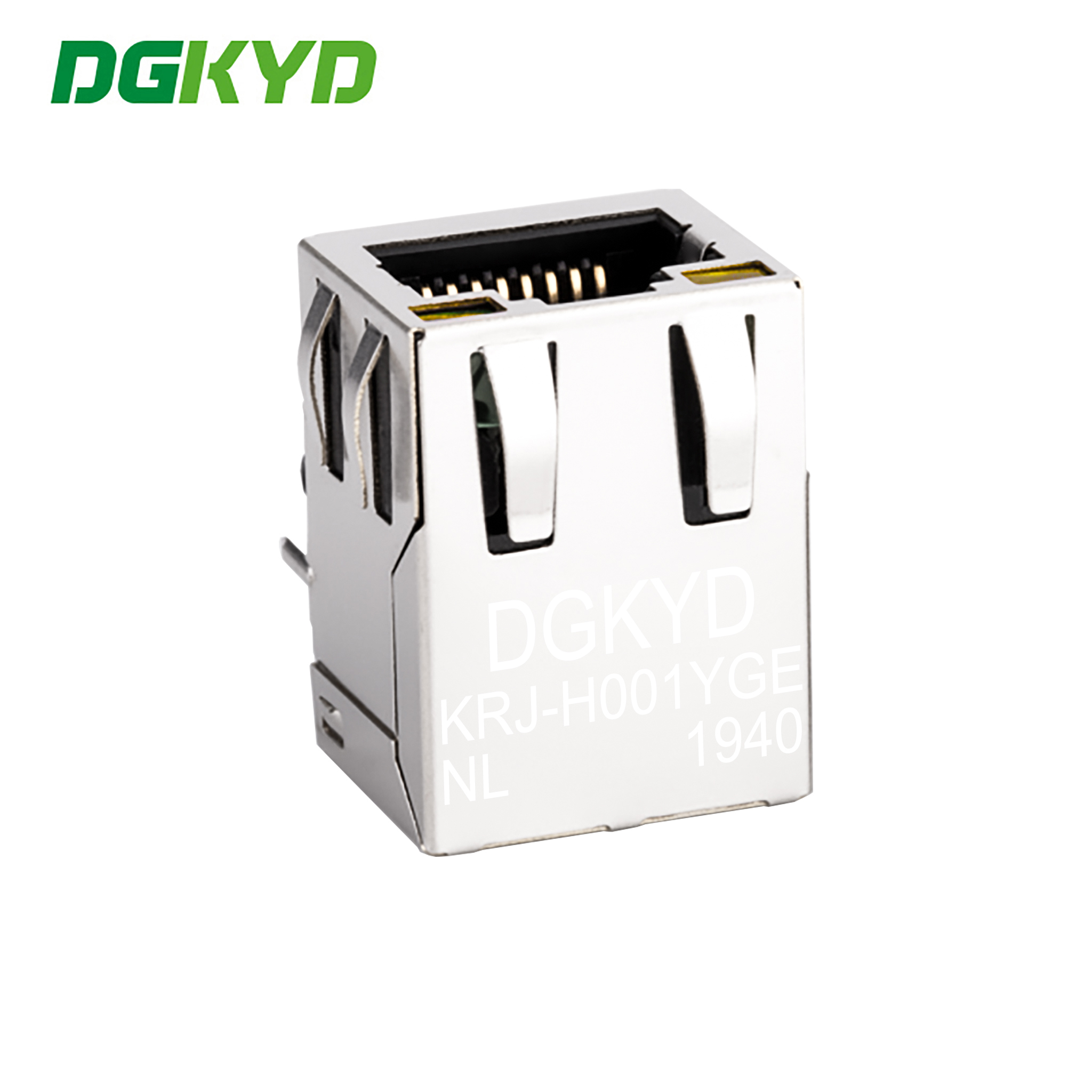

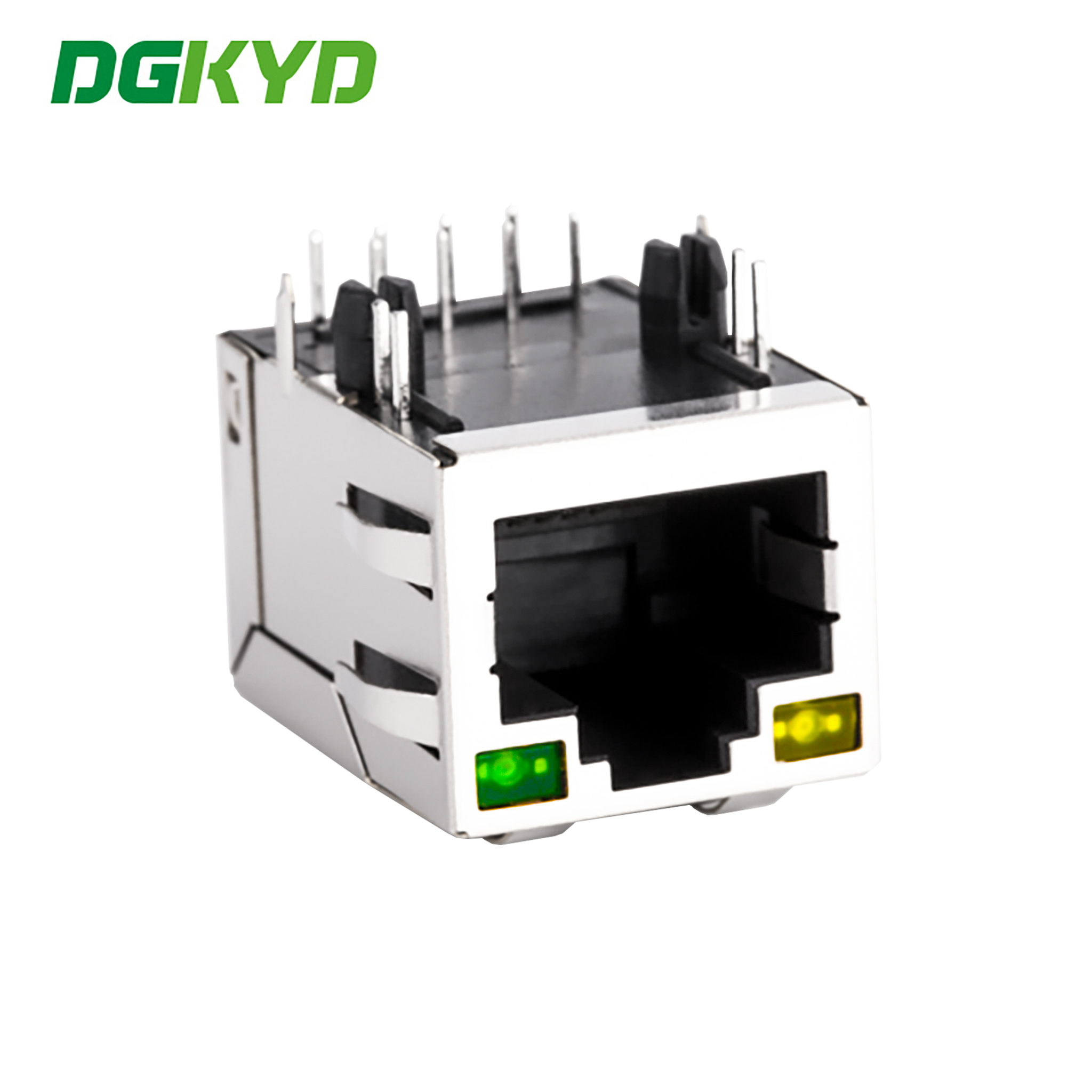

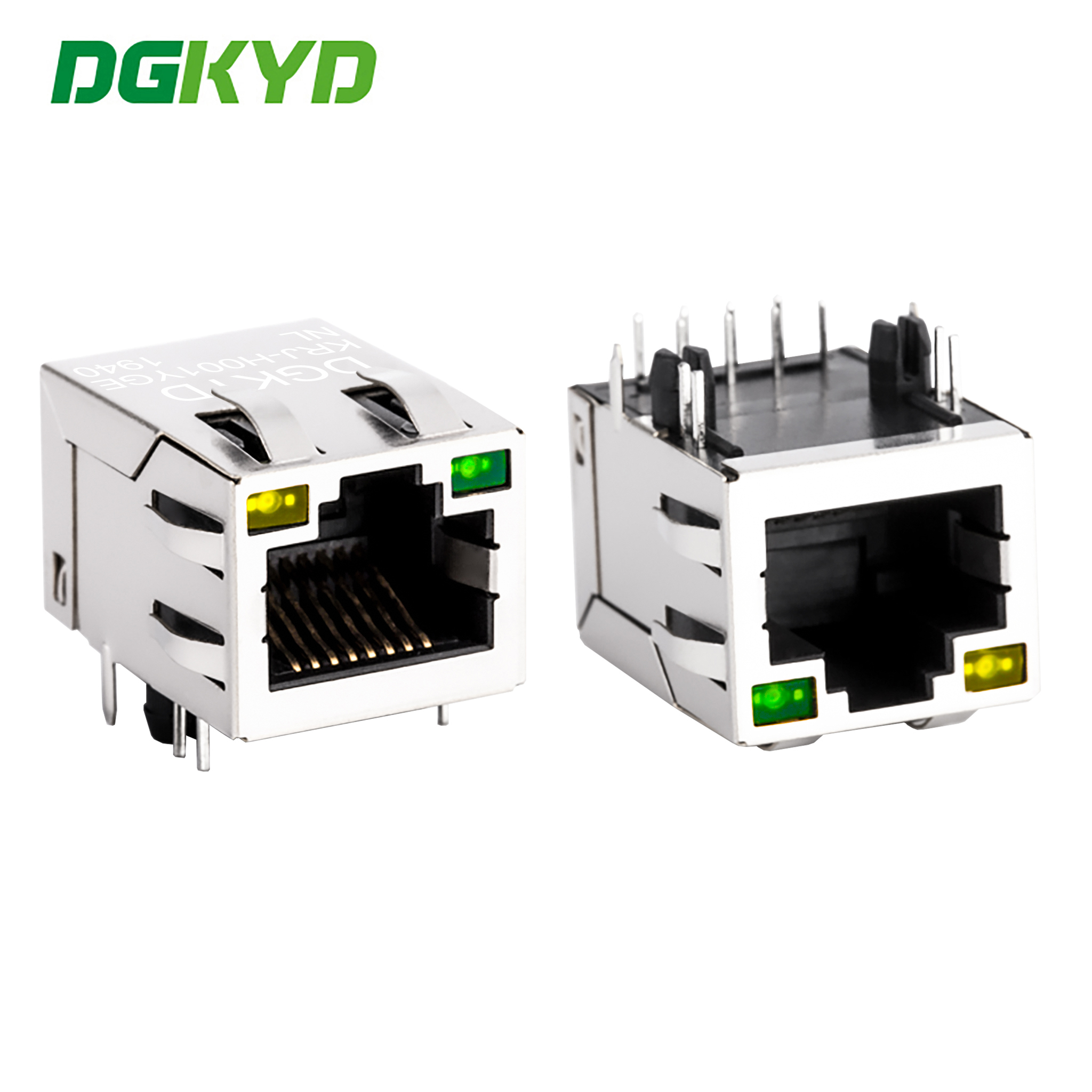

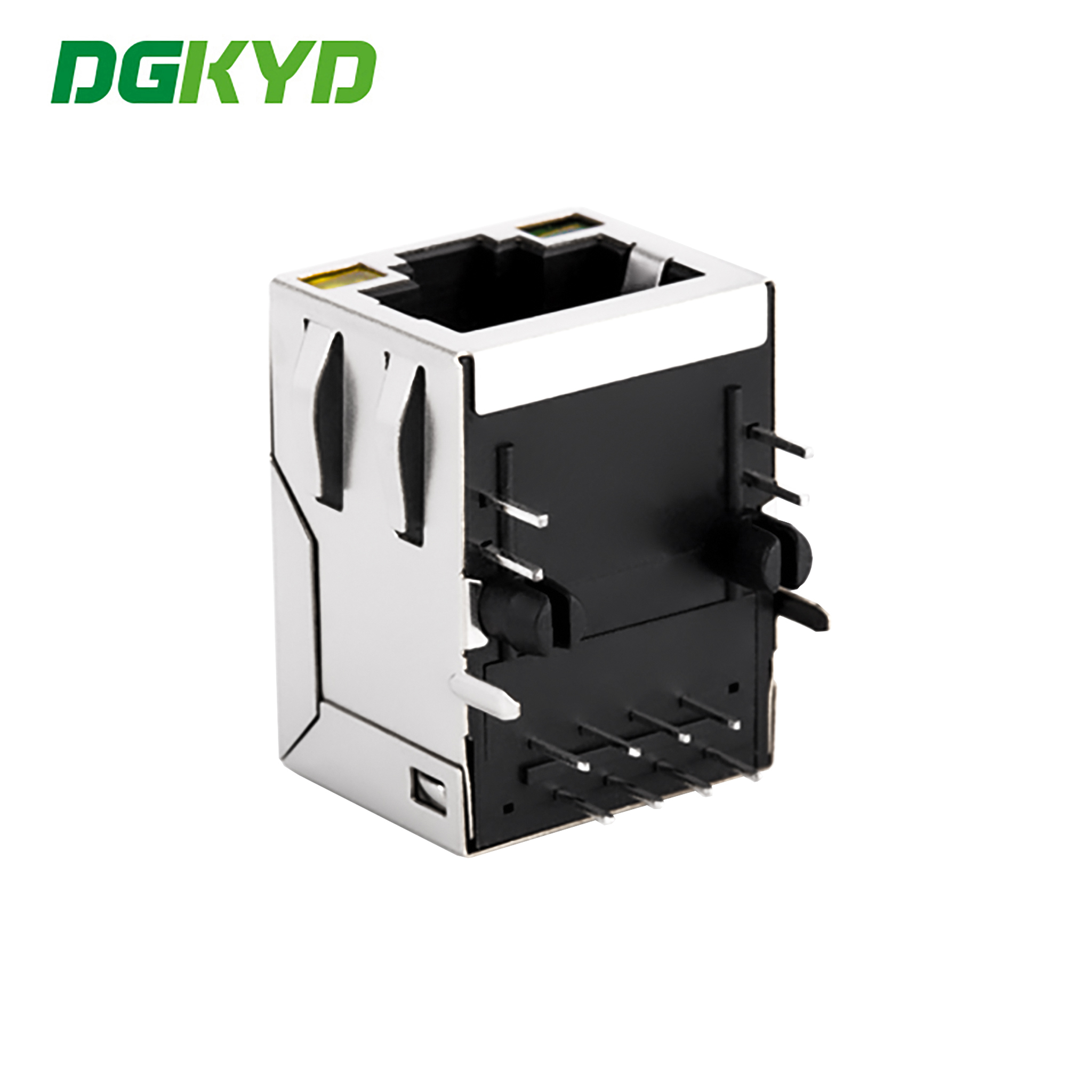

Product Images

Technical Specifications

Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet
Type: RJ45 with built-in magnetics
Working Frequency: High frequency with filtering and anti-interference characteristics
Working Temperature: -40°C to 85°C
Storage Temperature: -40°C to 85°C
Lead-Free Soldering: Wave soldering height up to 265°C

Manufacturing Capabilities

RJ45 full series of integrated circuit accessories, manufacturer direct supply

Business Mode: Manufacturer
Delivery Time: Approximately two weeks for standard orders
Customization Options:
- LED indicator light (green, yellow, red, orange, blue, bi-color LED)
- Shield with EMI fingers or without
- Coil ratio of magnetic core
- Magnetics circuit diversification options
- Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
- Plastic housing material (PBT, PA46, PA9T, LCP)

Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective!

Frequently Asked Questions

Q: Are you a trading company or manufacturer?

A: We are a manufacturer. Welcome to visit our factory.

Q: What about your lead time?

A: For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.

Q: Can you provide samples? Are they free?

A: Yes. We typically provide 2-3 samples of standard products free for testing purposes.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
