| الحد الأدنى لكمية : | 1 | الأسعار : | $0.90-1.50 |
|---|
| مكان المنشأ: | قوانغدونغ ، الصين | اسم العلامة التجارية: | DGKYD |
|---|---|---|---|
| رقم الموديل: | DGKYD811B198FF5A10DQ057 |
|
معلومات تفصيلية |
|||
| يكتب: | RJ45 | التغليف: | تراجع |
|---|---|---|---|
| جنس: | أنثى | المواد السكنية: | LCP أسود |
| خيار الصمام: | أخضر - برتقالي / أصفر | مزلاج: | أعلى |
| عدد المنافذ: | 1 | عدد جهات الاتصال: | 8 |
| زاوية تثبيت PCB: | دخول جانبي | جبل ستايل: | من خلال ثقب |
| سرعة الأداء: | 10/100base-t | تكوين المنفذ: | أعزب |
| عدد المواقف: | 6 | محطات لكل ميناء: | 8 |
| مادة الدرع: | سبائك النحاس مطلية مسبقًا بالنيكل | ||
| إبراز: | RJ45 single port connector 100Mbps,RJ45 connector with dual-color LED,single port RJ45 with warranty,RJ45 connector with dual-color LED,single port RJ45 with warranty |
||
منتوج وصف

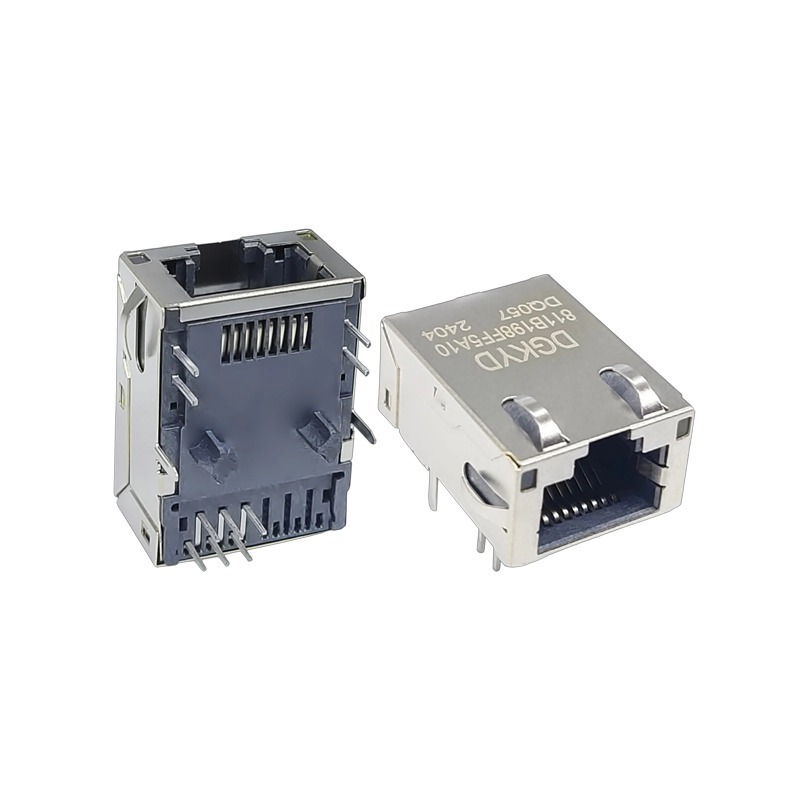

Dual-Color LED with pins 1, 2, 3, 7, 8, 9 excluded for specialized network applications.
| Part Number | DGKYD811B198FF5A10DQ057 | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | IATF16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | Up |
| Filter | With Filter | LED Option | With LED |
| LED Color | Green-Orange/Yellow | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 10/100BASE-T | Grounding Options | Panel Ground and PCB Ground |
| Port Configuration | Single | Number of Positions | 6 |
| Jack Configuration | 1 x 1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |

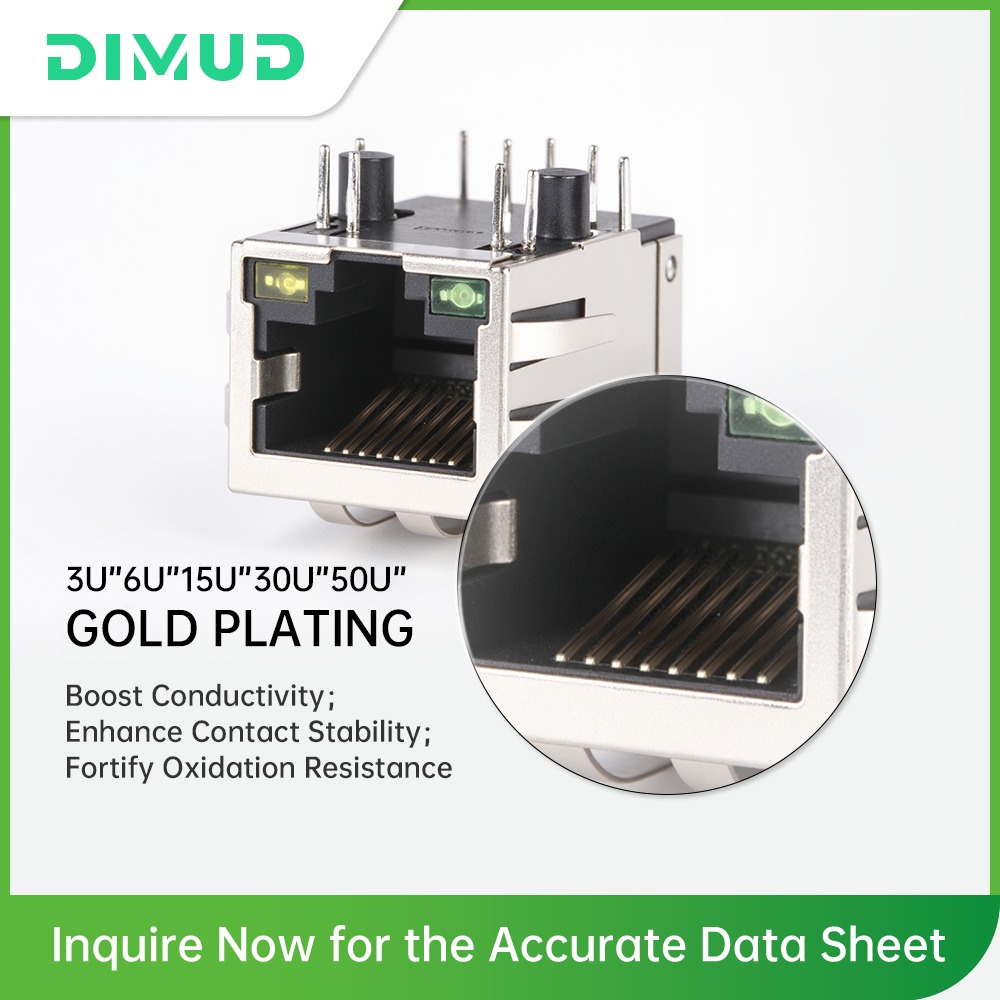

| Contact Mating Area Plating Material | Gold 6u/15u/30u/50u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | LCP Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
