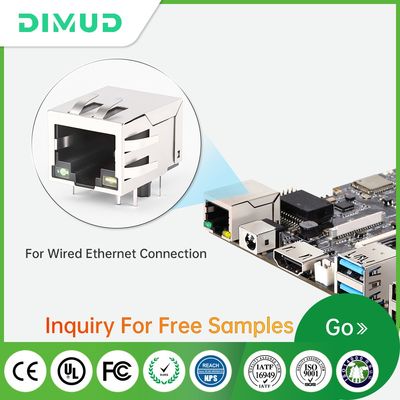

DGKYD RJ45 Connector 12 Pin 6u Gold Plating Shielded PCB Mount

الحد الأدنى لكمية :	1

مكان المنشأ:	قوانغدونغ ، الصين	رقم الموديل:	DGKYD411Q016DB3A1D

معلومات تفصيلية
نوع الموصل:	RJ45	جنس:	أنثى
لون LED:	أخضر أخضر	صفيحة ذهبية:	6U
المواد السكنية:	بوليستر PBT	محول:	مع محول
نمط مزلاج:	علامة تبويب لأعلى	محمي:	نعم
سرعة:	القط 5	عدد الدبوس:	12 دبابيس
سرعة الأداء:	1000 قاعدة T.	تكوين المنفذ:	أعزب
محطات لكل ميناء:	8	مادة الدرع:	سبائك النحاس مطلية مسبقًا بالنيكل

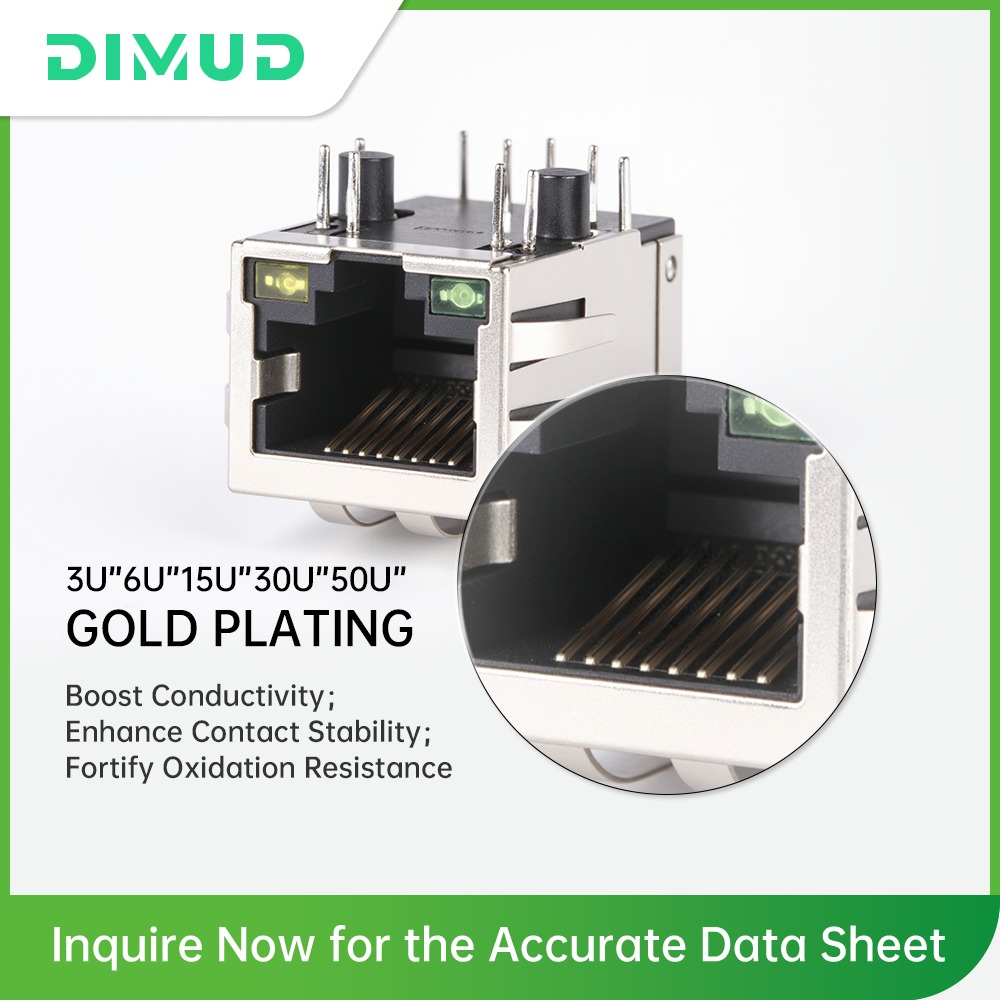

الاتصال الطلاء:	الذهب 6u/15u/30u/50u
إبراز:	RJ45 connector 12 pin gold plating,shielded RJ45 connector PCB mount,6u gold plated RJ45 connector , shielded RJ45 connector PCB mount , 6u gold plated RJ45 connector

منتوج وصف

Gigabit 8P8C Straight-Insertion RJ45 Connector

1x1 Single-Port Waterproof Integrated Router Ethernet Connector

High-performance waterproof RJ45 connector designed for industrial networking applications, featuring gigabit Ethernet compatibility and durable construction.

Part Number	DGKYD411Q016DB3A1D
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China
Certification	IATF16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS

Technical Specifications

Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	tab-up
Filter	With Filter	LED Option	With LED
LED Color	Green/Green	Panel Stops	Without Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	1000 BASE-T	Grounding Options	Panel Ground and PCB Ground
Port Configuration	Single	Number of Positions	12
Jack Configuration	1 x 1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

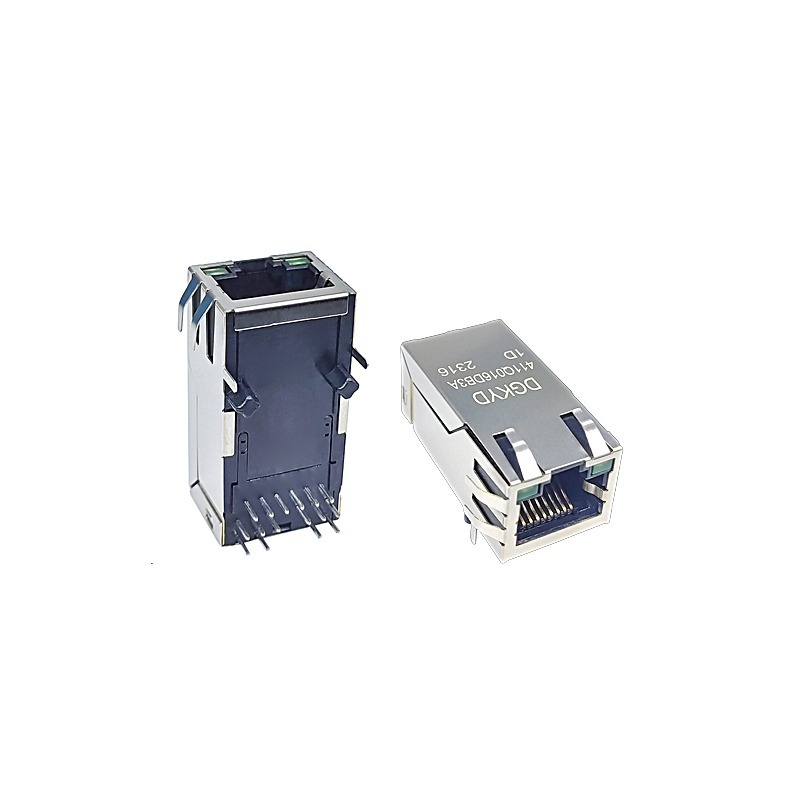

Product Images

Key Features

Waterproof design for industrial environments
Gigabit Ethernet (1000 BASE-T) performance
Shielded construction with copper alloy shield
Gold-plated contacts for reliable connections
Through-hole PCB mounting with board lock
PBT polyester housing with UL 94V-0 rating
Integrated LED indicators (green/green)
Right-angle PCB mounting orientation
