| الحد الأدنى لكمية : | 1 | الأسعار : | $0.20-0.30 |
|---|
| مكان المنشأ: | قوانغدونغ ، الصين | اسم العلامة التجارية: | DGKYD |
|---|---|---|---|
| رقم الموديل: | DGKYD52241188AC2A3DY1027 ، موصلات جاك |
|
معلومات تفصيلية |
|||
| يكتب: | RJ45، الرؤوس وأوعية PCB | لون LED: | أخضر / أصفر |
|---|---|---|---|
| تصفيح: | الذهب الطلاء g/fu | المواد السكنية: | بوليستر PA46 |
| نمط مزلاج: | قياسي | مزلاج: | TAB-Up |
| فلتر: | بدون فلتر | خيار الصمام: | مع LED |
| سرعة الأداء: | 10/100/1000/10G BASE-T | عدد المواقف: | 8 |
| محطات لكل ميناء: | 8 | مادة الدرع: | سبائك النحاس مطلية مسبقًا بالنيكل |
| الاتصال التزاوج الطلاء: | الذهب g/fu | اتصل بالمواد الأساسية: | الفوسفور البرونز |
| درجة حرارة التشغيل: | -40 ℃ ~ 85 ℃ | ||
| إبراز: | RJ45 connector with LED,PCB mount RJ45 connector,8P8C RJ45 connector green yellow,PCB mount RJ45 connector,8P8C RJ45 connector green yellow |
||
منتوج وصف

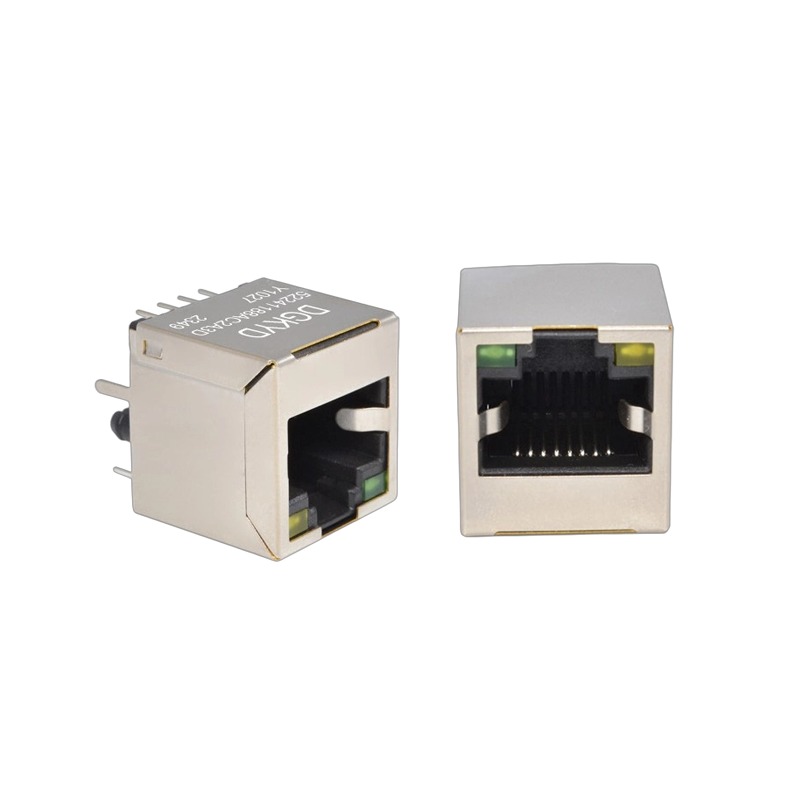

This 180 degree direct insertion RJ45 connector (8P8C) features LED lights and is designed for network interface applications. The part number is DGKYD52241188AC2A3DY1027.
| Part Number | DGKYD52241188AC2A3DY1027 |
|---|---|
| Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China |
| Certification | IATF16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS |
| Product Type | Connector-Modular |
| Connector Style | Jack |
| Jack Type | RJ45 |
| Connector Type | Modular Jack |
| Latch Style | Standard |
| Latch | TAB-UP |
| Filter | Without Filter |
| LED Option | With LED |
| LED Color | Green/Yellow |
| Panel Stops | With Panel Stops |
| Shielded | Yes |
| Applies To | Printed Circuit Board |
| Performance Speed | 10/100/1000/10G BASE-T |
| Grounding Options | Panel Ground and PCB Ground |
| Port Configuration | Single ports |
| Number of Positions | 8 |
| Jack Configuration | 1 x 1 |
| Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel |
| PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold G/Fu |
| Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel |
| PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit |
| Board Lock | With/Without Board Lock |
| Housing Material | PA46 Polyester |
| Housing Color | Black |
| Housing Material Temperature | Standard |
| UL Flammability Rating | UL 94V-0 |
